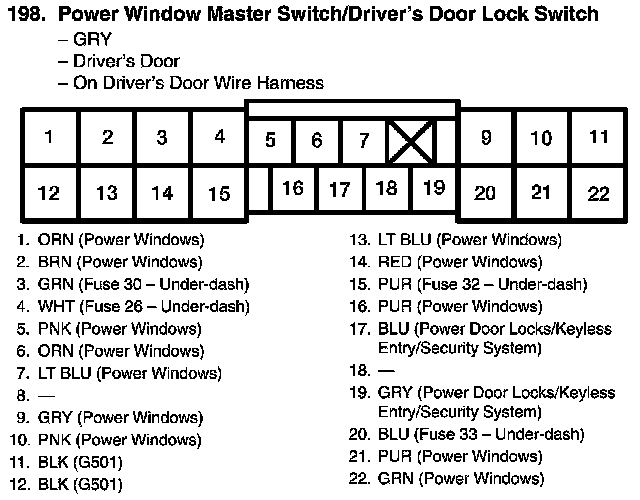

View 198 Power Window Master Switch/Driver's Door Lock Switch Connector View
View 198 Power Window Master Switch/Driver's Door Lock Switch Connector View
