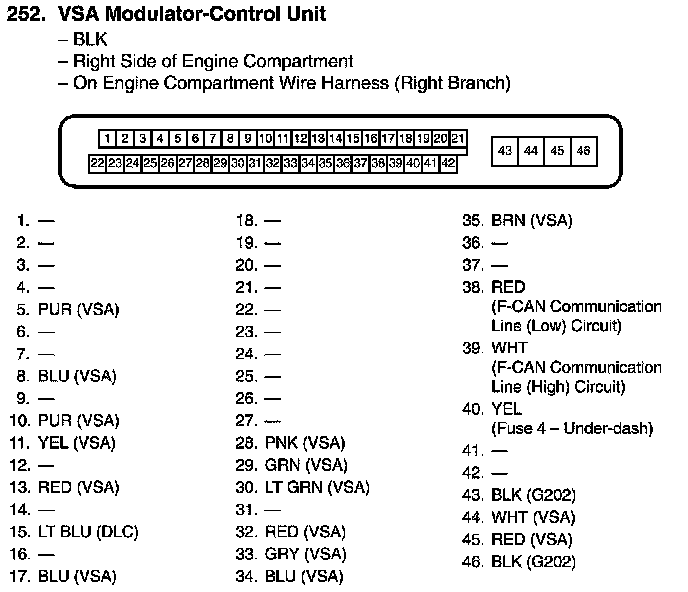

View 252 VSA Modulator-Control Unit Connector View
View 252 VSA Modulator-Control Unit Connector View
