Home
>>
Honda Truck
>>
2008
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Pressure Module
>>
TPMS Control Unit
TPMS Control Unit

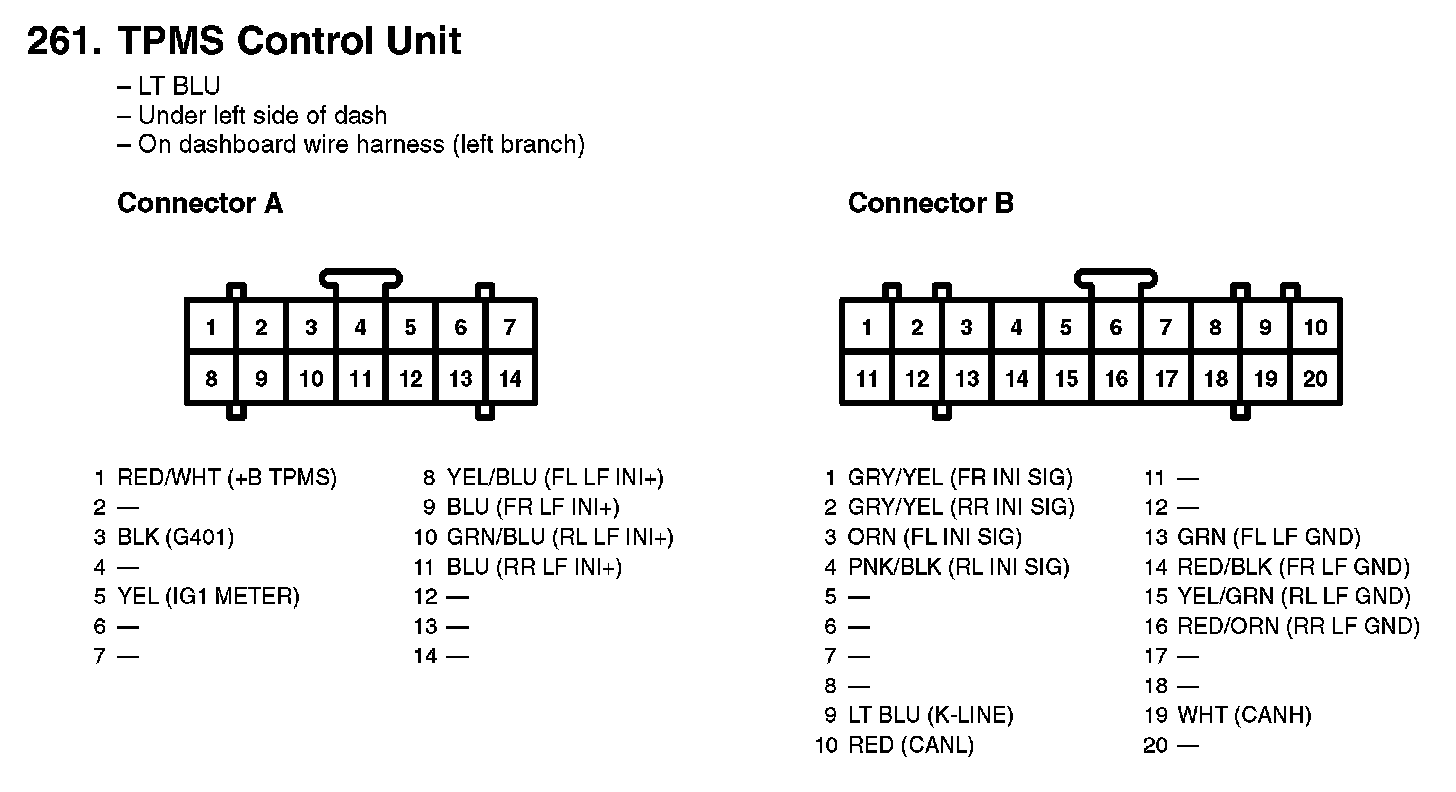

261. TPMS Control Unit:
