Honda Truck
>>
2008
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
Control Unit, Differential Lock

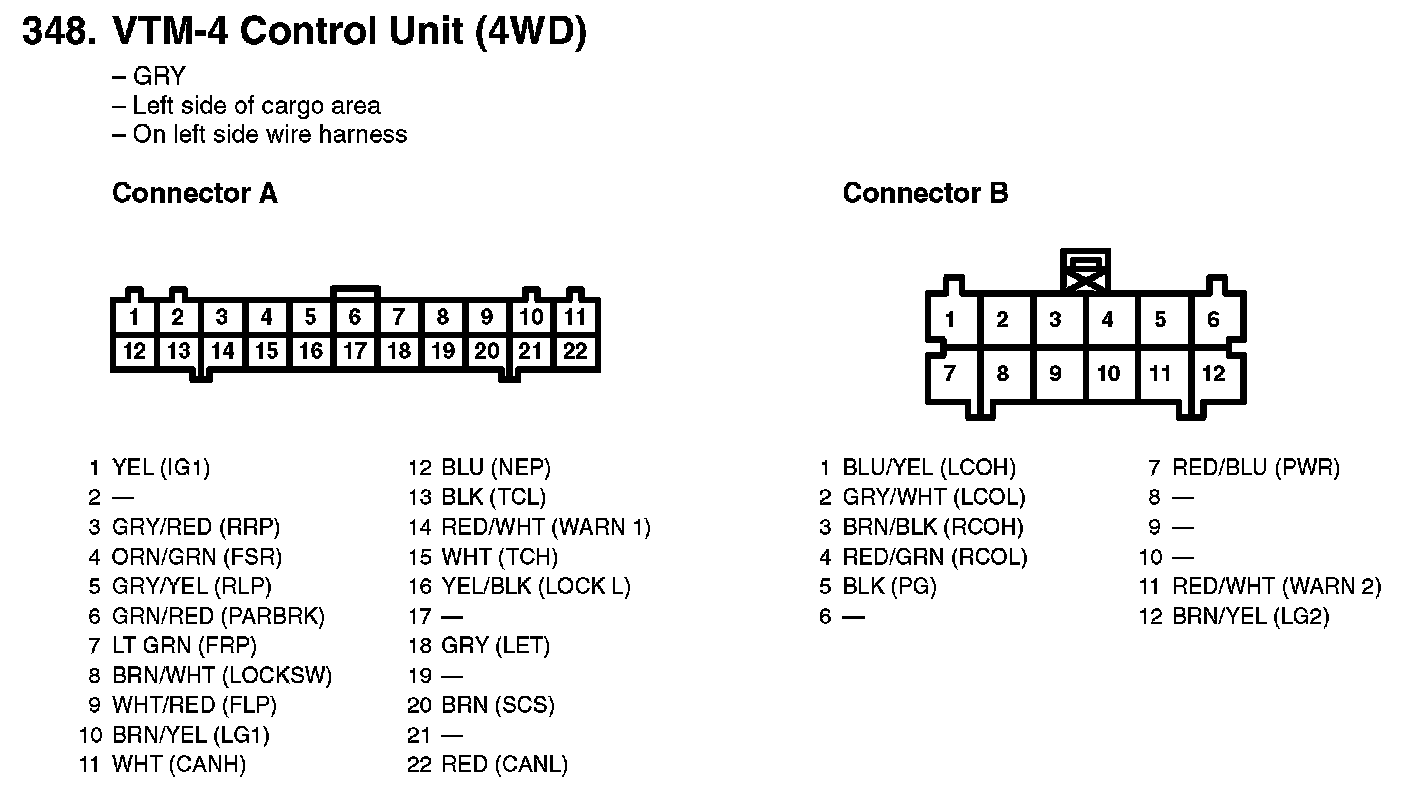

348. VTM-4 Control Unit (4WD):
