Honda Truck
>>
2008
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Monitoring System
>>
Tire Pressure Module
Tire Pressure Module

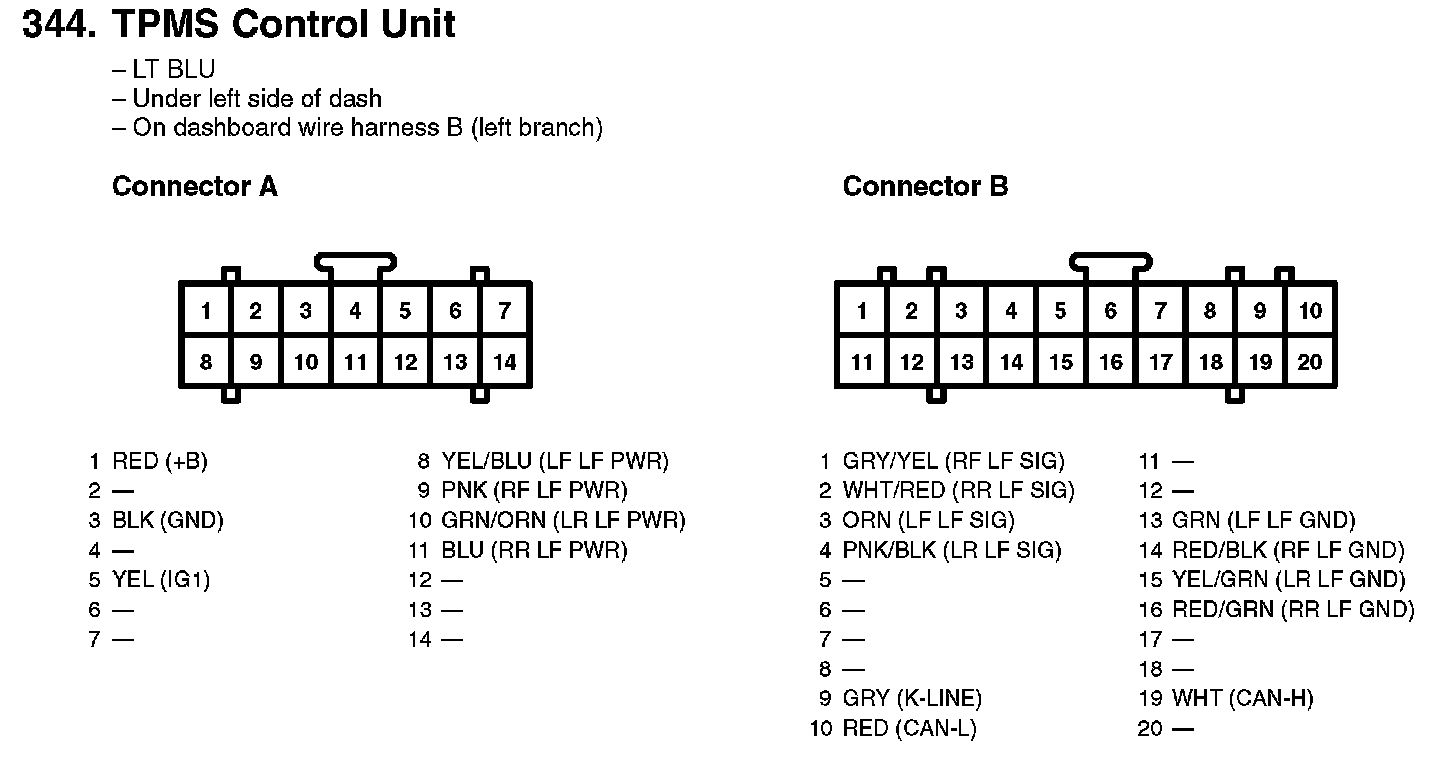

344. TPMS Control Unit:
