Honda Truck
>>
2008
>>
Element 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram

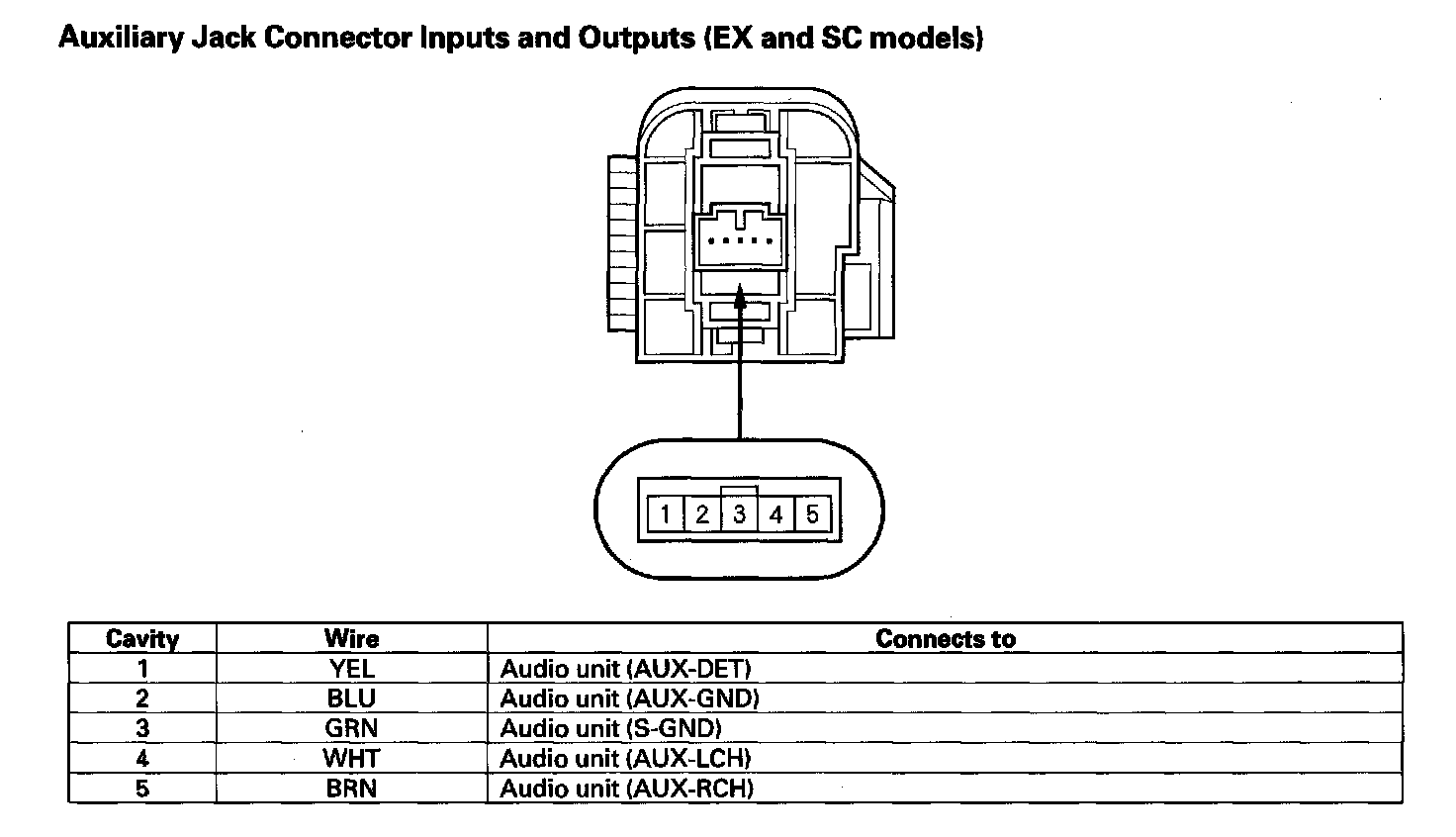

Auxiliary Jack Connector Inputs And Outputs (EX And SC Models):
