Honda Truck
>>
2006
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
Transmission Position Sensor/Switch: Diagrams

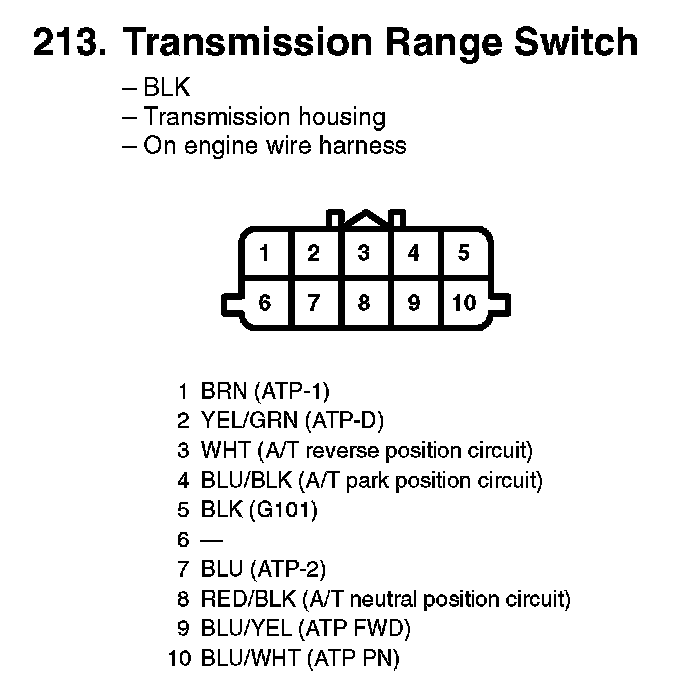

213. Transmission Range Switch:
