Home >> Honda Truck >> 2006 >> Pilot 4WD V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Engine >> Engine Mount Control Unit >> Locations

Engine Mount Control Unit: Locations

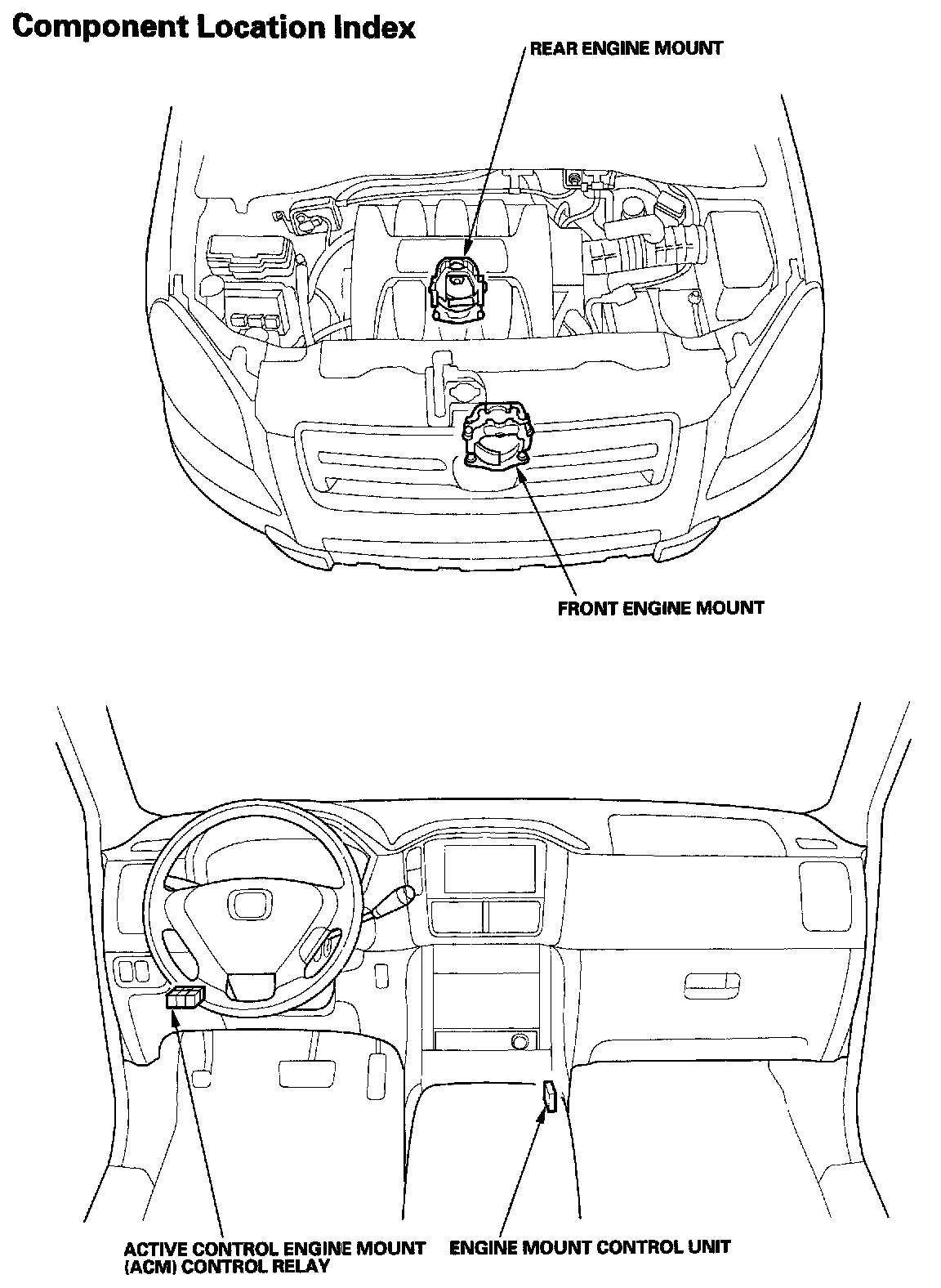

Active Control Engine Mount (ACM) System - Component Location Index:
