Honda Truck
>>
2006
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>
Navigation Display
Navigation Display

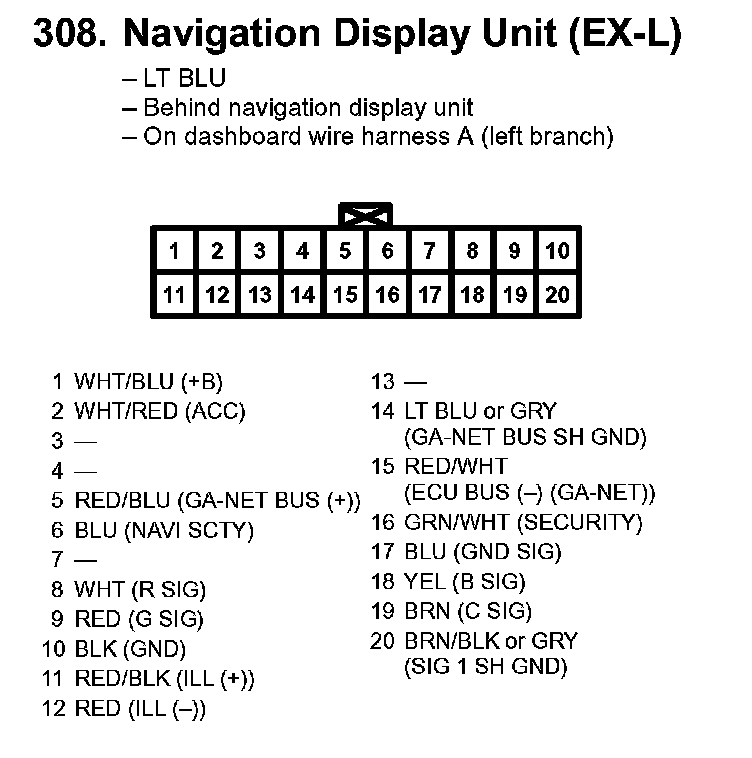

308. Navigation Display Unit (EX-L):
