Honda Truck
>>
2006
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Mount Control Unit
Engine Mount Control Unit

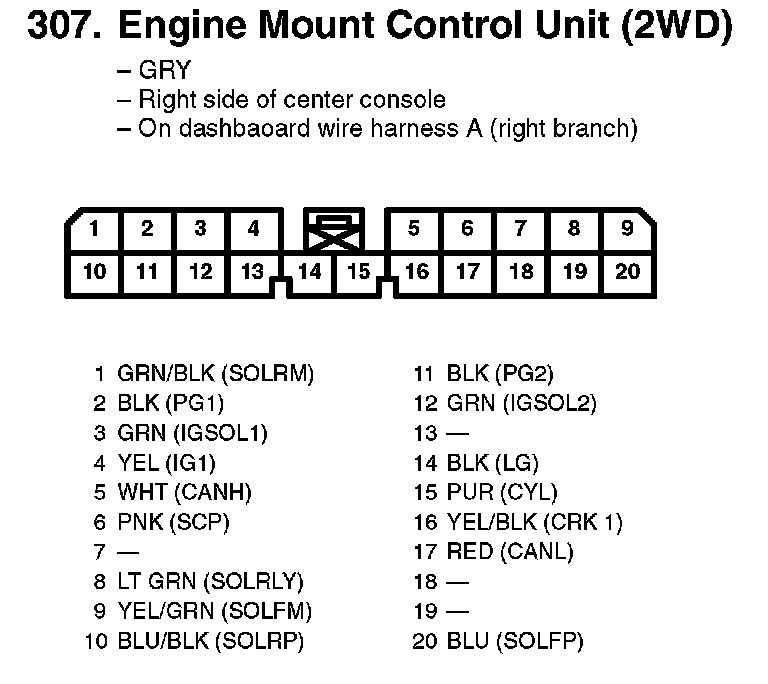

307. Engine Mount Control Unit:
