Engine Mount Control Actuator
Engine Mount Control Actuator

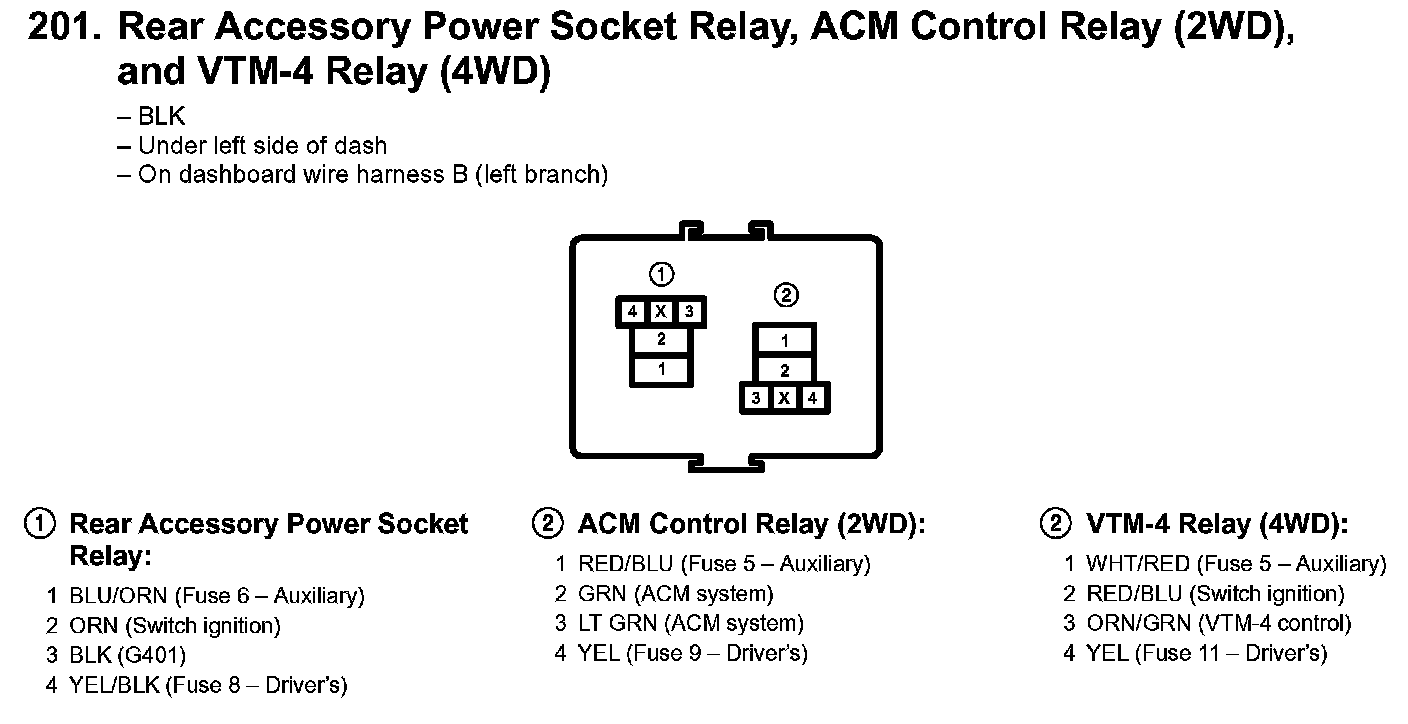

201. Rear Accessory Power Socket Relay, ACM Control Relay, And VTM-4 Relay:
