Honda Truck
>>
2006
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Console
Console

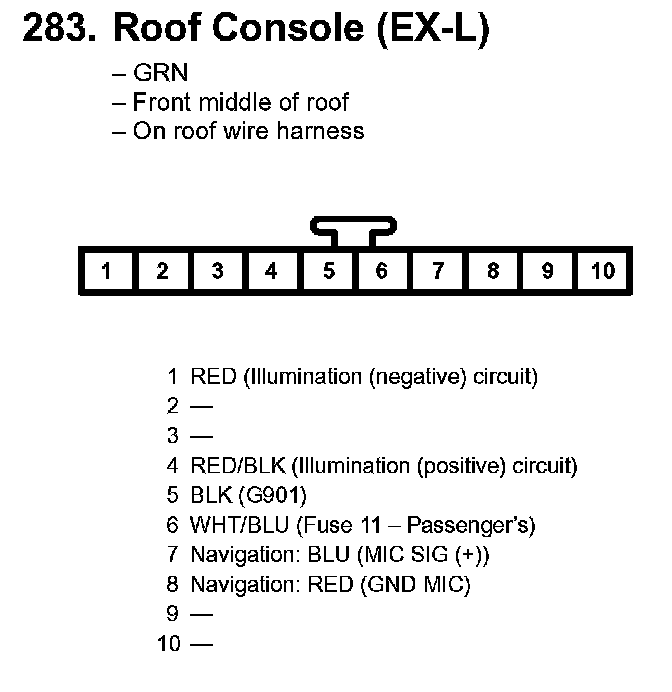

283. Roof Console (EX-L):
