Home >> Honda Truck >> 2006 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Locations >> Connector Locations

Connector Locations

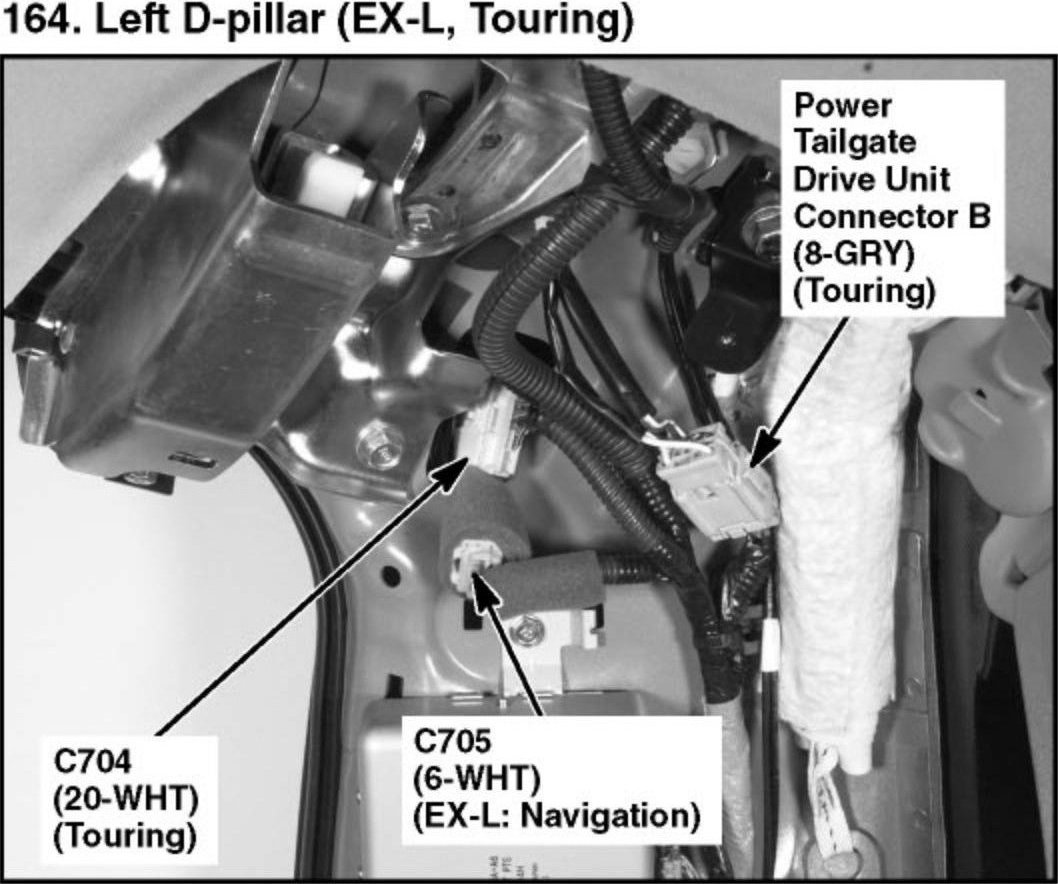

164. Left D-pillar (EX-L, Touring):

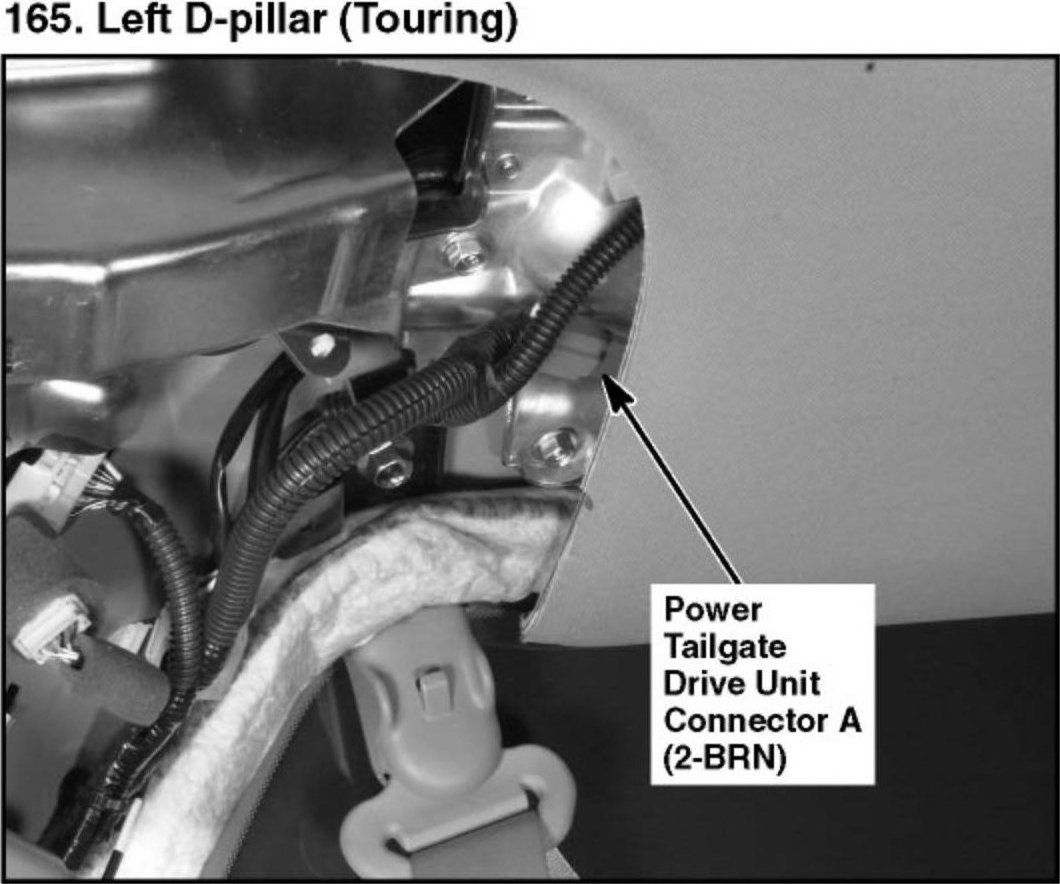

165. Left D-pillar (Touring):
