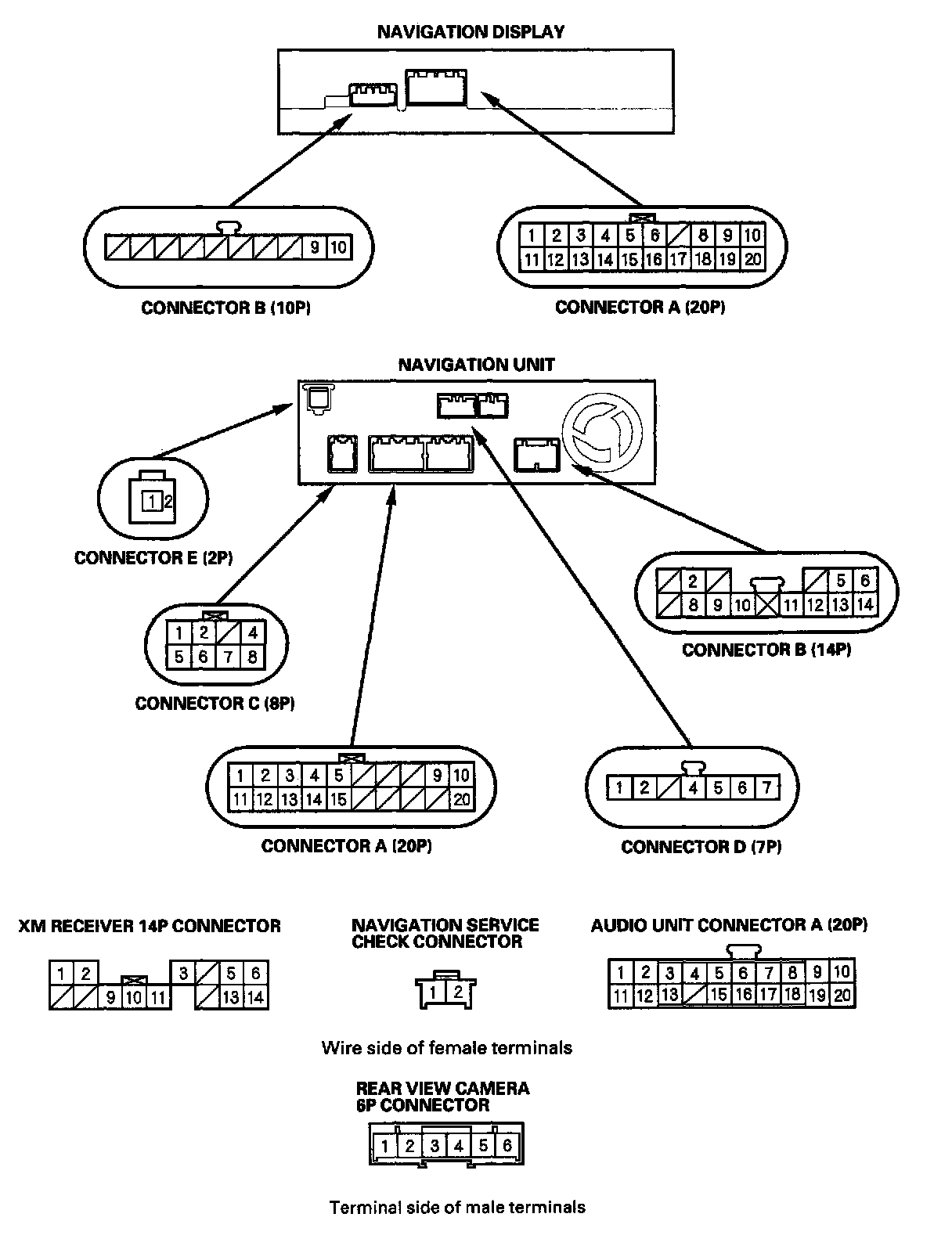

Connector Views
>>
Navigation System
>>
System Diagram
System Diagram

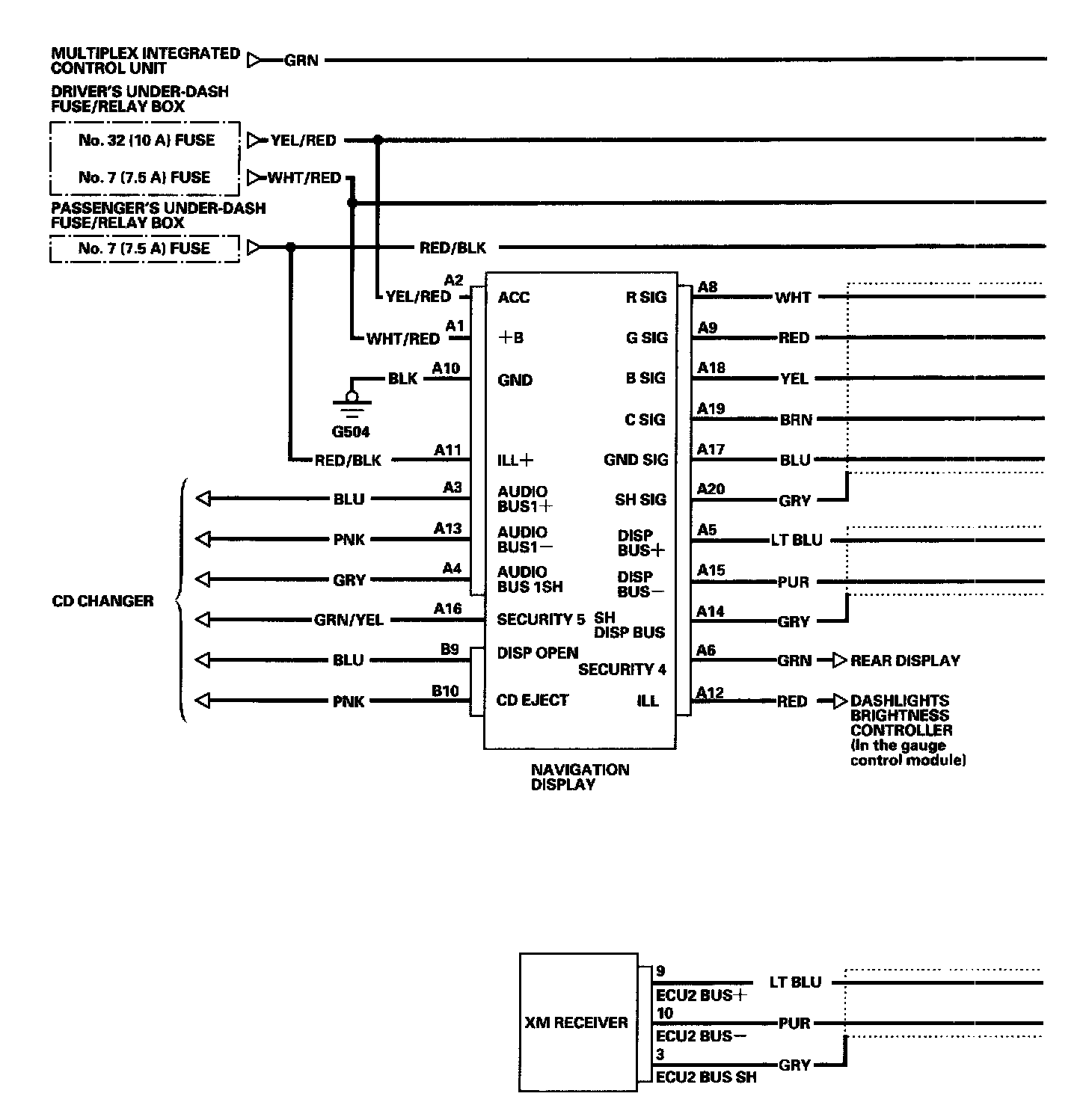

Navigation System - Circuit Diagram:

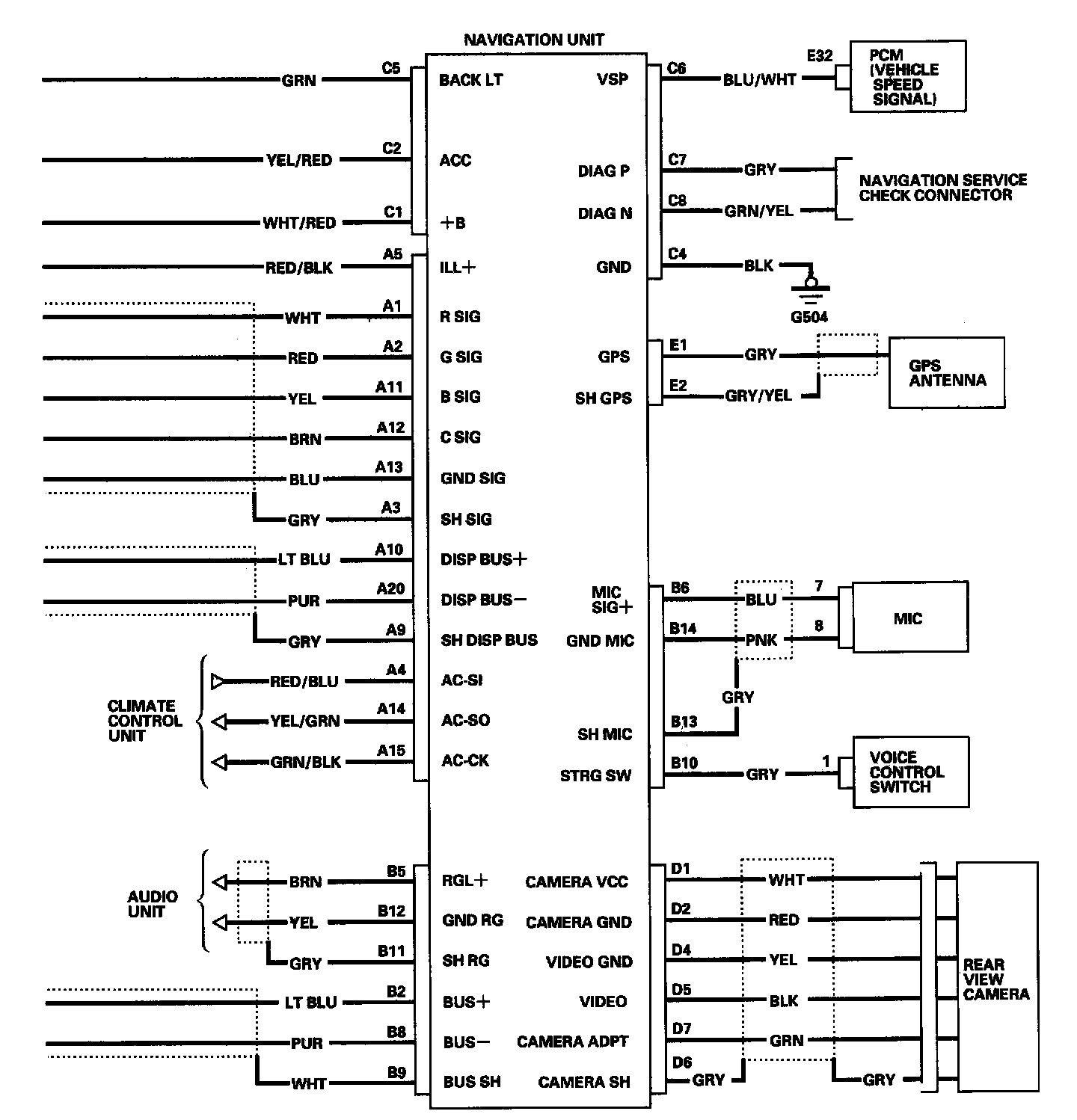

Navigation System - Circuit Diagram:
Navigation System - Circuit Diagram:
