Metro L4-079 1.3L VIN 9 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>
C2
C2

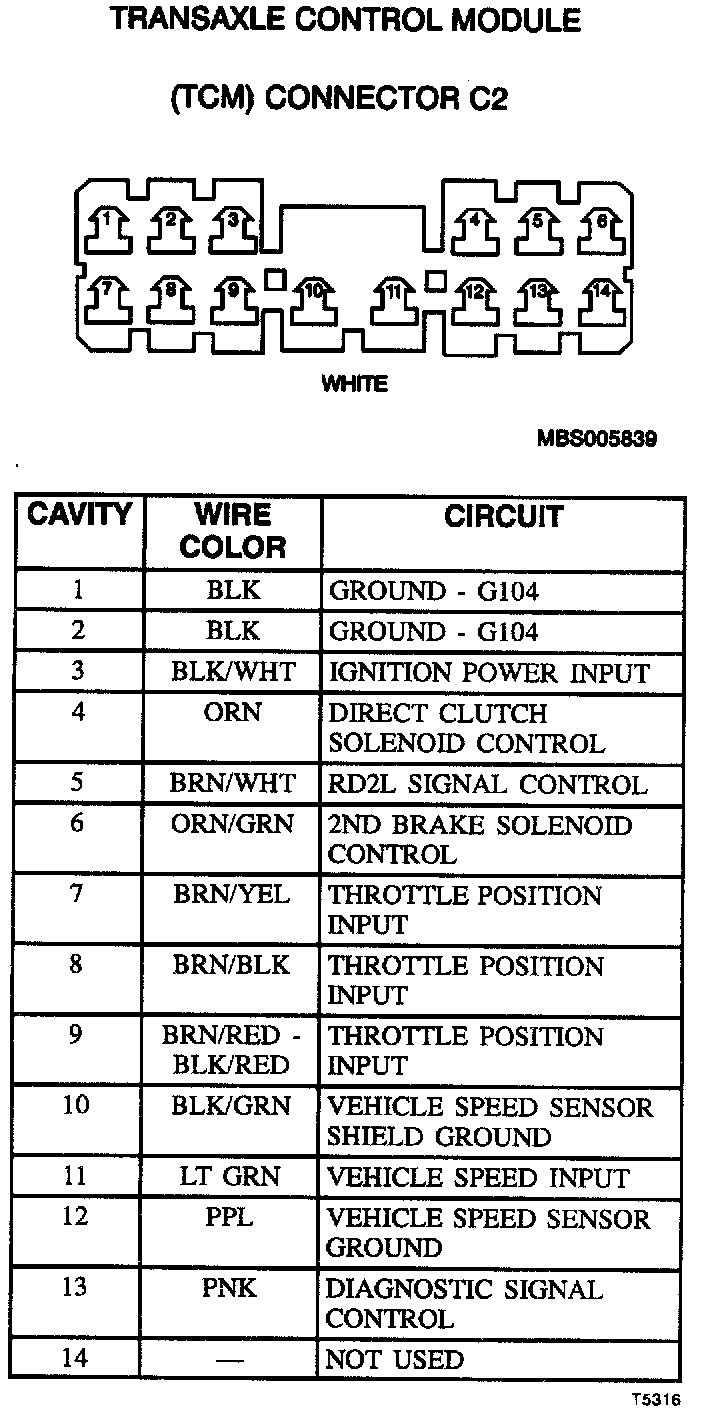

Transaxle Control Module (TCM) Connector C2:
