Home
>>
Geo
>>
1995
>>
Metro L3-061 1.0L VIN 6 TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
>>

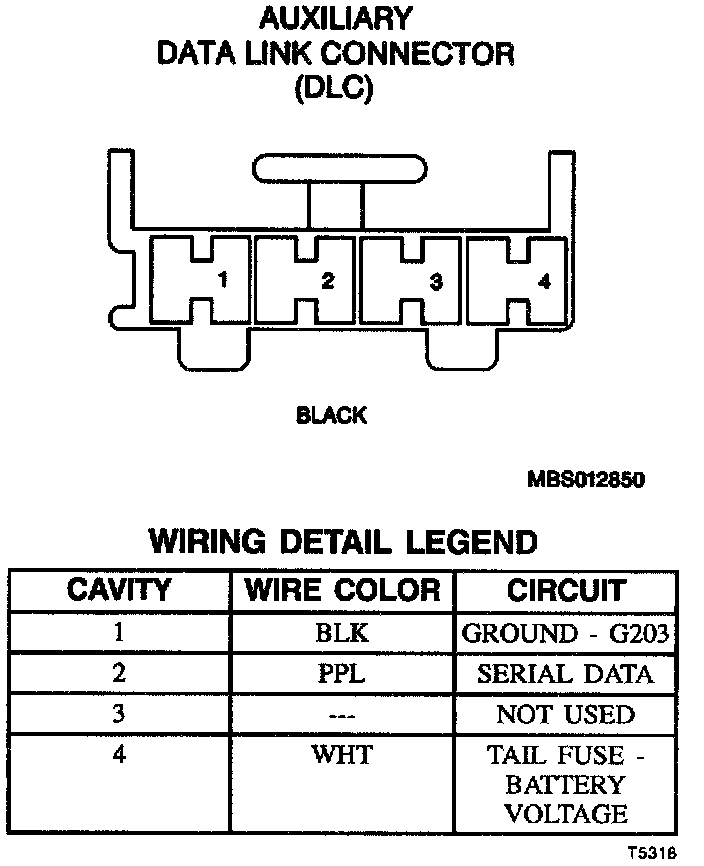

Auxiliary Data Link Connector (DLC)
Auxiliary Data Link Connector (DLC)
Auxiliary Data Link Connector (DLC):
