Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

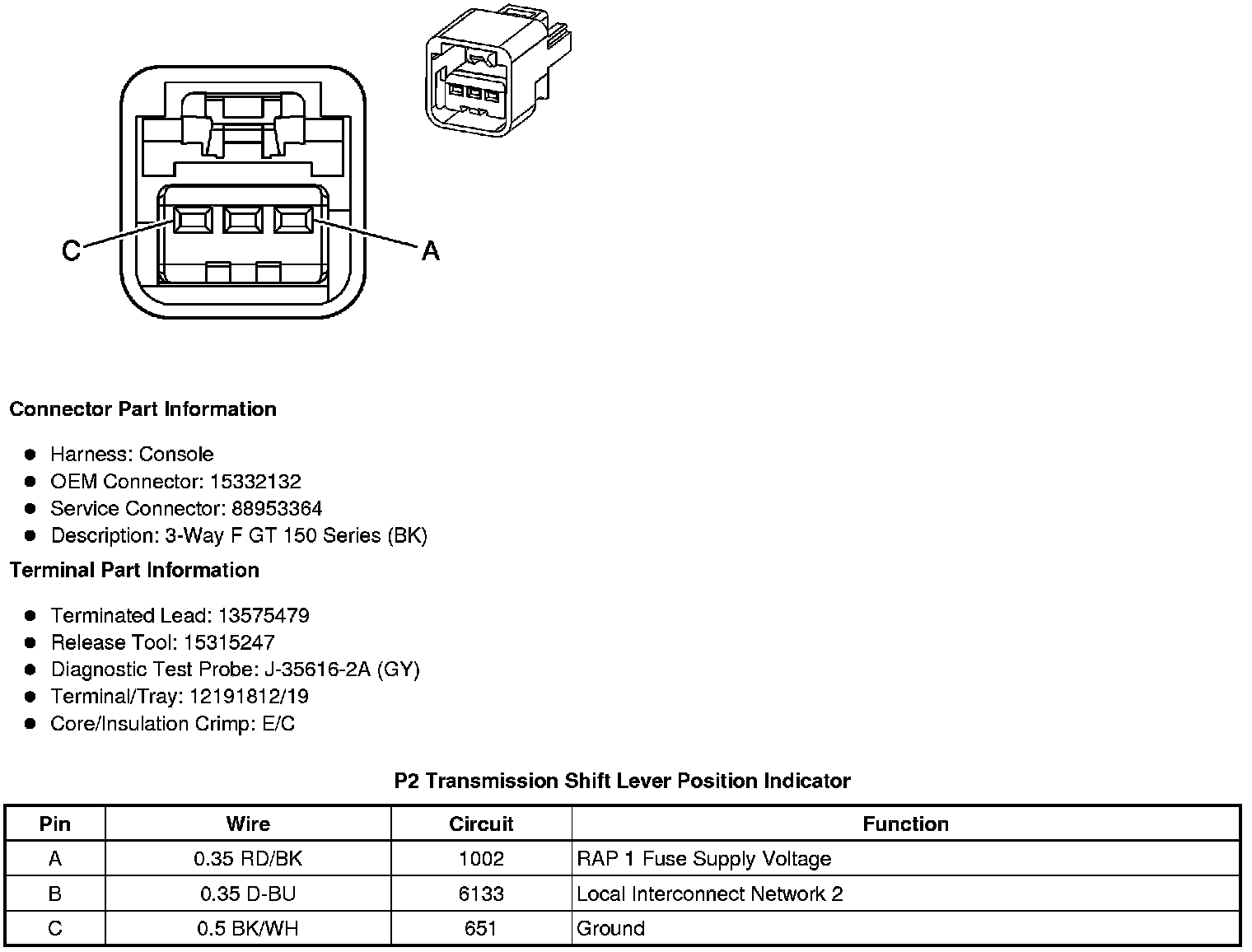

P2 Transmission Shift Lever Position Indicator
