Oil Pressure Sensor: Diagrams

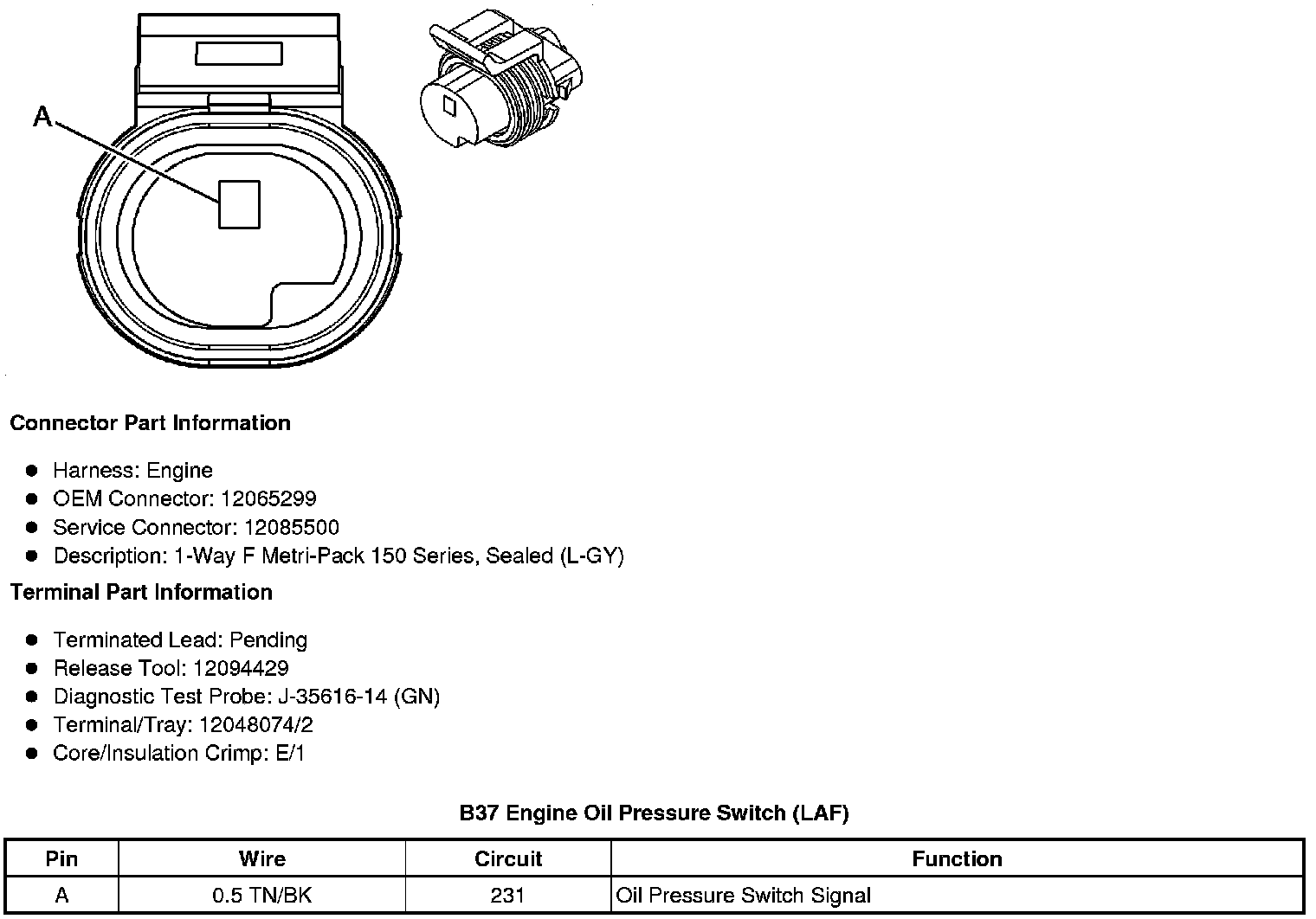

B37 Engine Oil Pressure Switch (LAF)

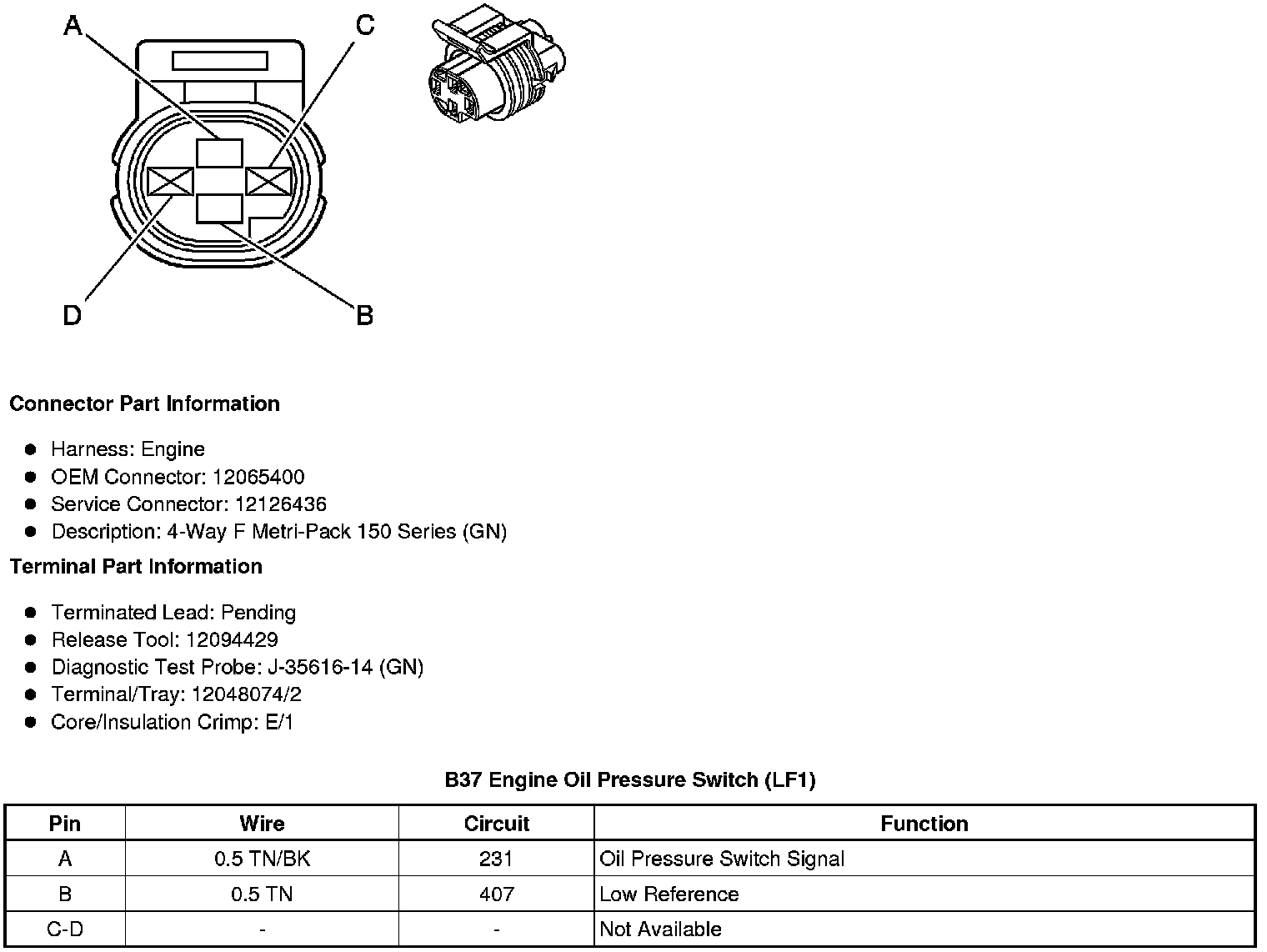

B37 Engine Oil Pressure Switch (LF1)
