GMC Truck
>>
2008
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Lock
Ignition Lock
Component Connector End Views - Continued

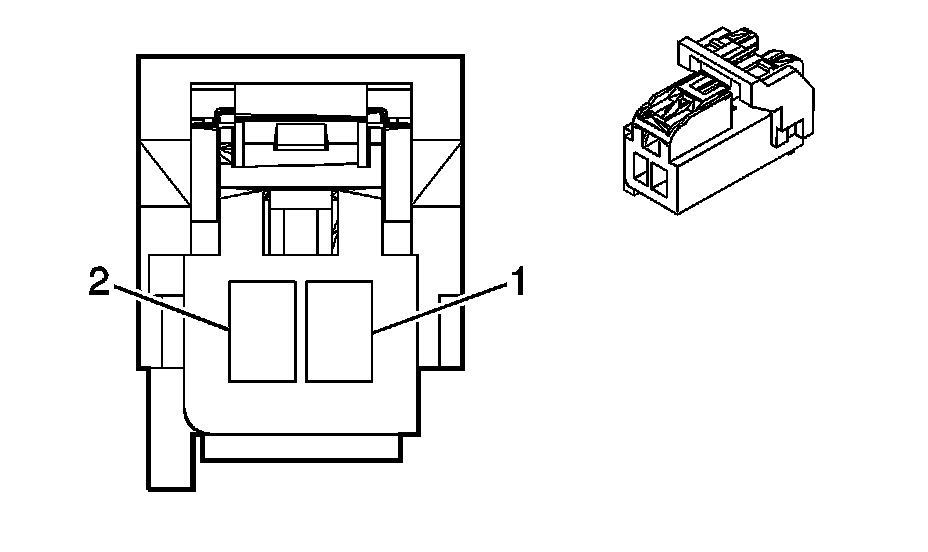

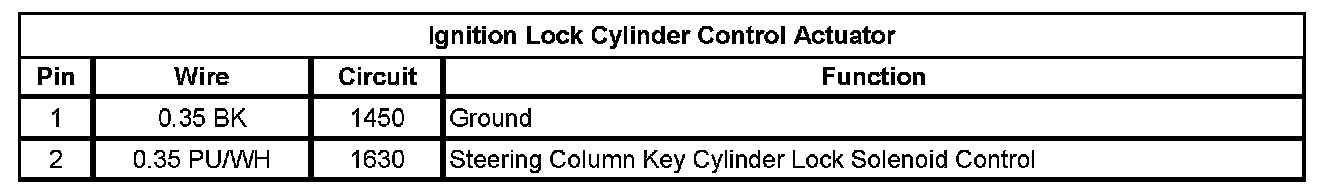

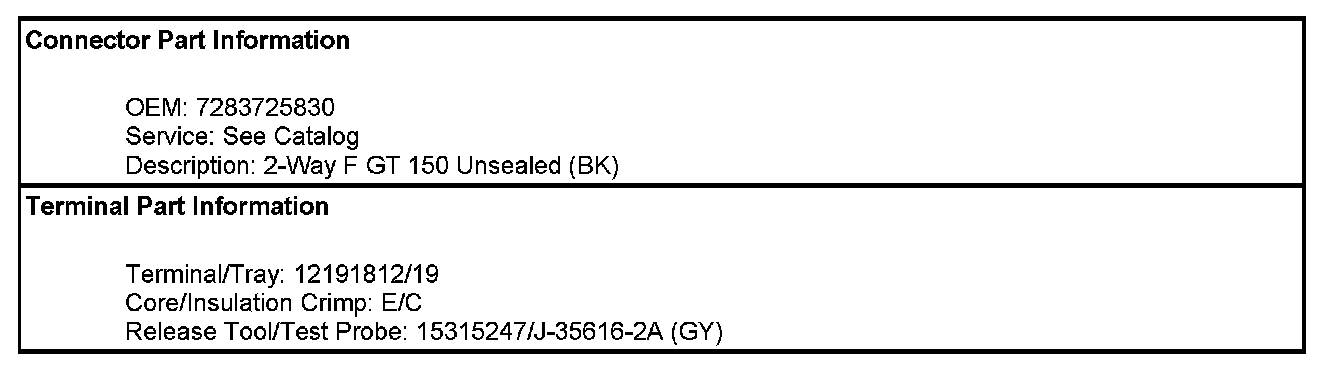

Ignition Lock Cylinder Control Actuator
