Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

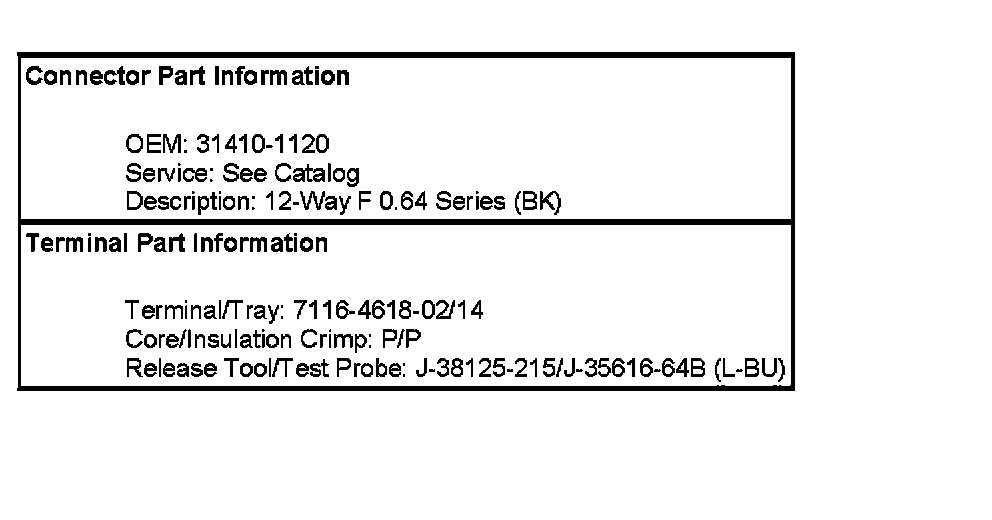

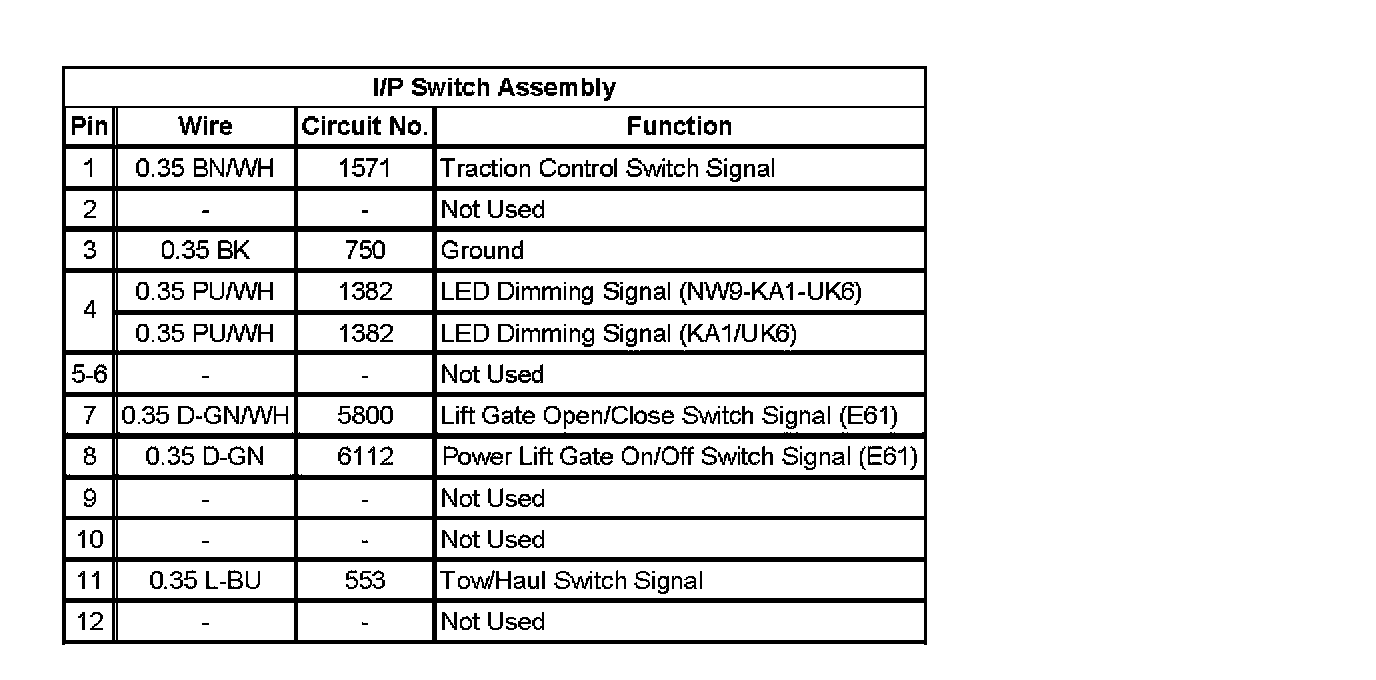

I/P Switch Assembly
I/P Switch Assembly:
