GMC Truck
>>
2007
>>
Acadia AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

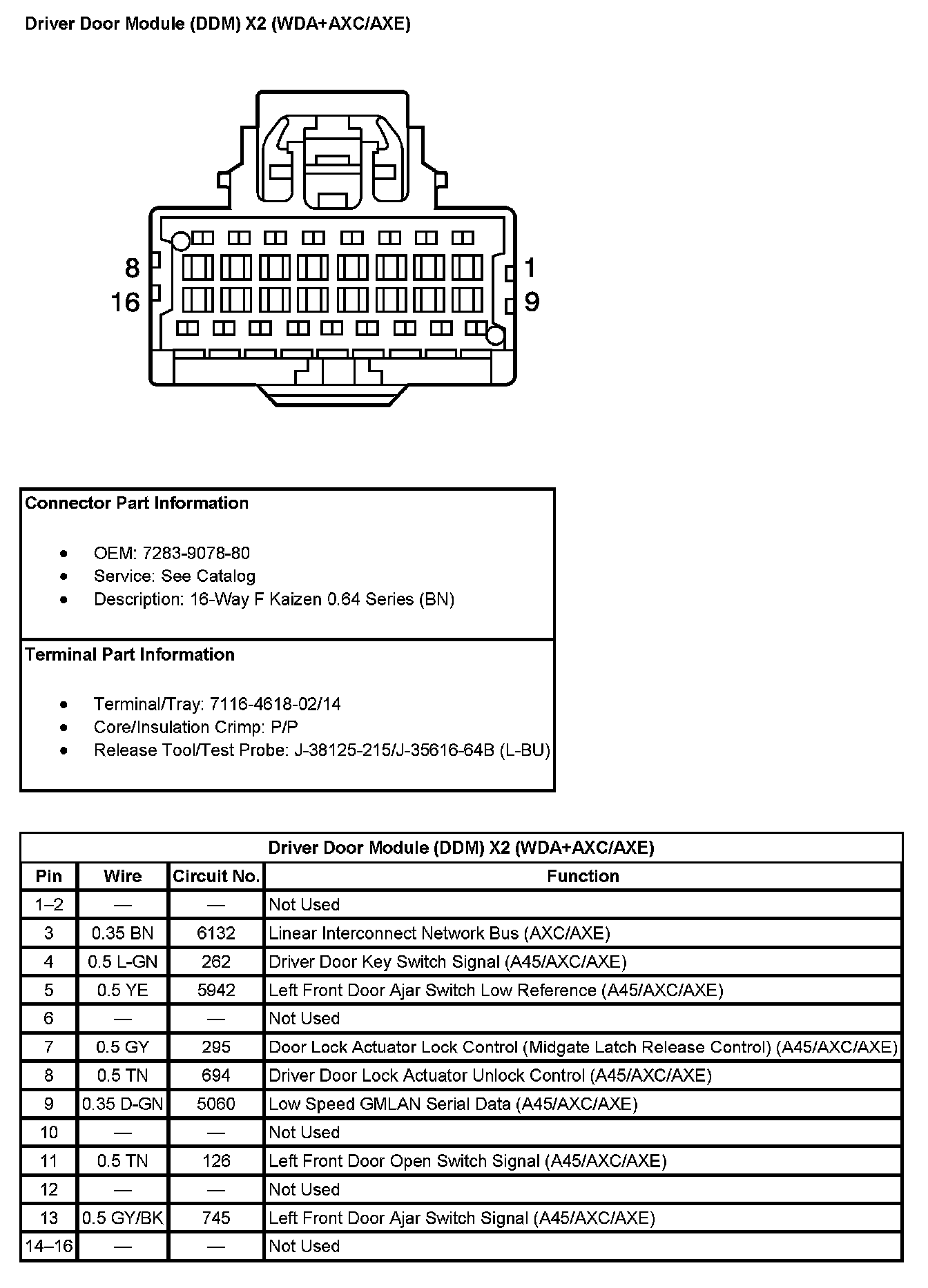

Driver Door Module (DDM) X2 (With RPO Code WDA+AXC/AXE)
Driver Door Module (DDM) X2 (With RPO Code WDA+AXC/AXE)
Driver Door Module (DDM) X2 (With RPO Code WDA+AXC/AXE) Pin 1 To 16:
