GMC Truck
>>
1992
>>
Yukon V8-393 6.5L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Module (TCM)
>>
TCM
TCM

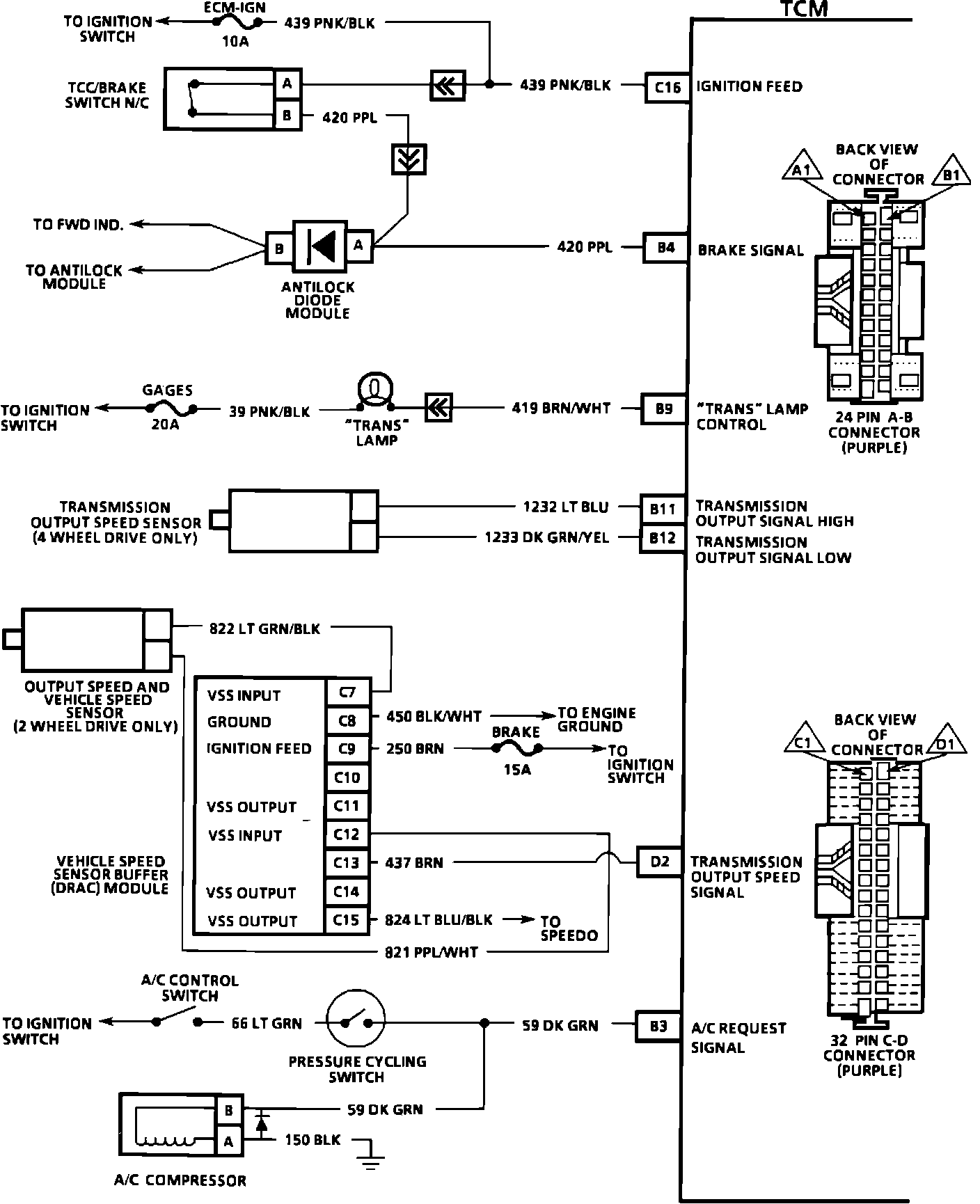

TCM Wiring Diagram:

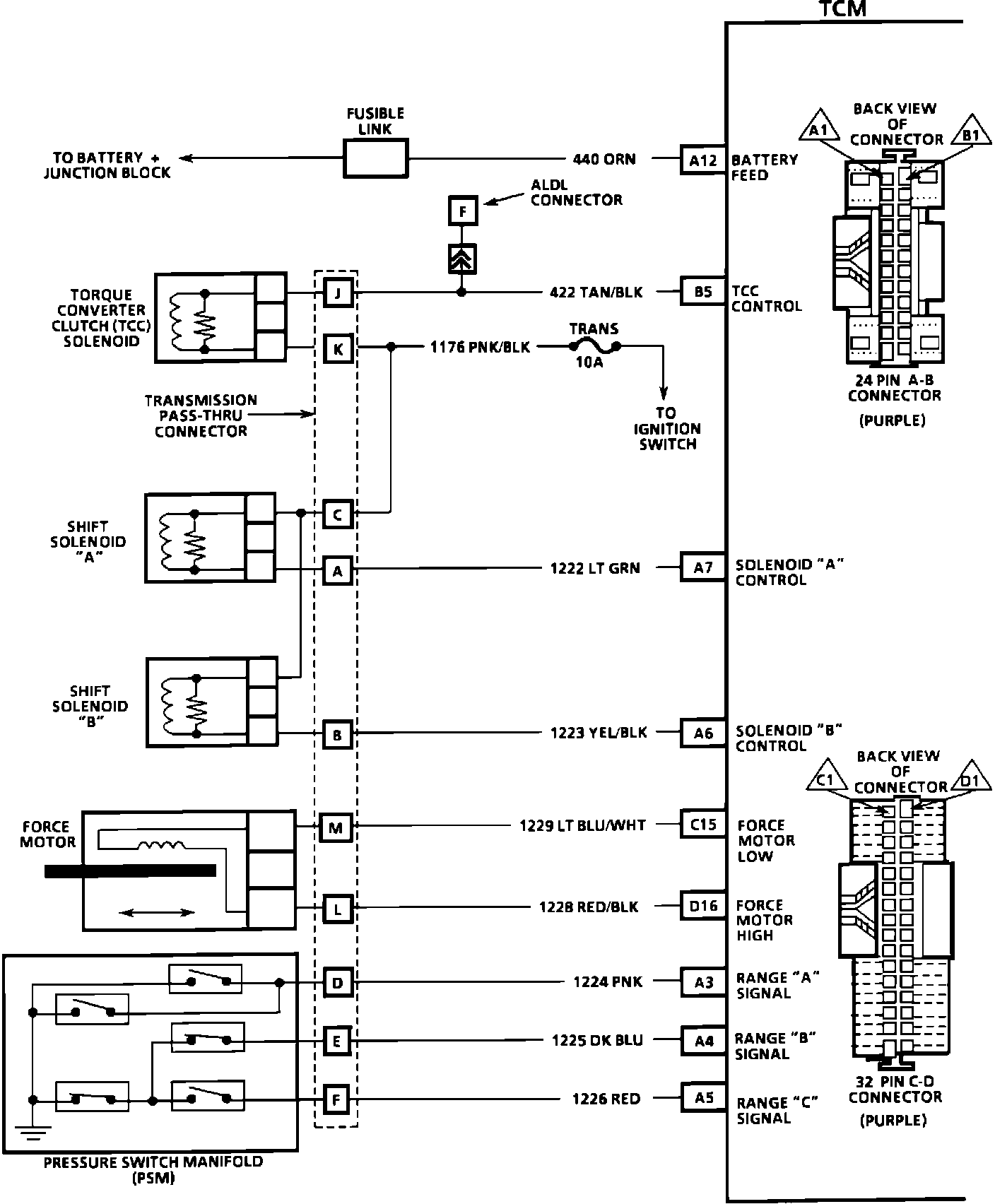

TCM Wiring Diagram:

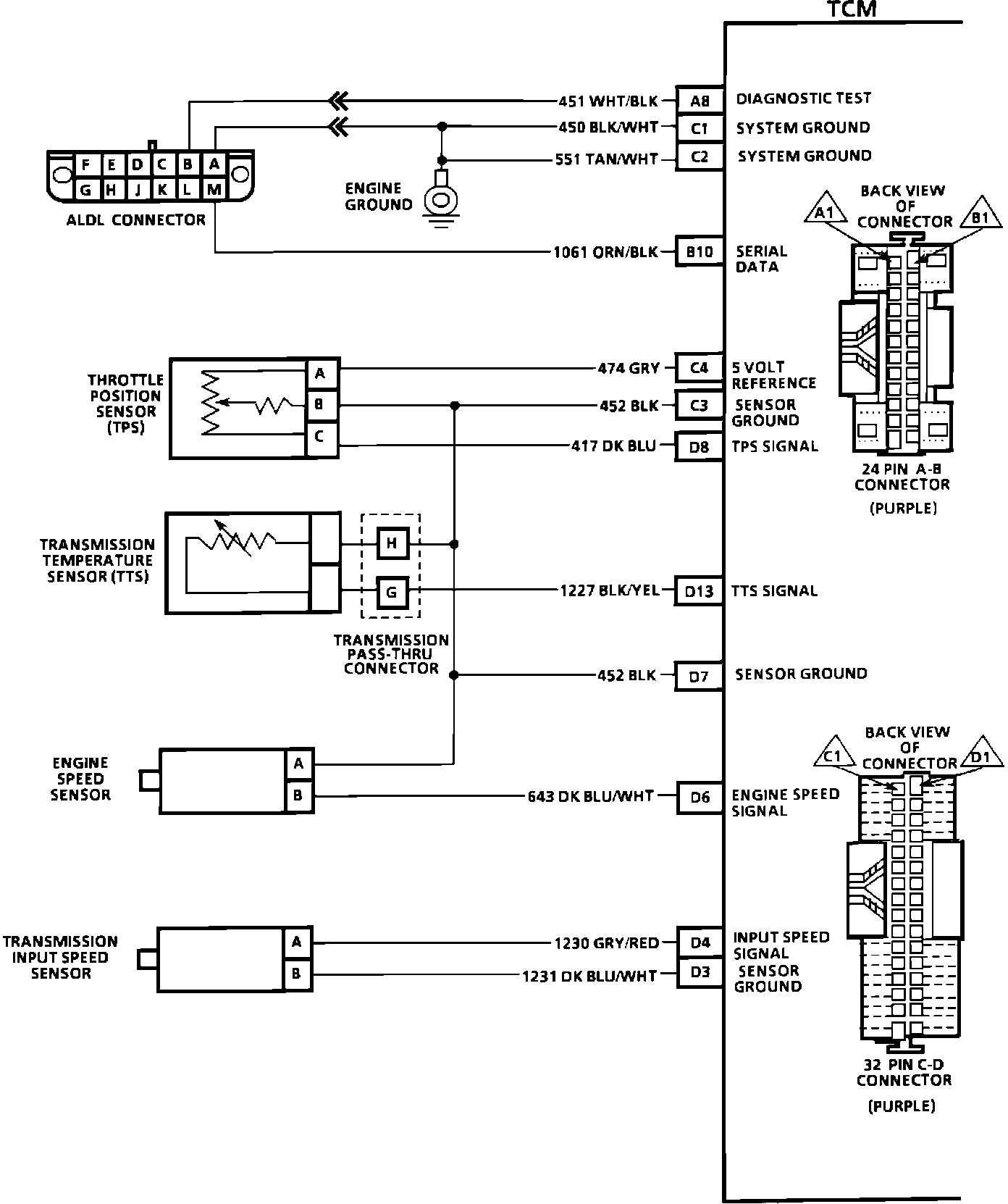

TCM Wiring Diagram:
