GMC Truck
>>
1985
>>
Safari Van M L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
Modules

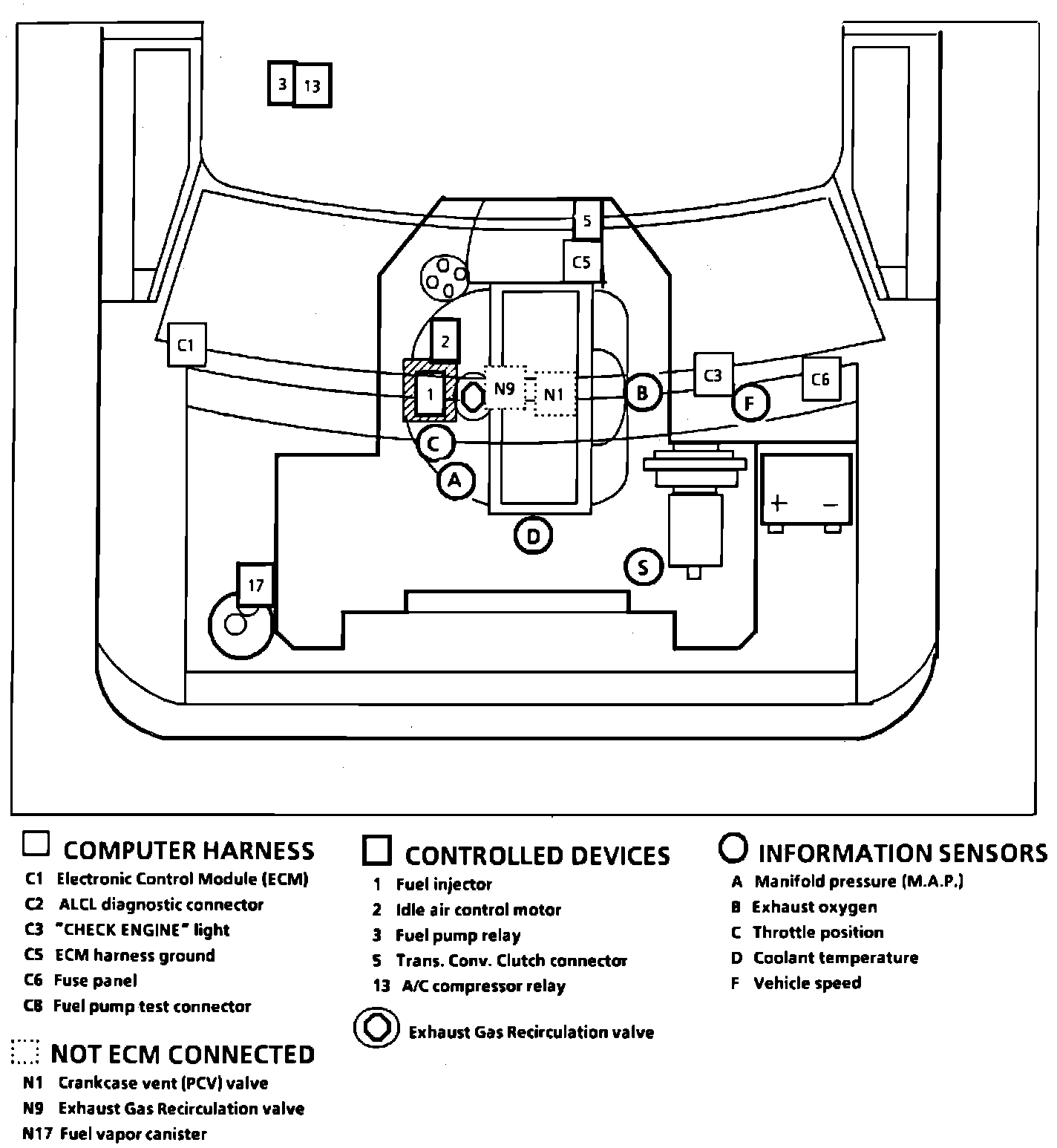

Underhood Components:

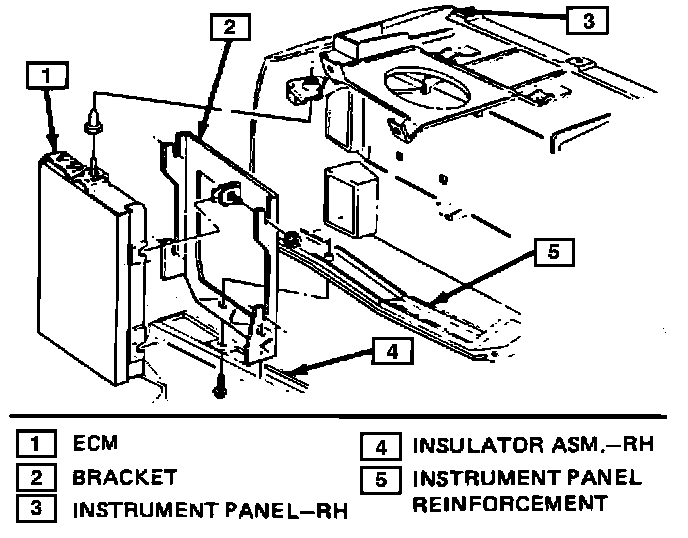

Behind RH Kick Panel:
Behind RH Kick Panel
Applicable to: 2.5L
