Freightliner Truck
>>
2005
>>
Sprinter 2500 L5-2.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heater Core
Heater Core

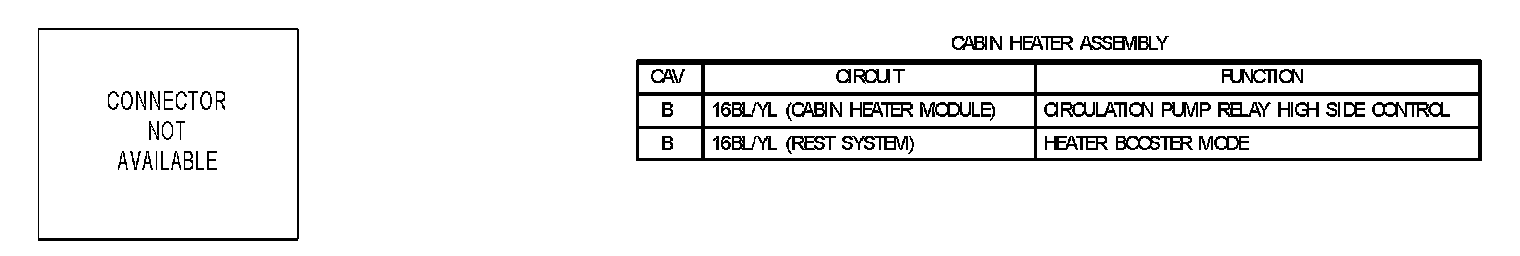

Cabin Heater Assembly:

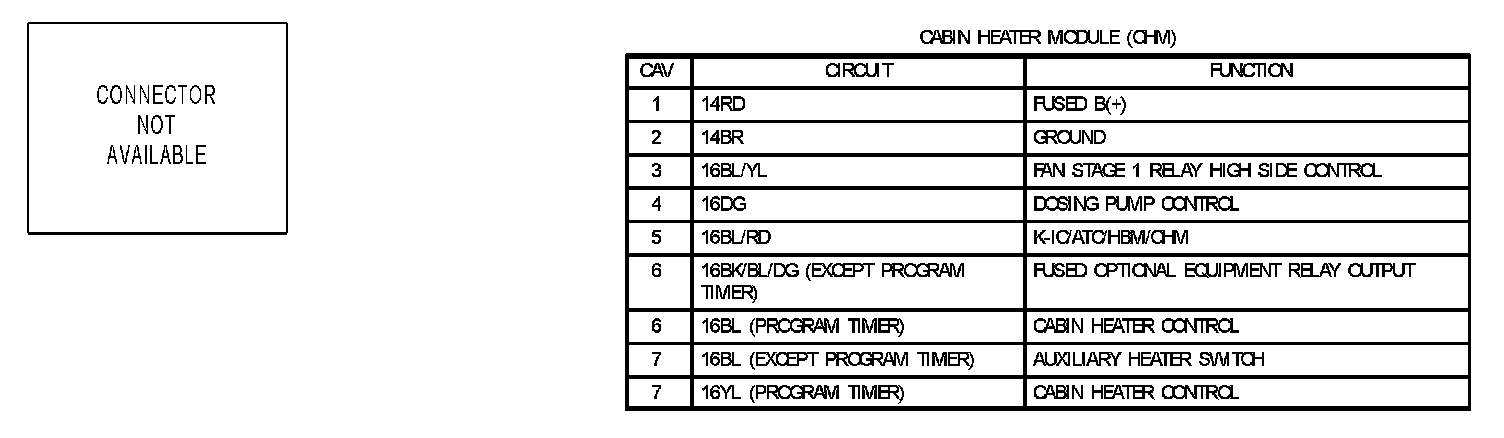

Cabin Heater Module (CHM):
