Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
2008
>>
Crown Victoria V8-4.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Electronic Throttle Actuator
>>
Diagrams
>>

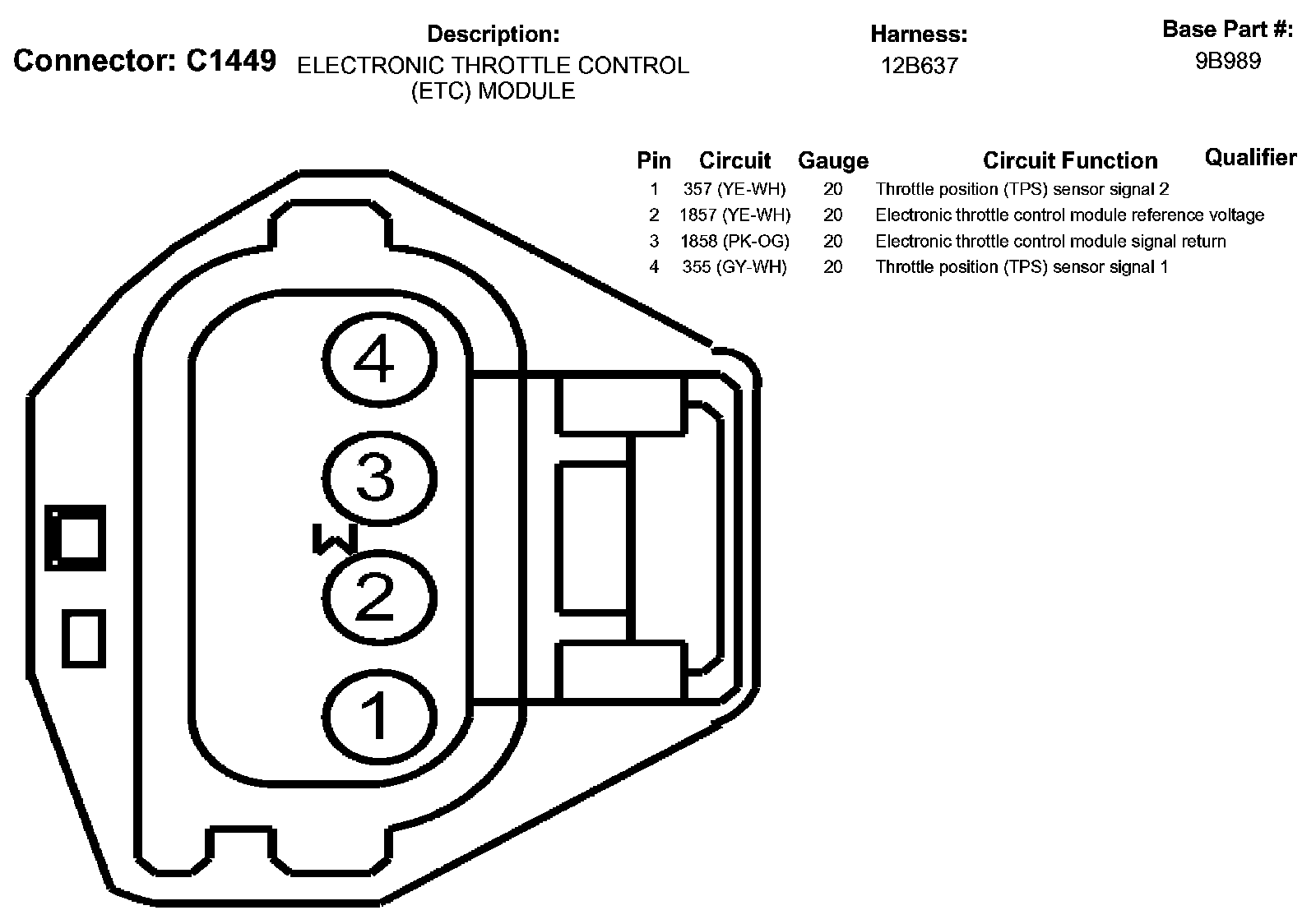

Electronic Throttle Control (ETC) Module
Electronic Throttle Control (ETC) Module
C1449:
