Home >> Ford >> 2002 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Fuse Block

Fuse Block

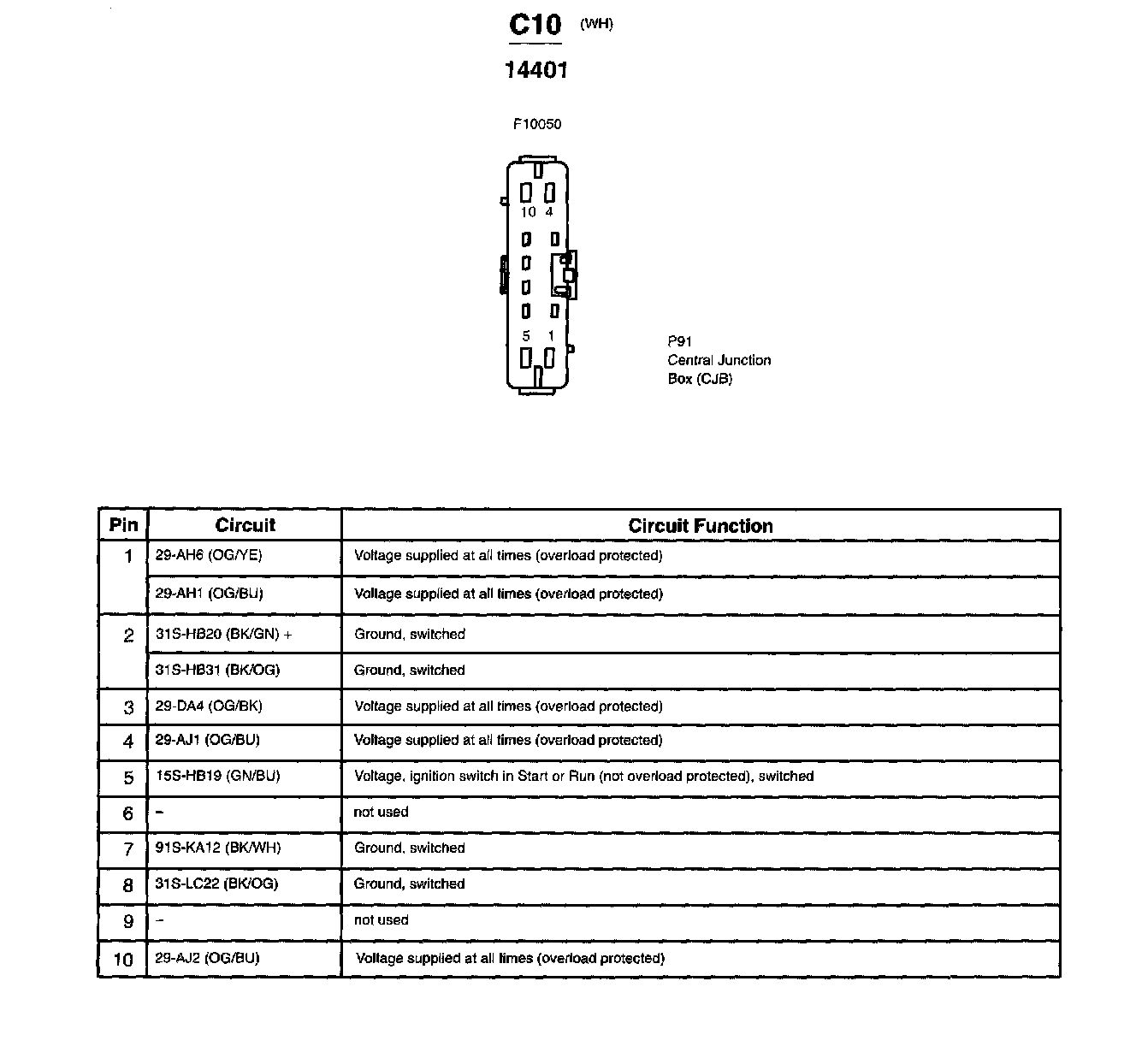

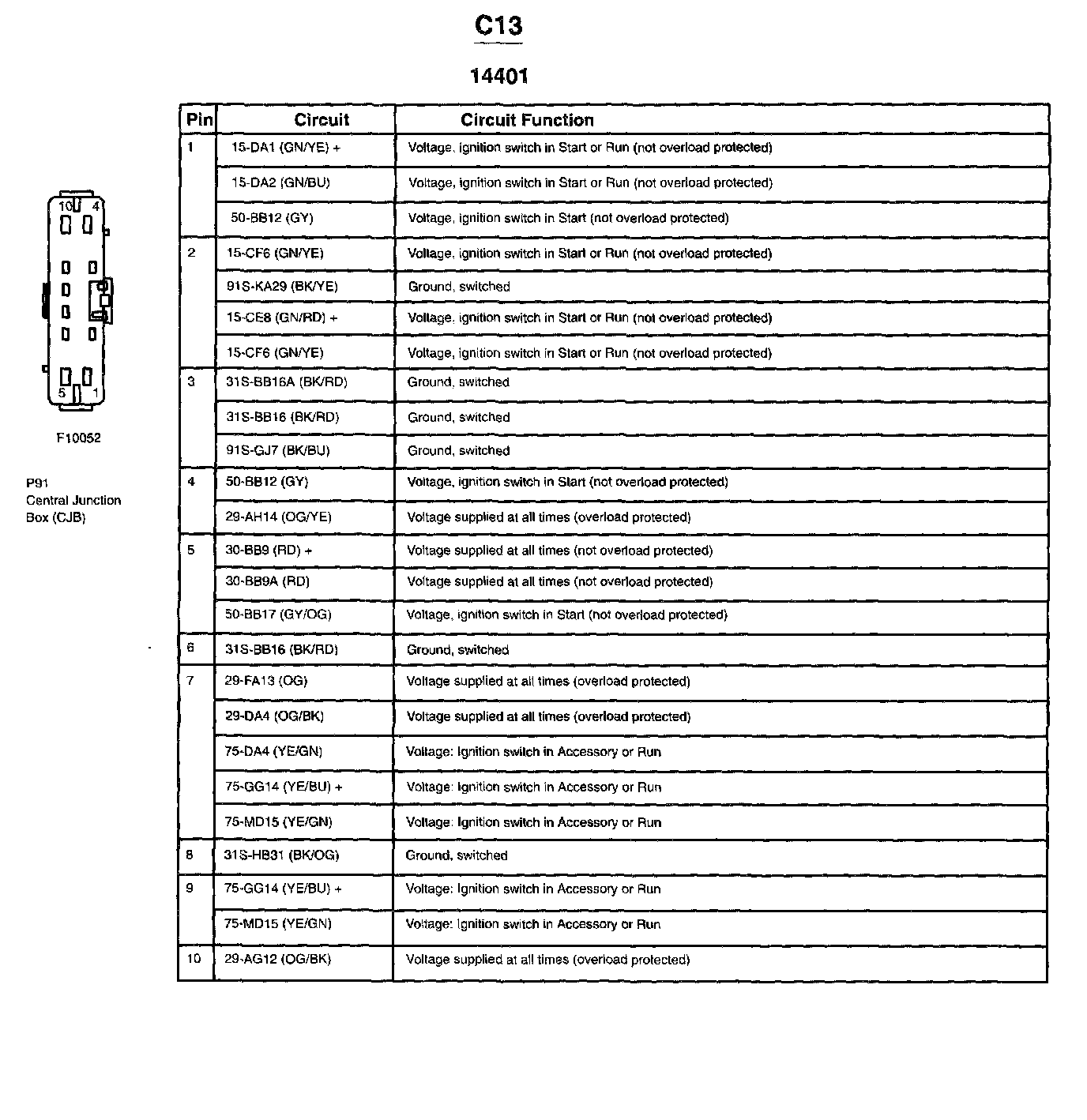

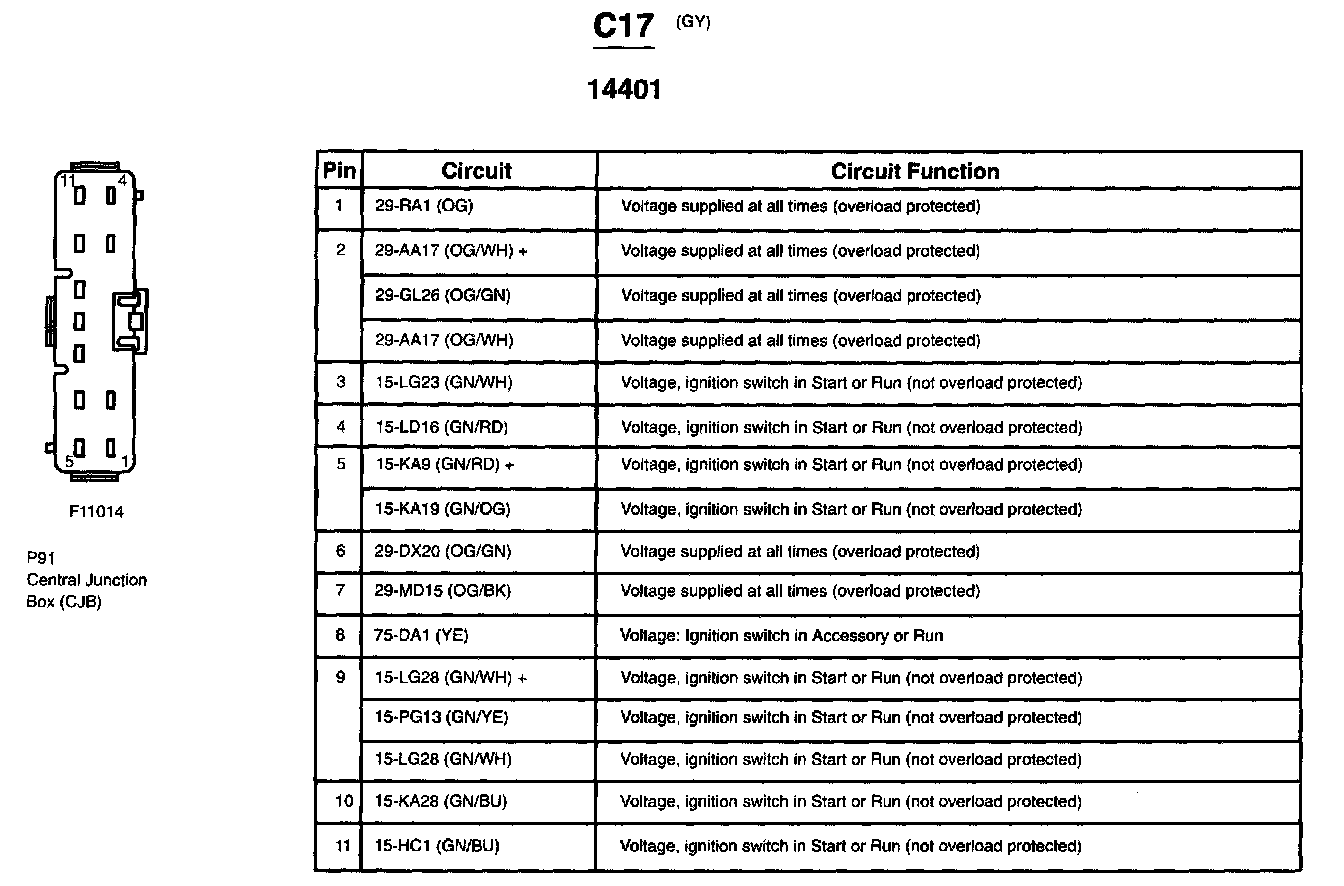

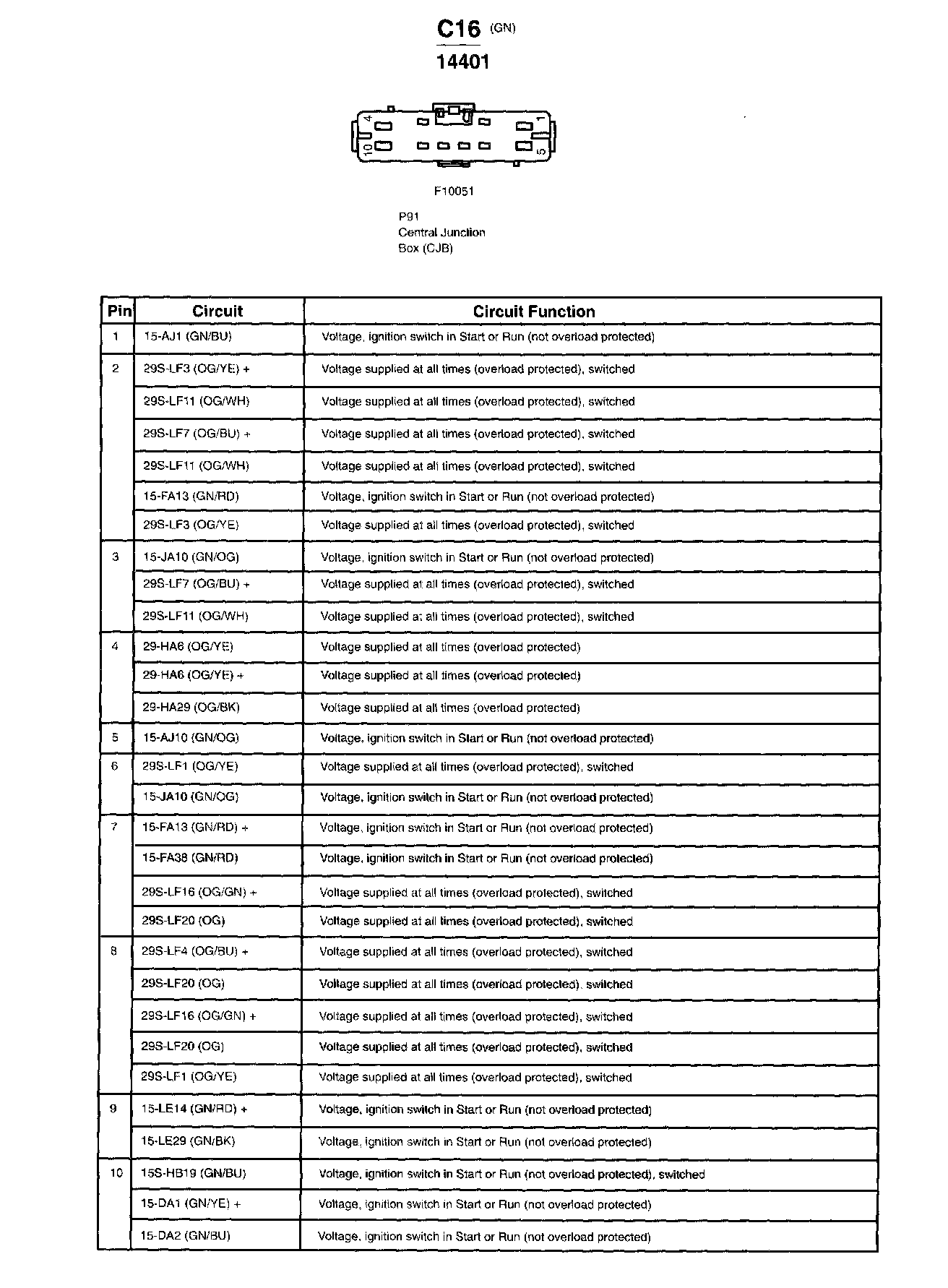

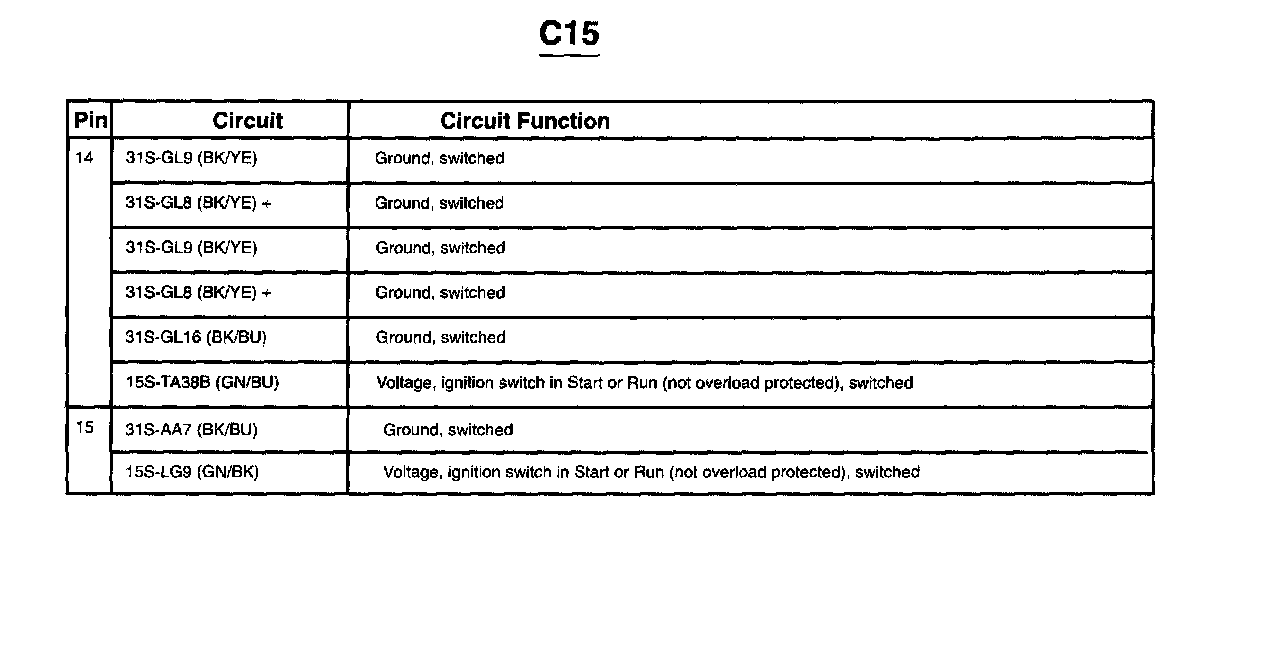

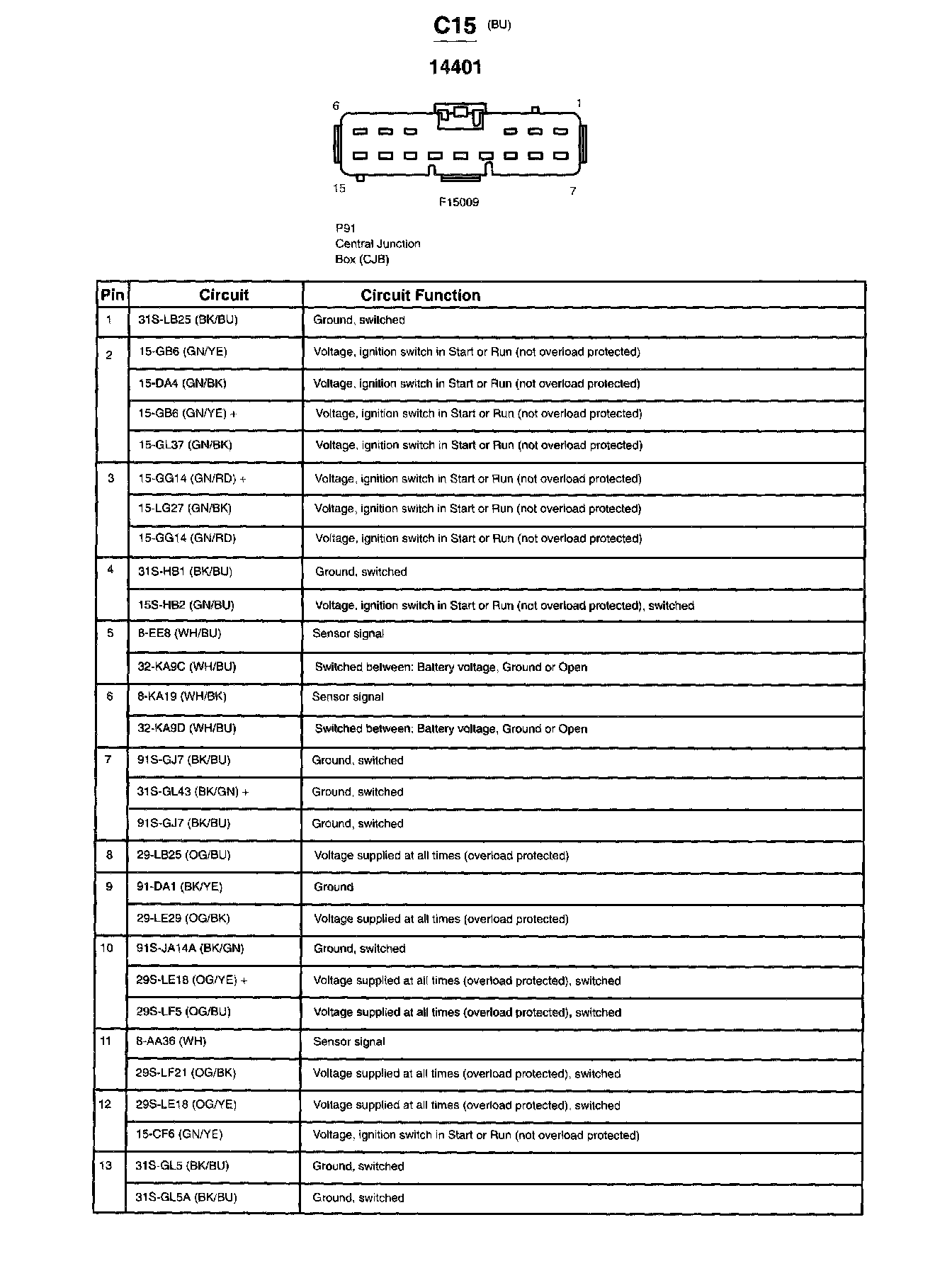

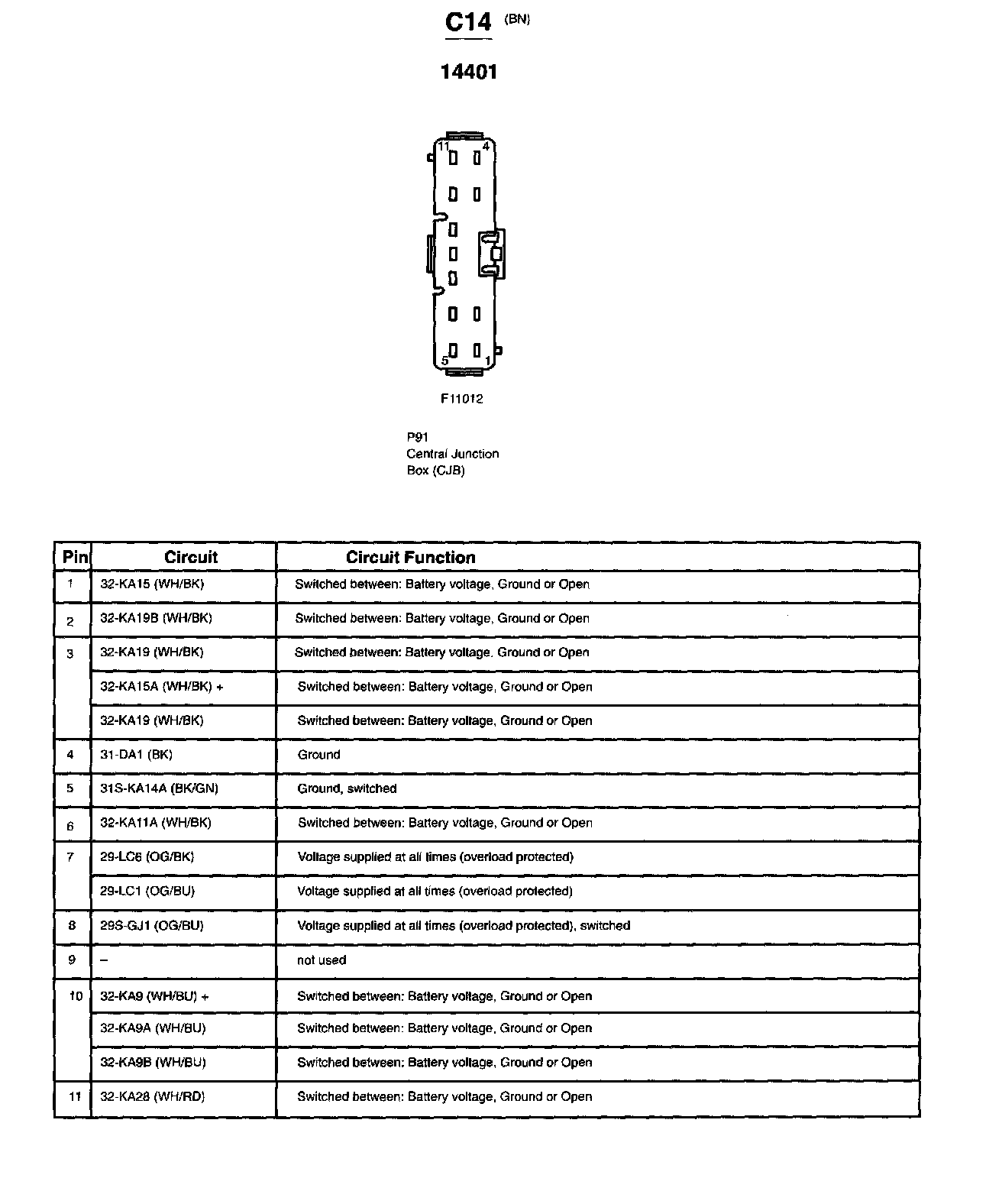

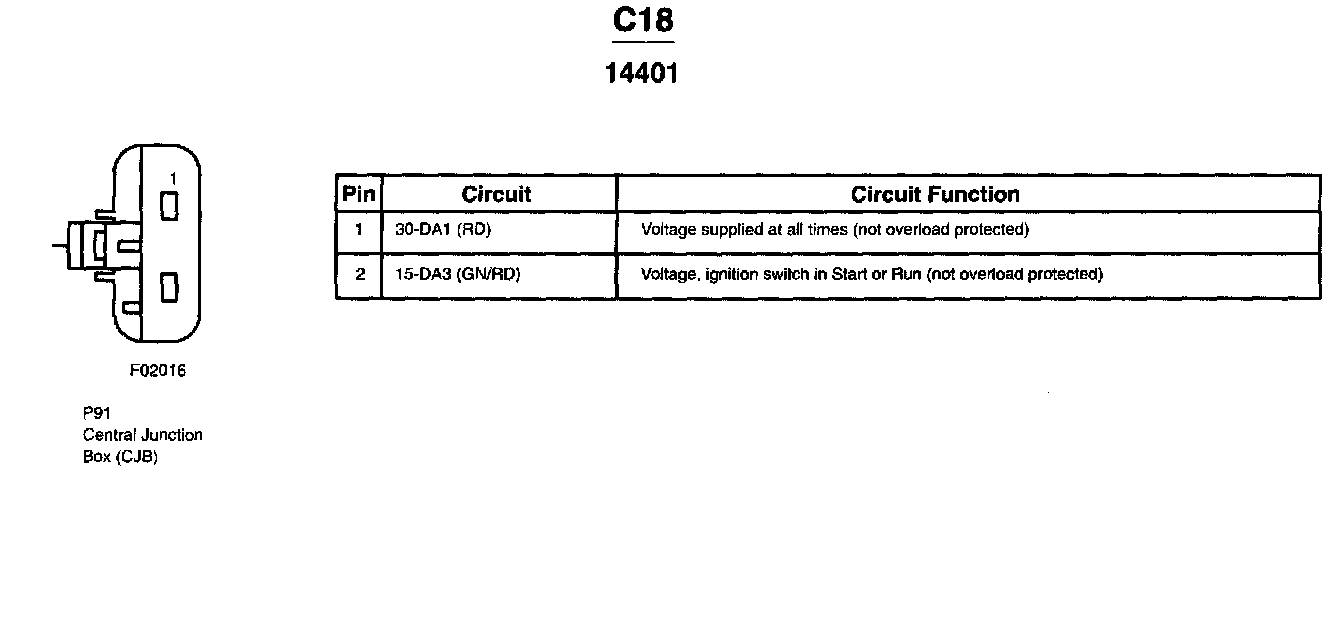

Part 1:






Part 2:
