Control Assembly: Locations

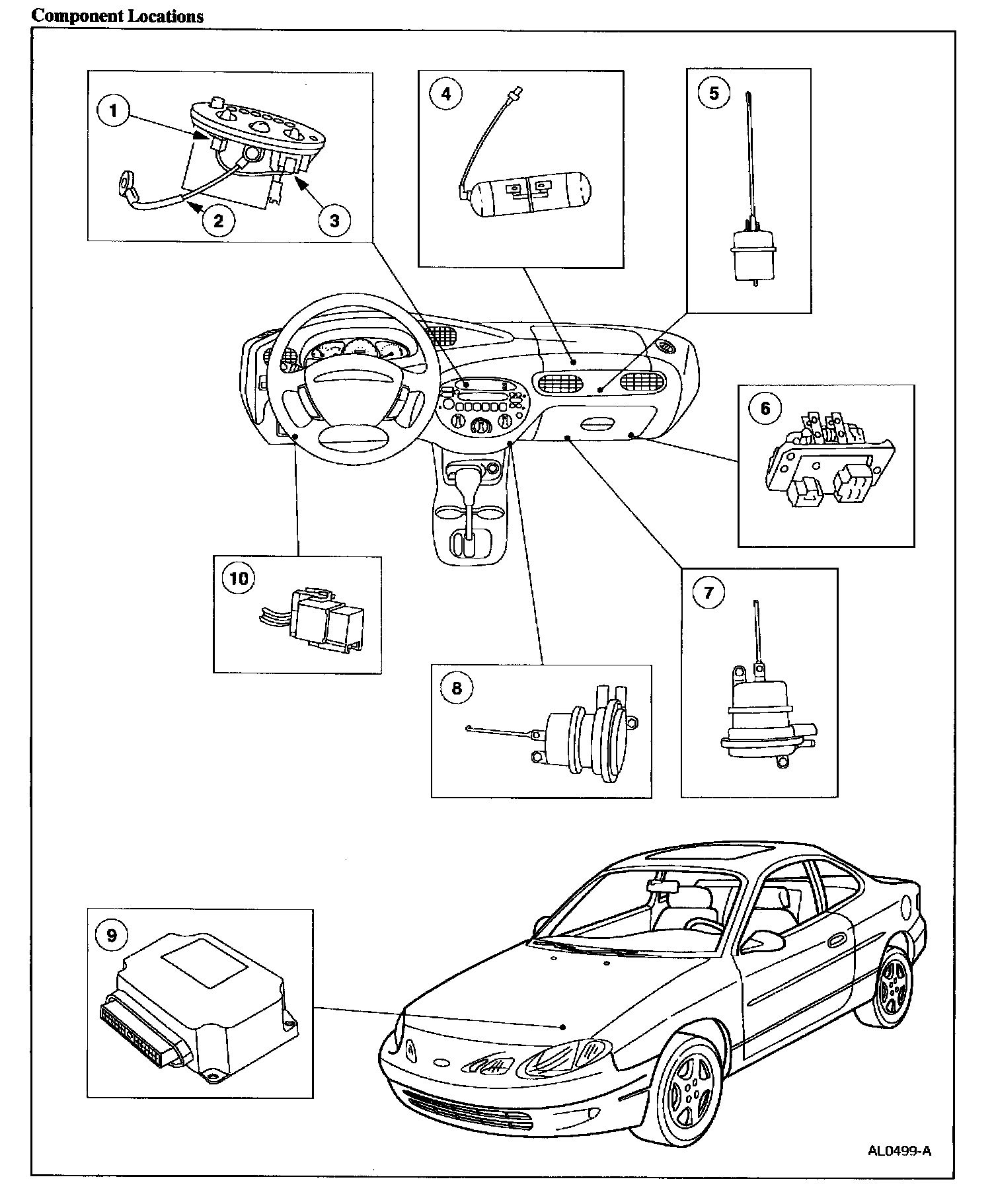

A/C Passenger Compartment Components Part 1:

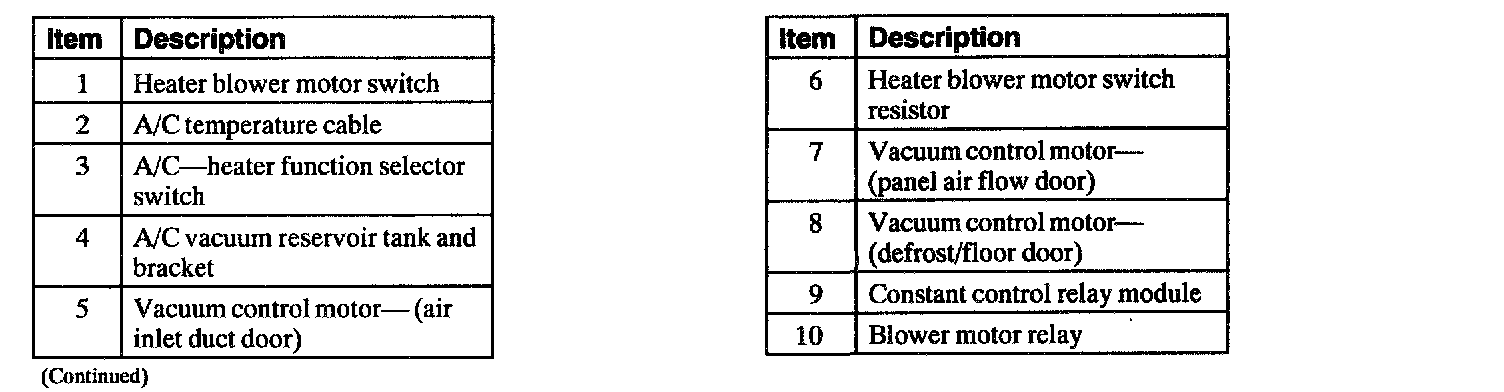

A/C Passenger Compartment Components (Legend) Part 2:
