Home
>>
Ford
>>
2001
>>
Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Keyless Entry Key-Pad
Keyless Entry Key-Pad

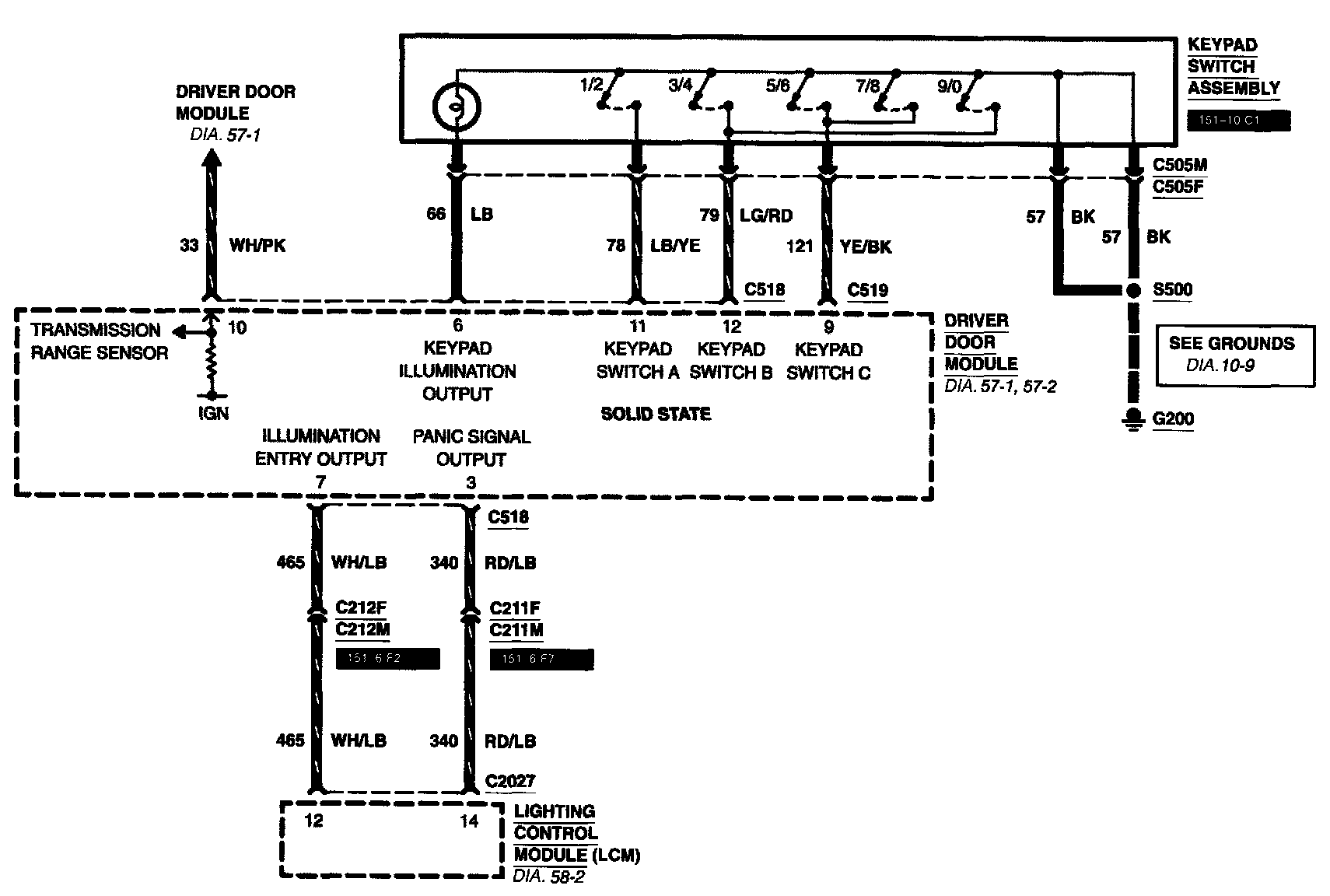

Diagram 111-3:
