C171 Transmission Range Sensor (AX4S)
C171 Transmission Range Sensor (AX4S)

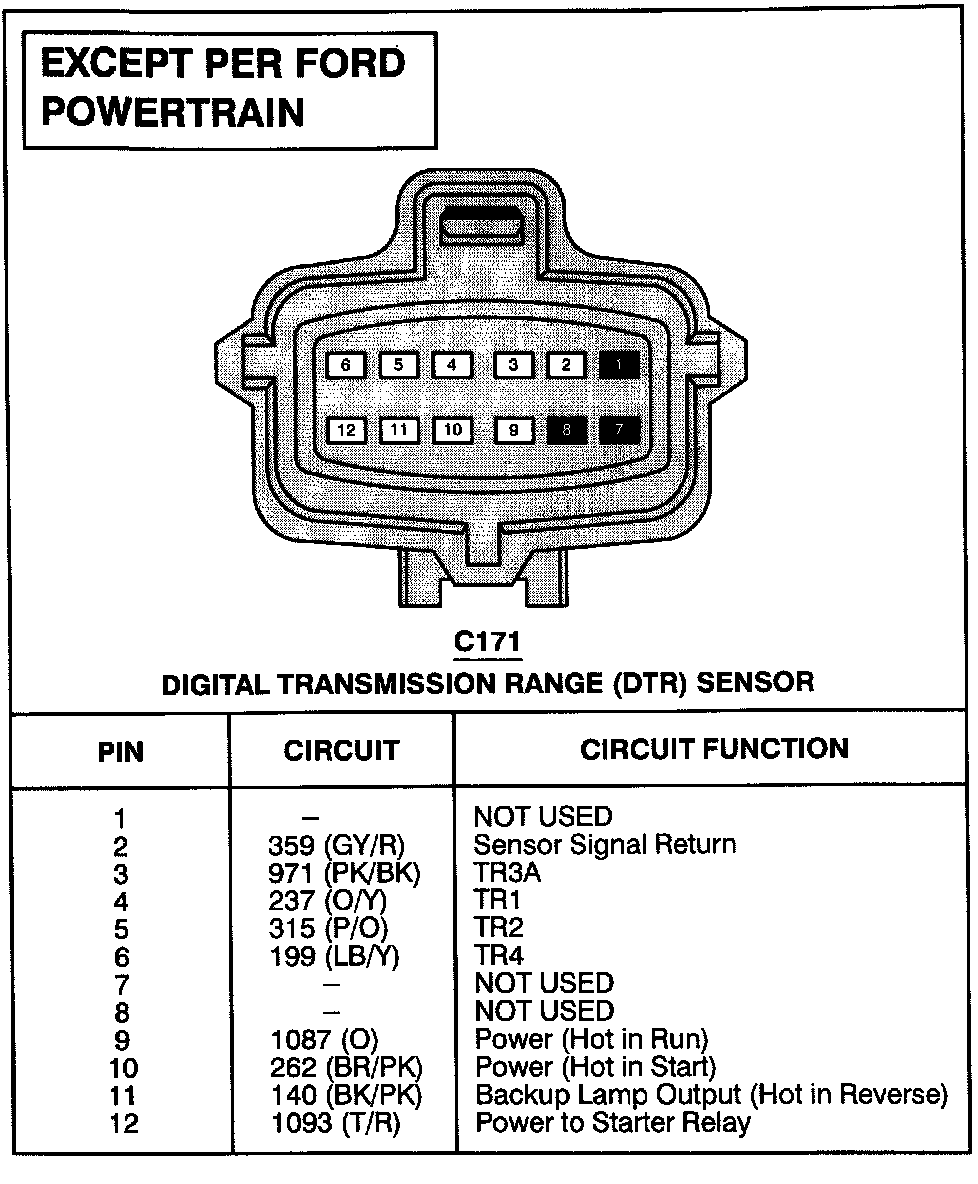

EXCEPT PER FORD POWERTRAIN:

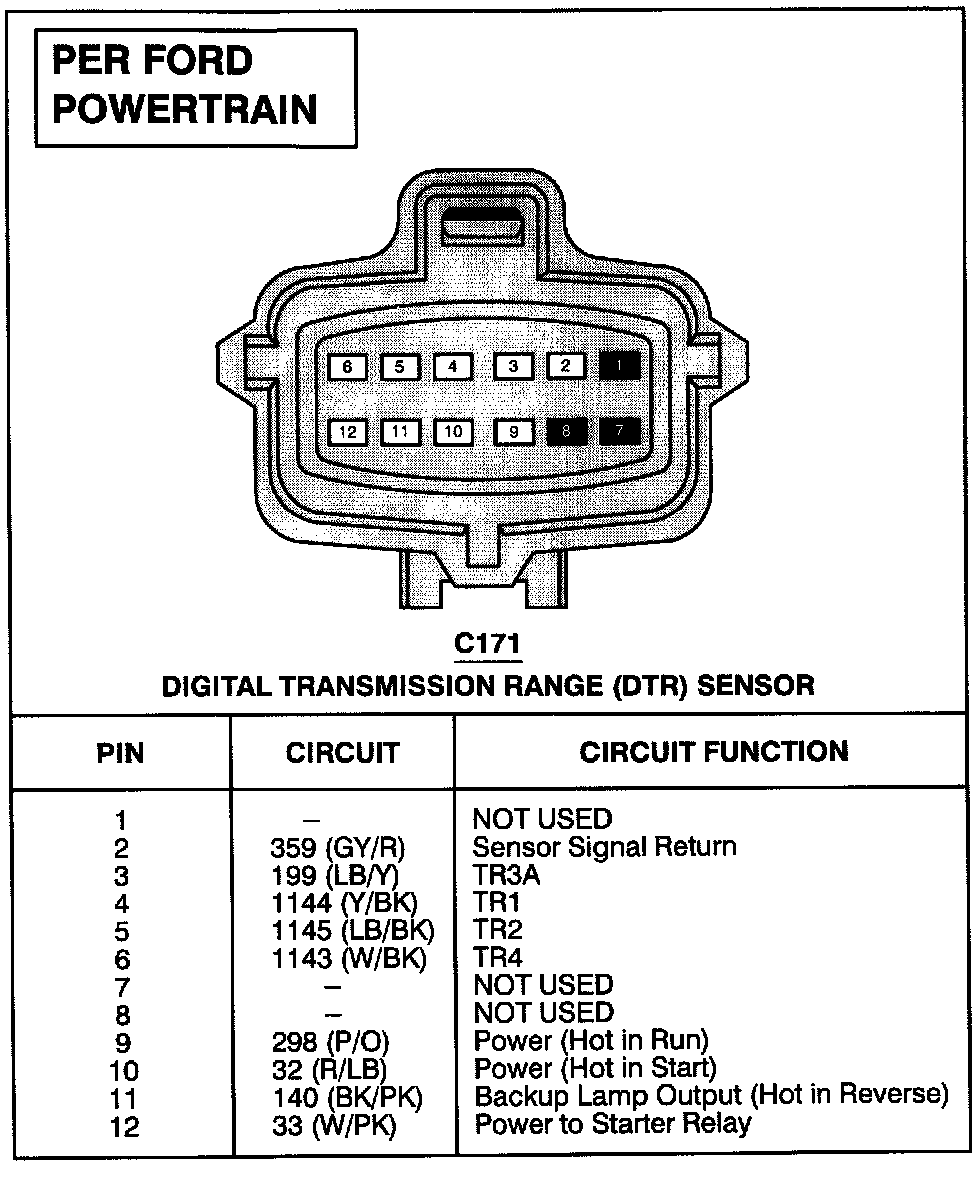

PER FORD POWERTRAIN:
