Control Assembly, HVAC
>>
Function Selector Switch
Function Selector Switch

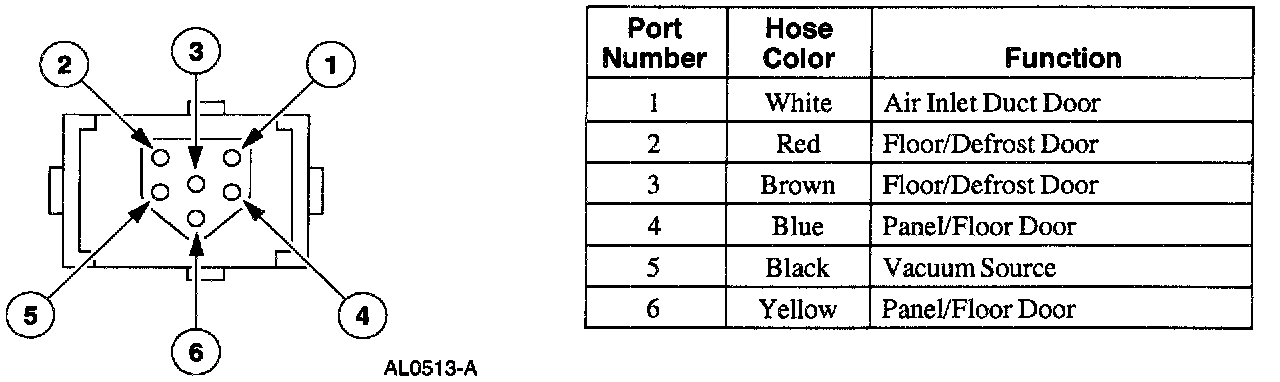

Function Selector Switch Vacuum Connector:

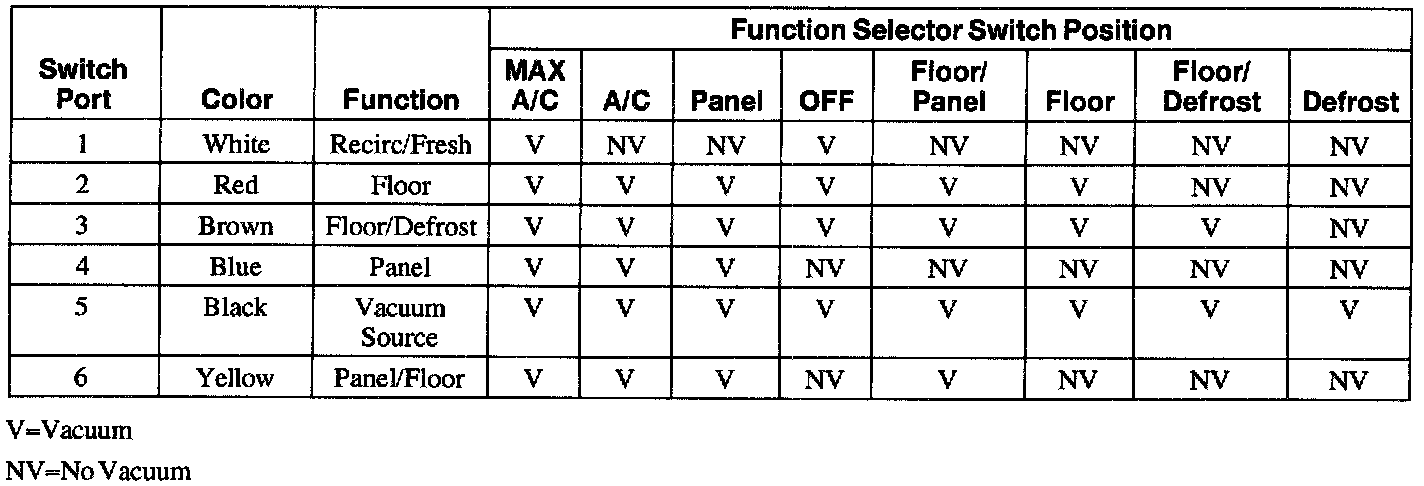

Function Selector Switch Vacuum Application Chart:
