Home
>>
Ford
>>
1996
>>
Mustang V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

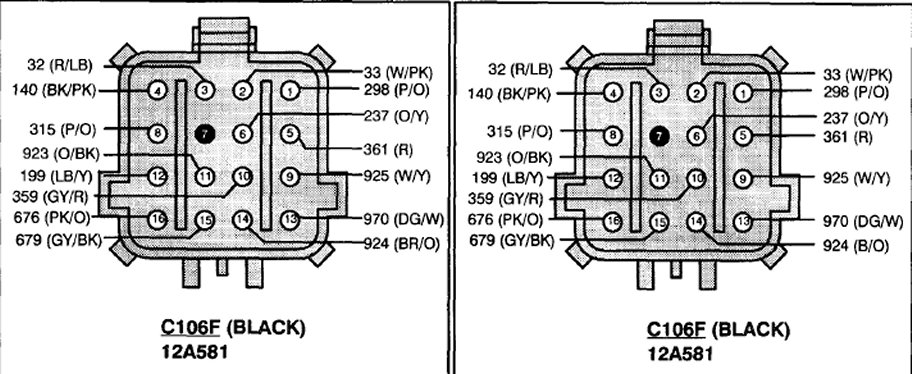

Connector View C-106
