Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Data Link Connector
Data Link Connector

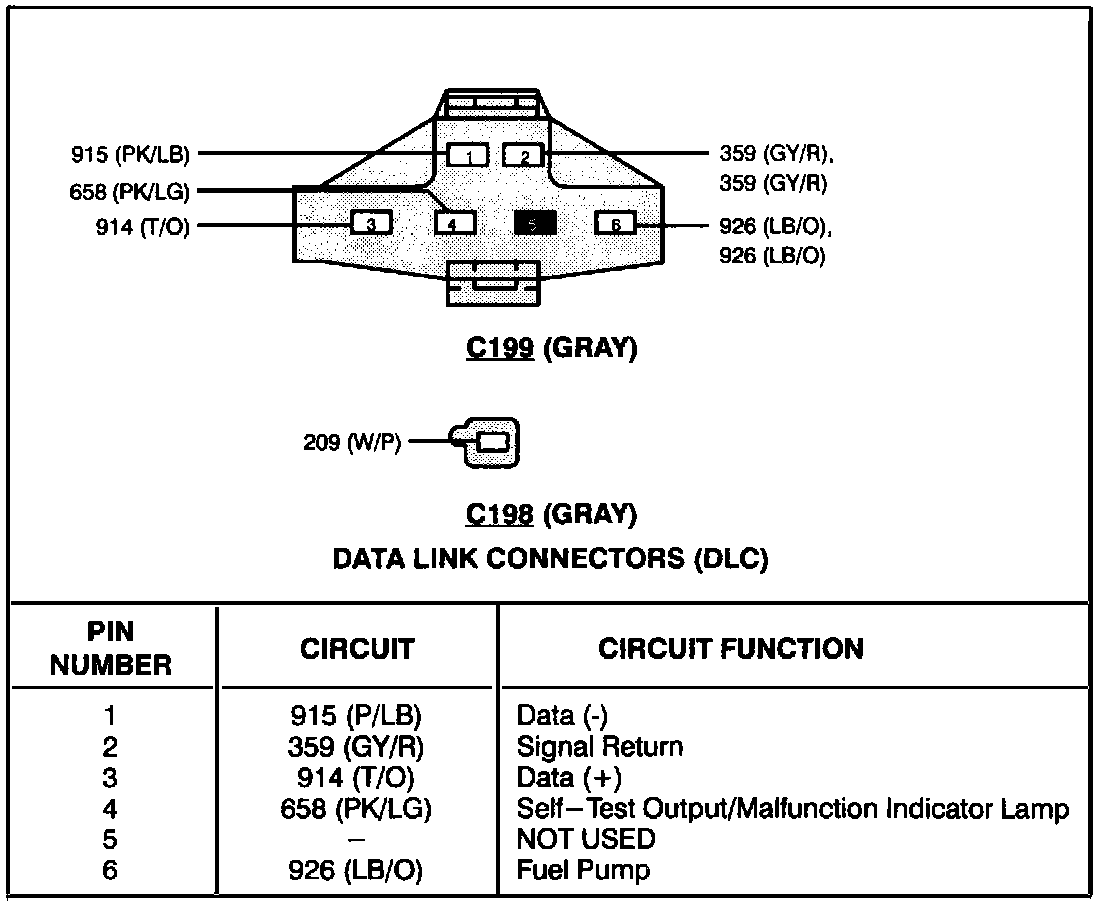

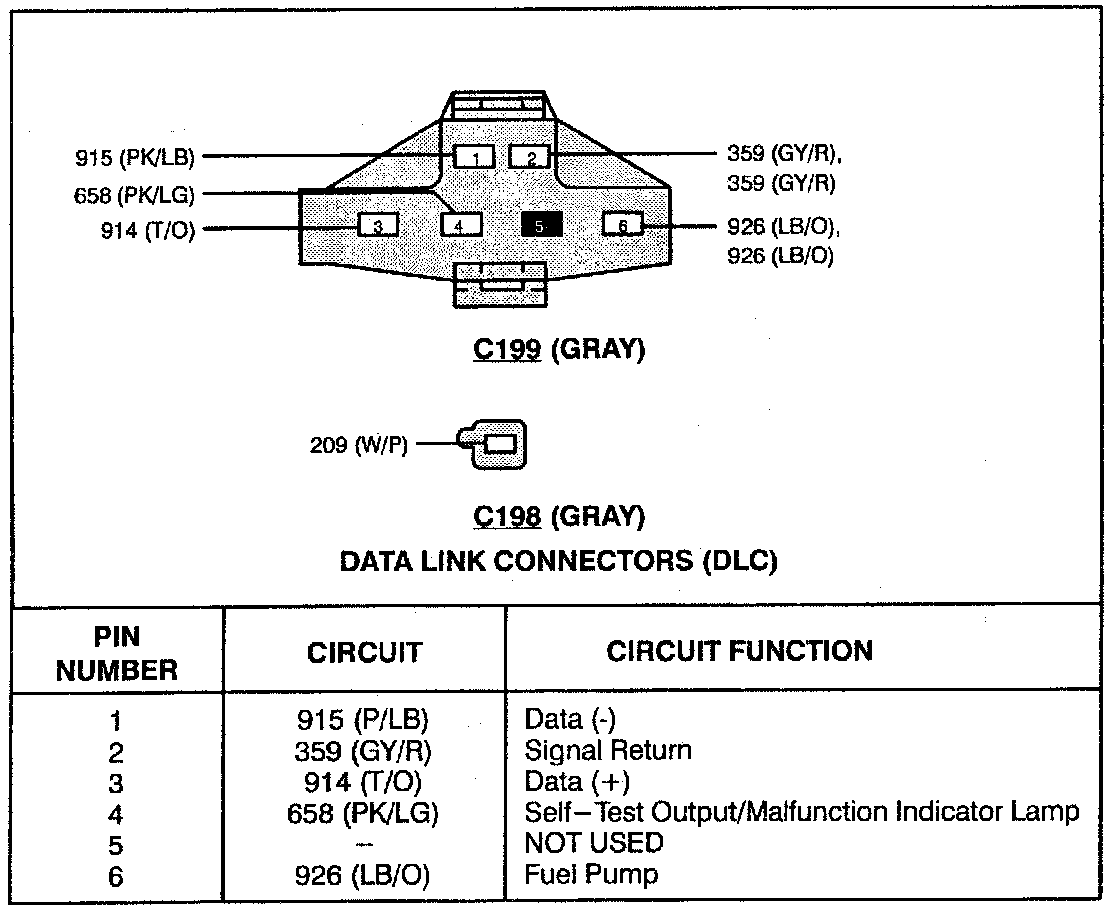

Data Link Connectors:
Connector View:
