Aspire L4-81 1.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
Connector Views
Connector Views

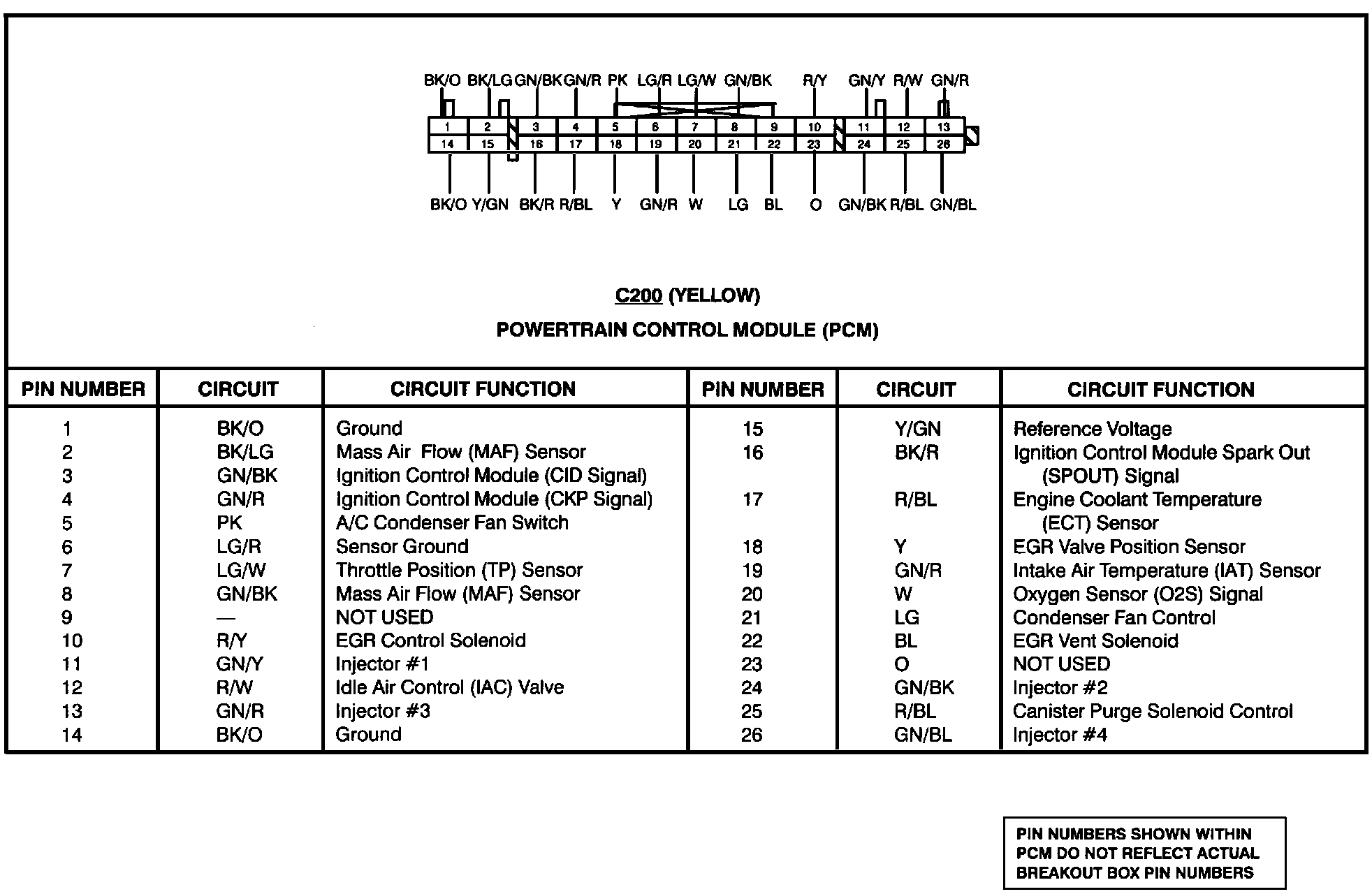

Powertrain Control Module (C200):

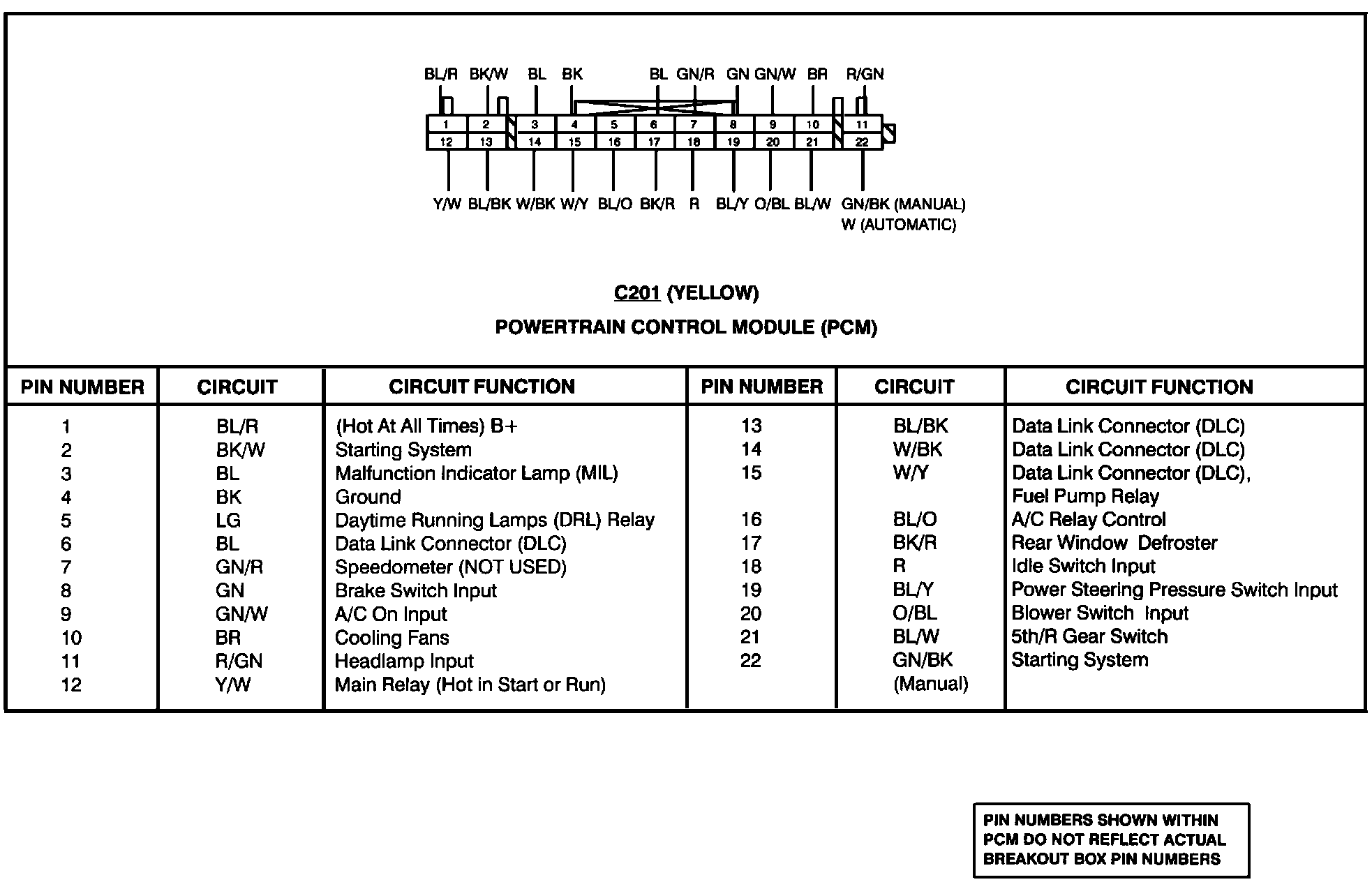

Powertrain Control Module (C201):
