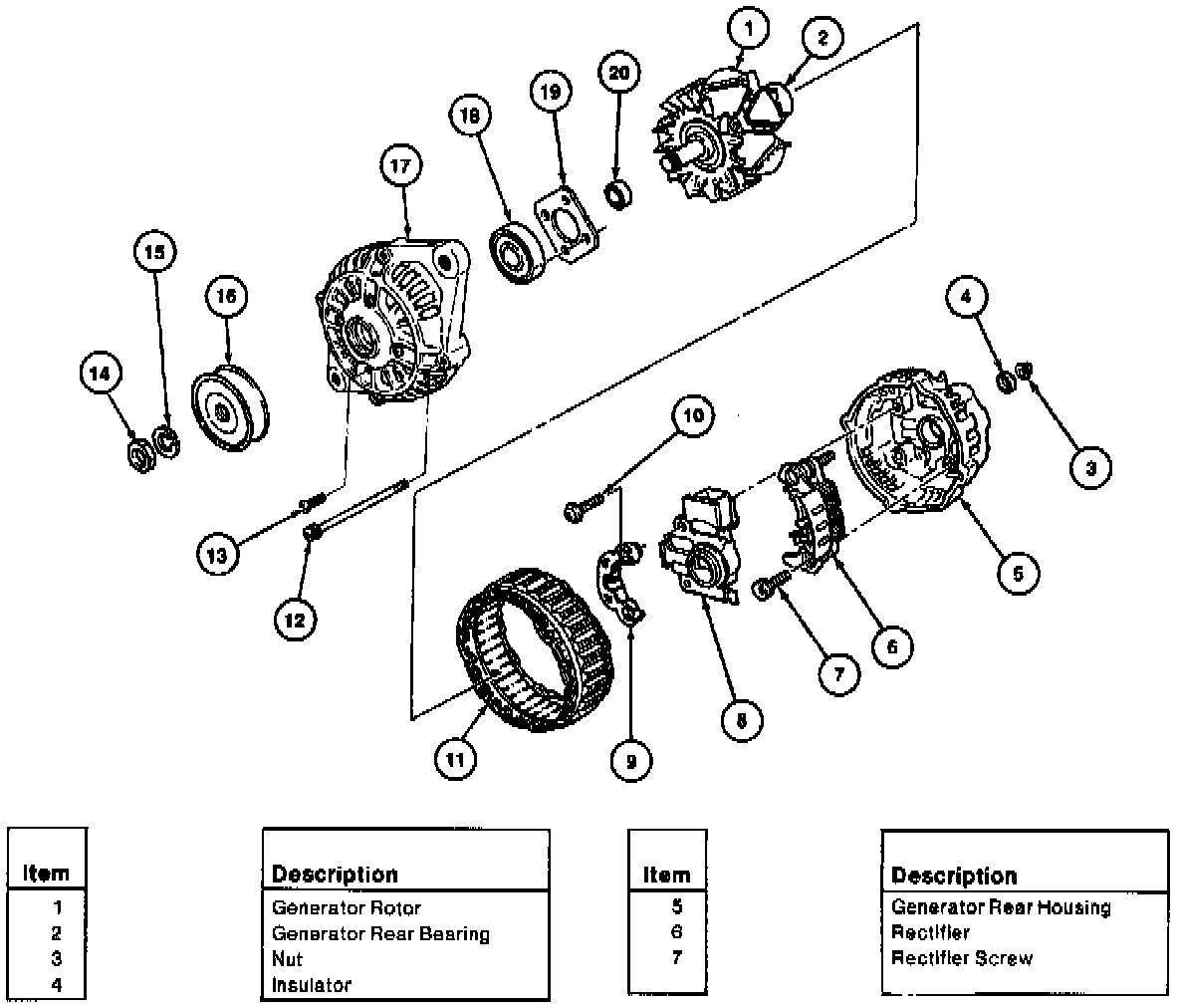

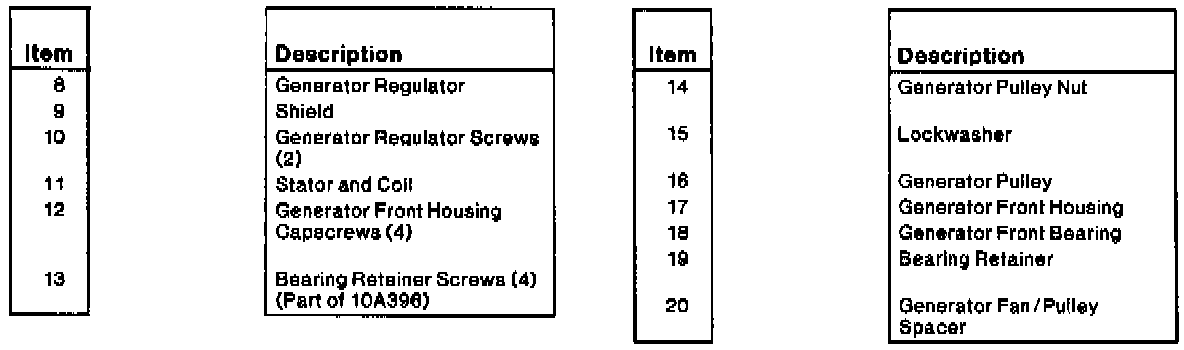

Alternator
Alternator
Alternator:
Alternator:
The
charging system
consists of an
alternator
with a integral rectifier and regulator.
