Taurus V6-195 3.2L DOHC SHO
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
Oscilloscope Patterns and Waveforms
Waveforms:

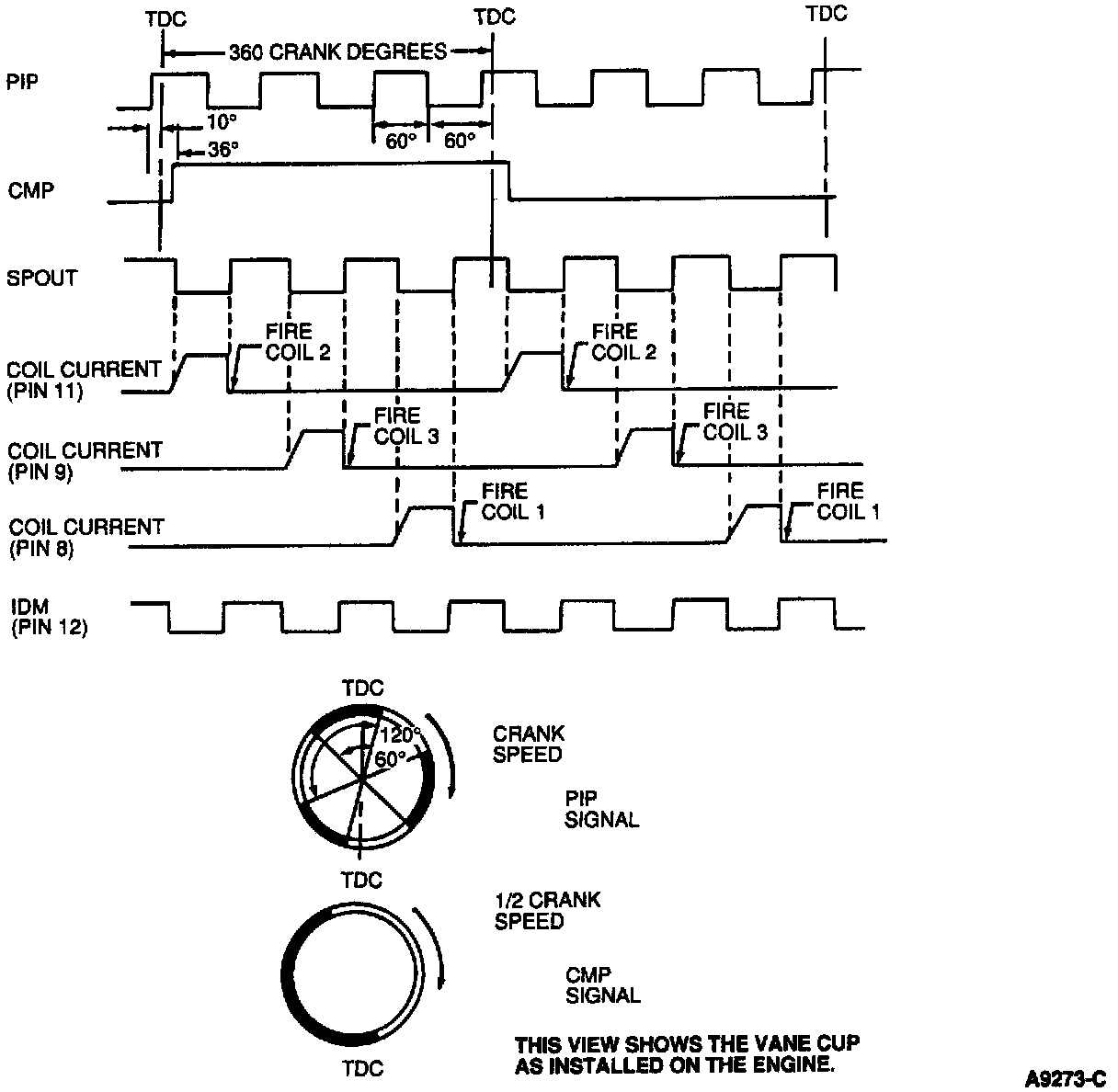

SHO Low Data Rate Waveforms:
