Home >> Ford >> 1994 >> Probe V6-153 2.5L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Interior Fuse Panel

Interior Fuse Panel

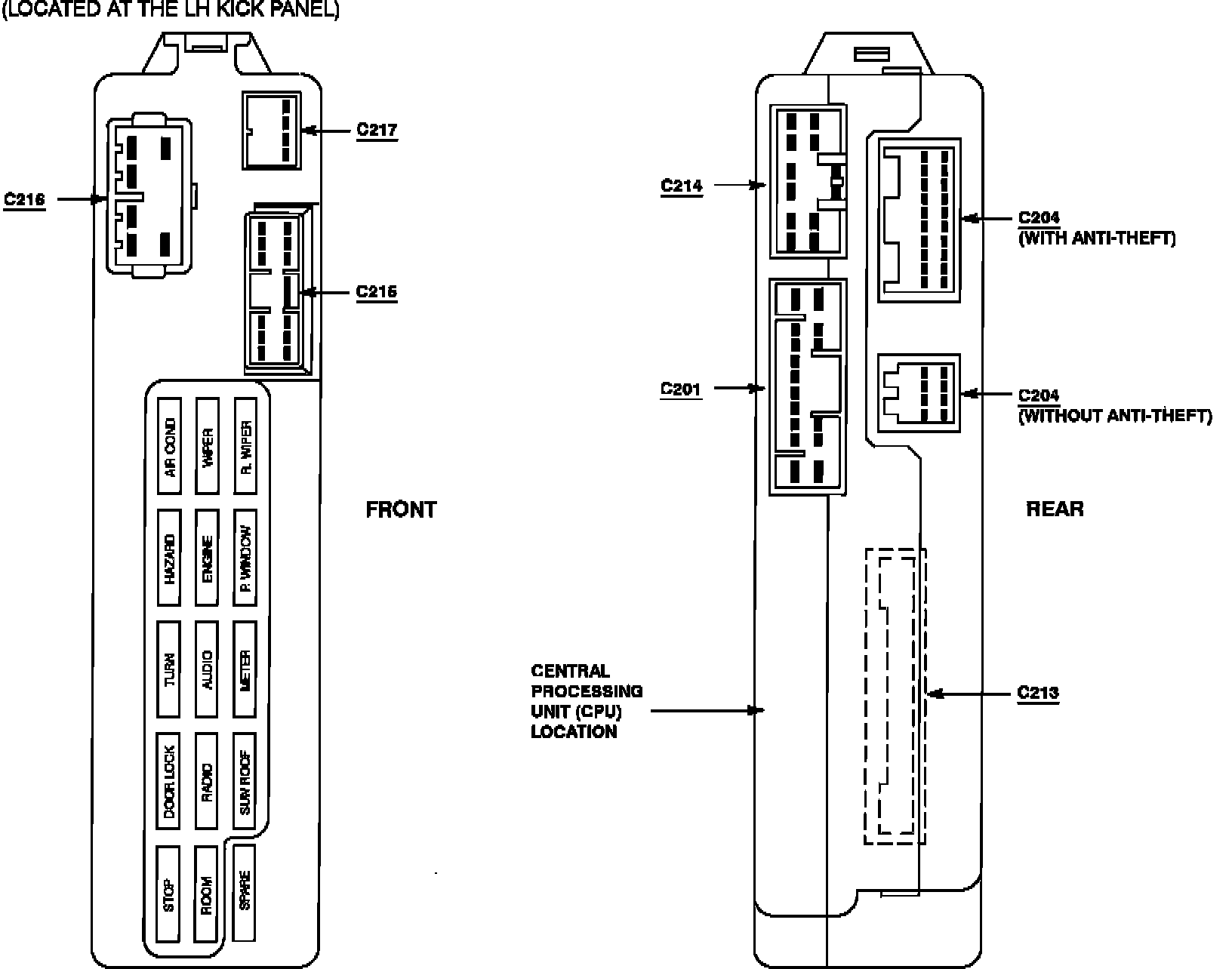

Instrument Panel Fuse Panel:

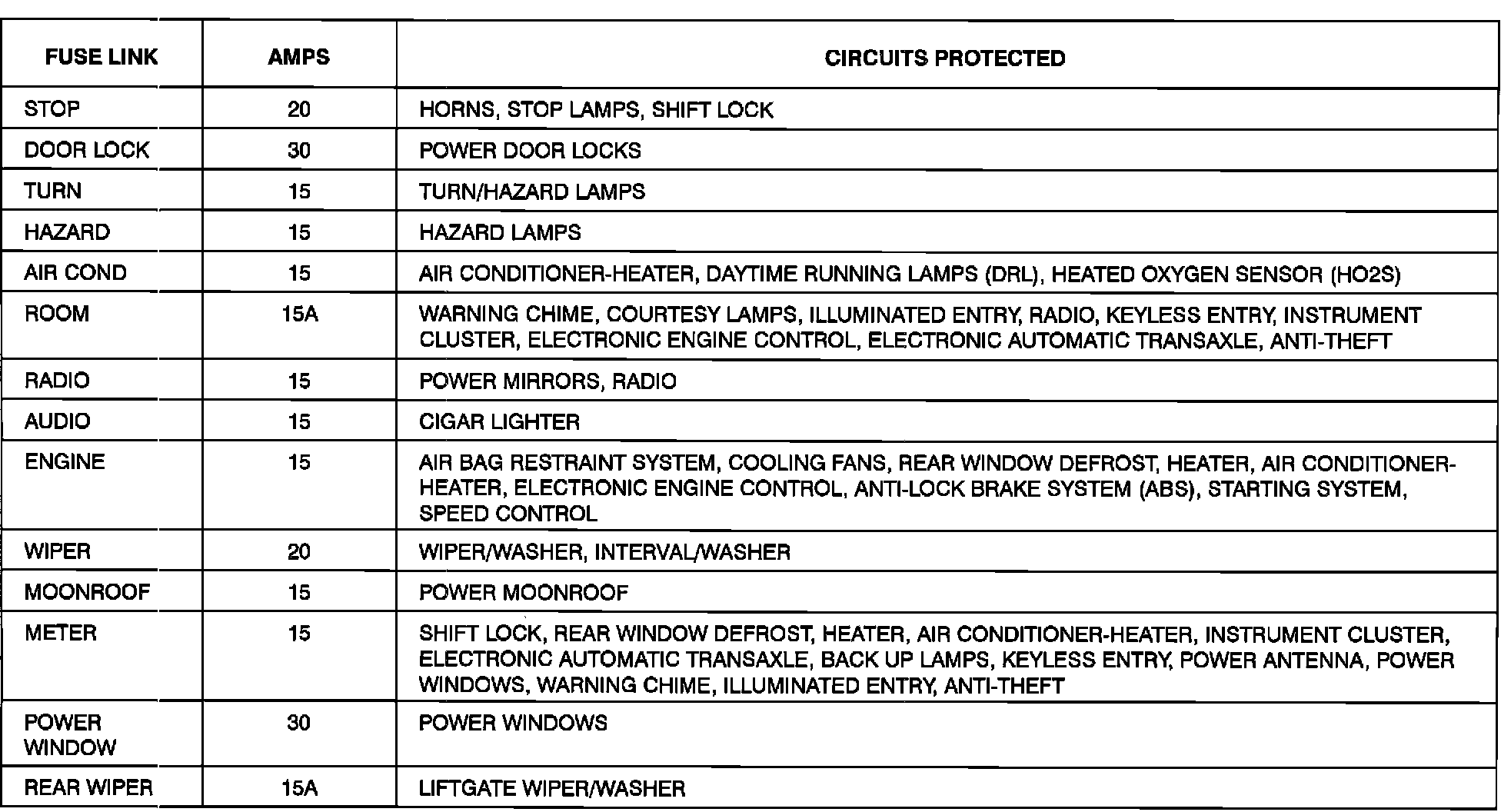

Instrument Panel Fuse Panel Circuit Protector:
