Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Testing and Inspection
>>
Master Window/Door Lock Control Switch
>>
Coupe
Coupe

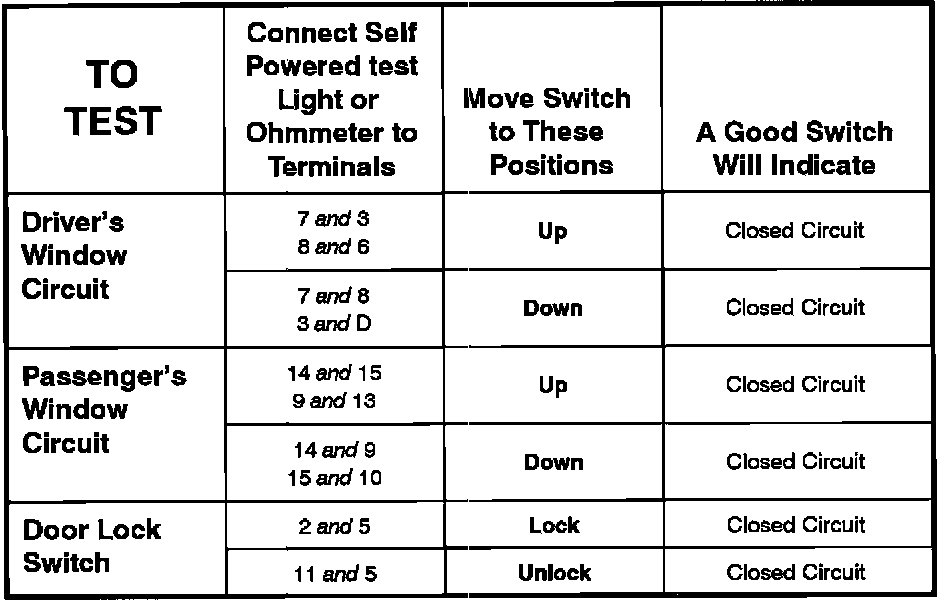

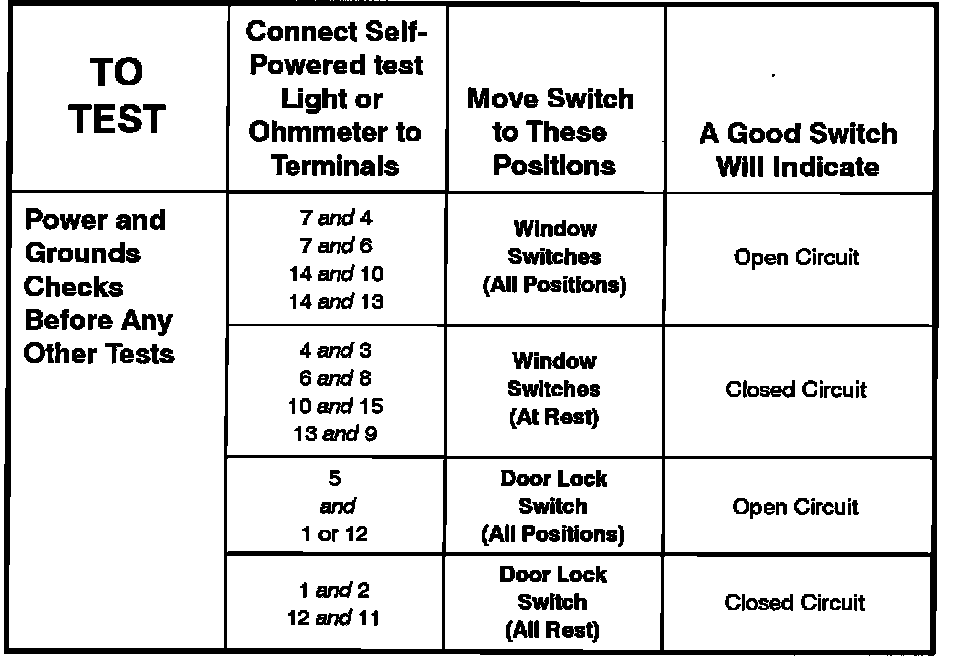

Component Testing Procedure:
Component Testing Procedure:

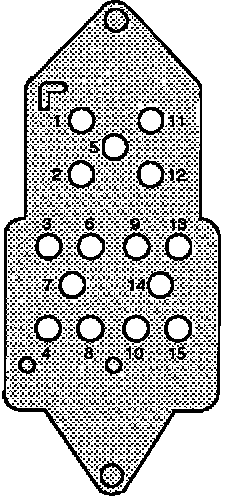

Terminal ID:

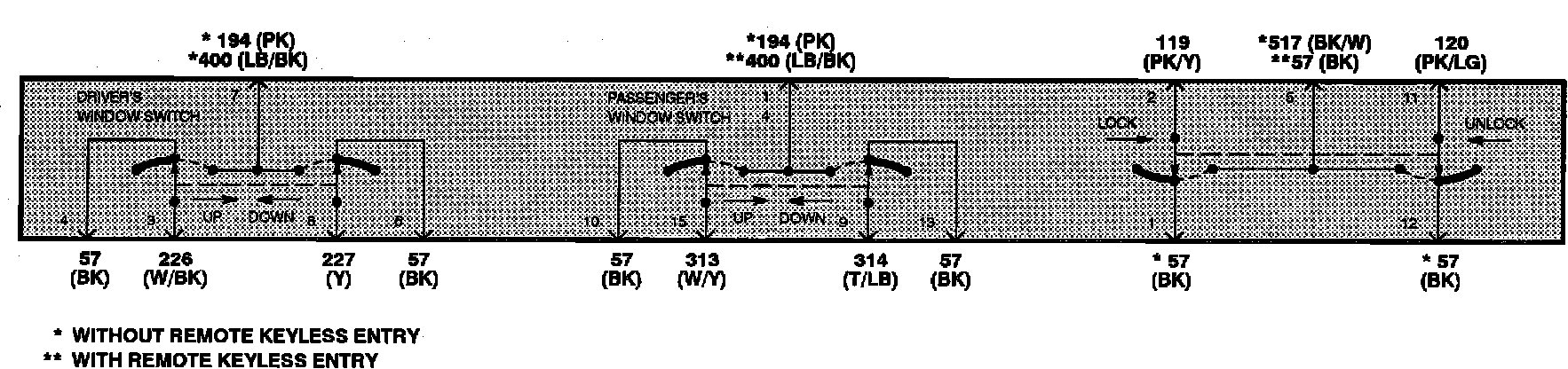

Schematic:
