Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
1993
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>

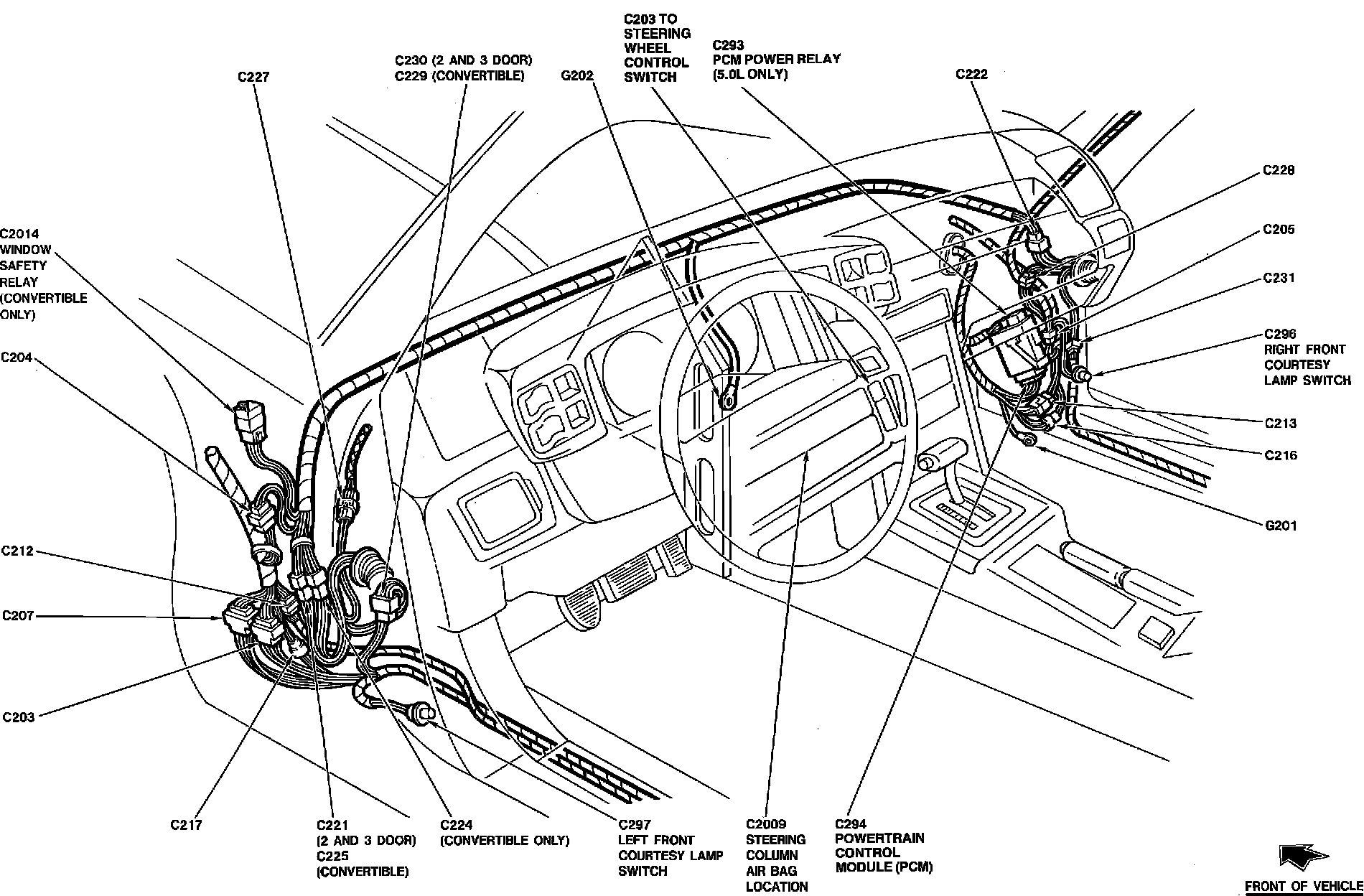

Instrument Panel View
Instrument Panel View

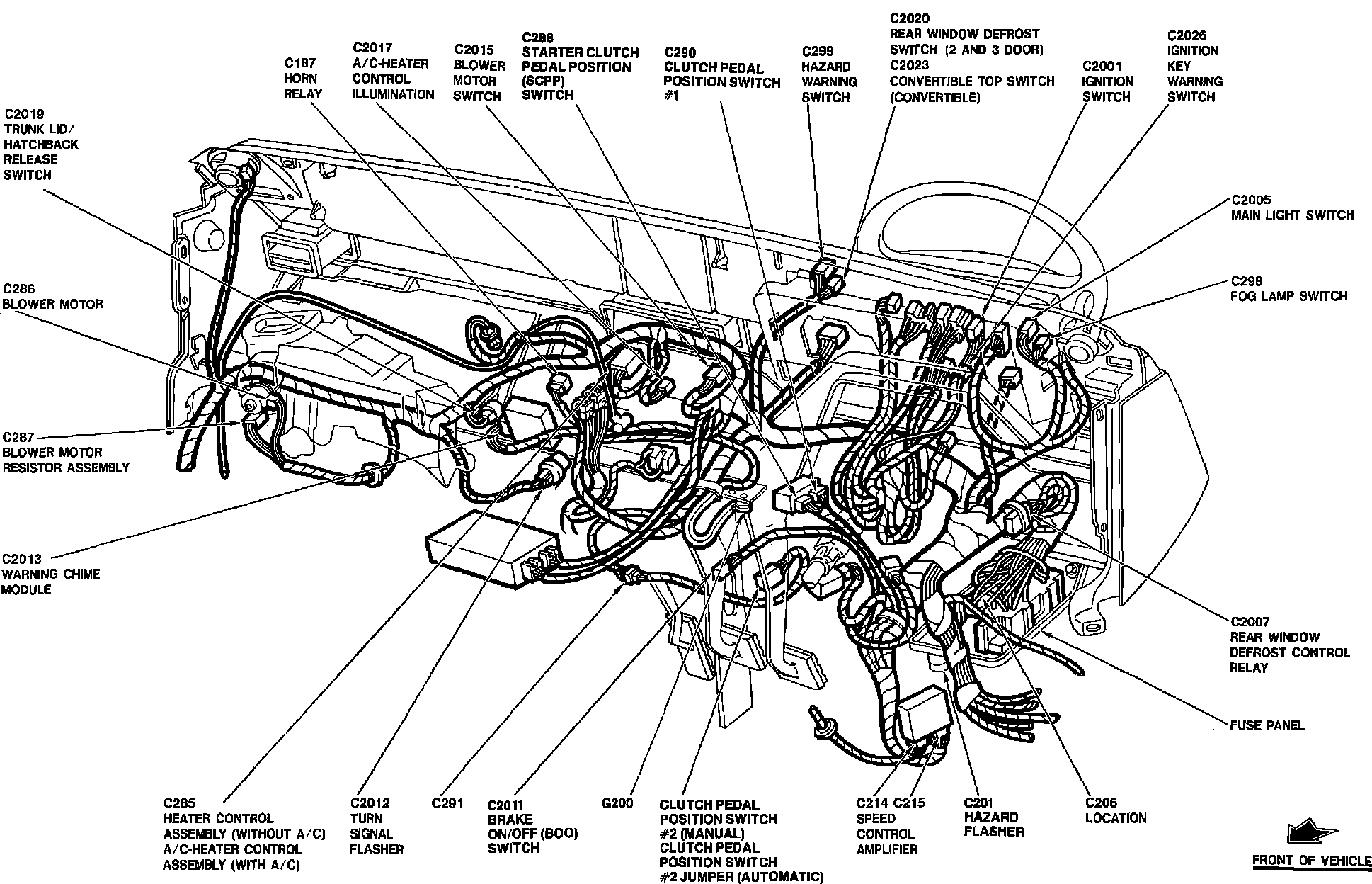

Component Locations:

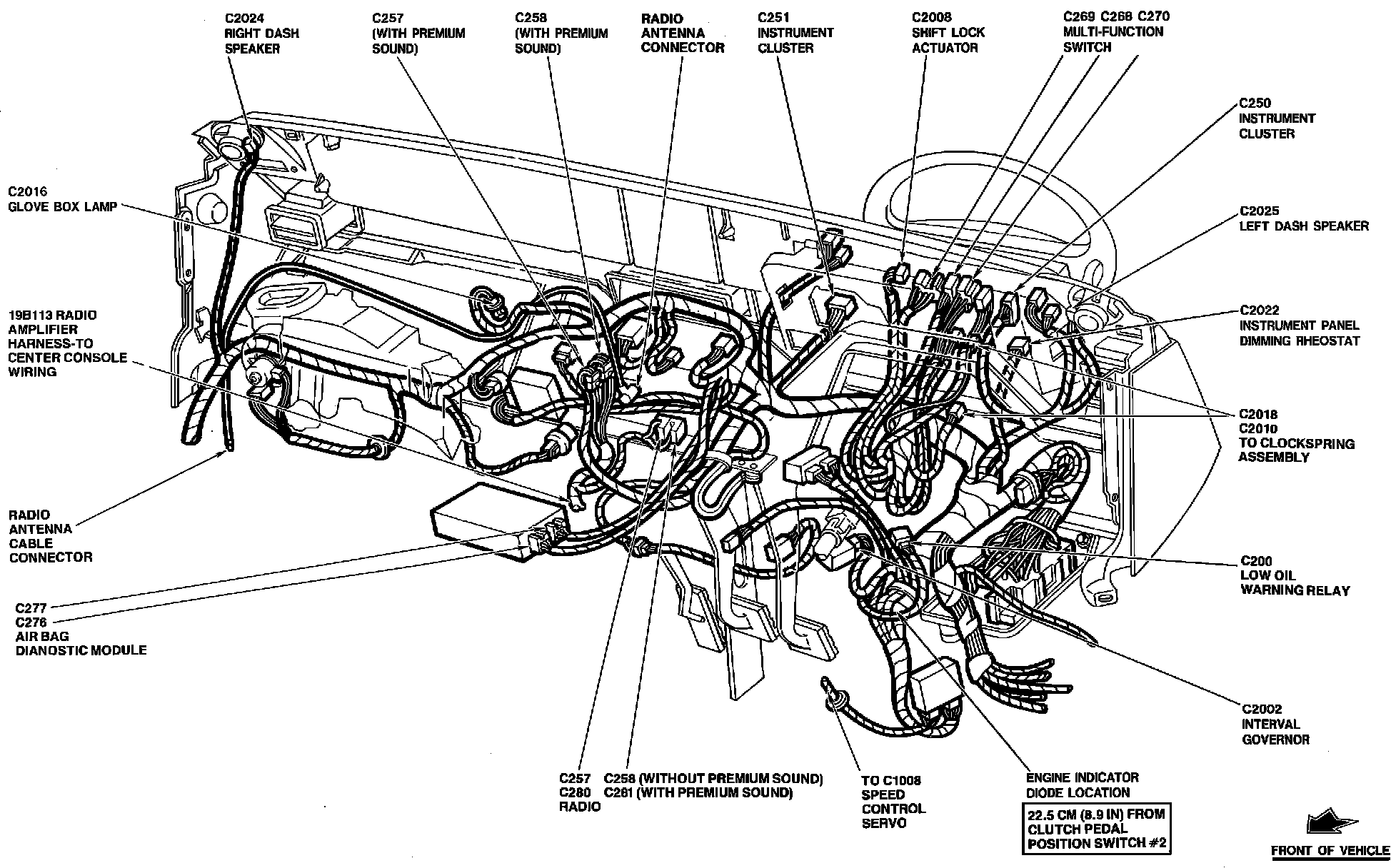

Component Locations:
Component Locations:
