Home
>>
Ford
>>
1993
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Connector Views
Connector Views

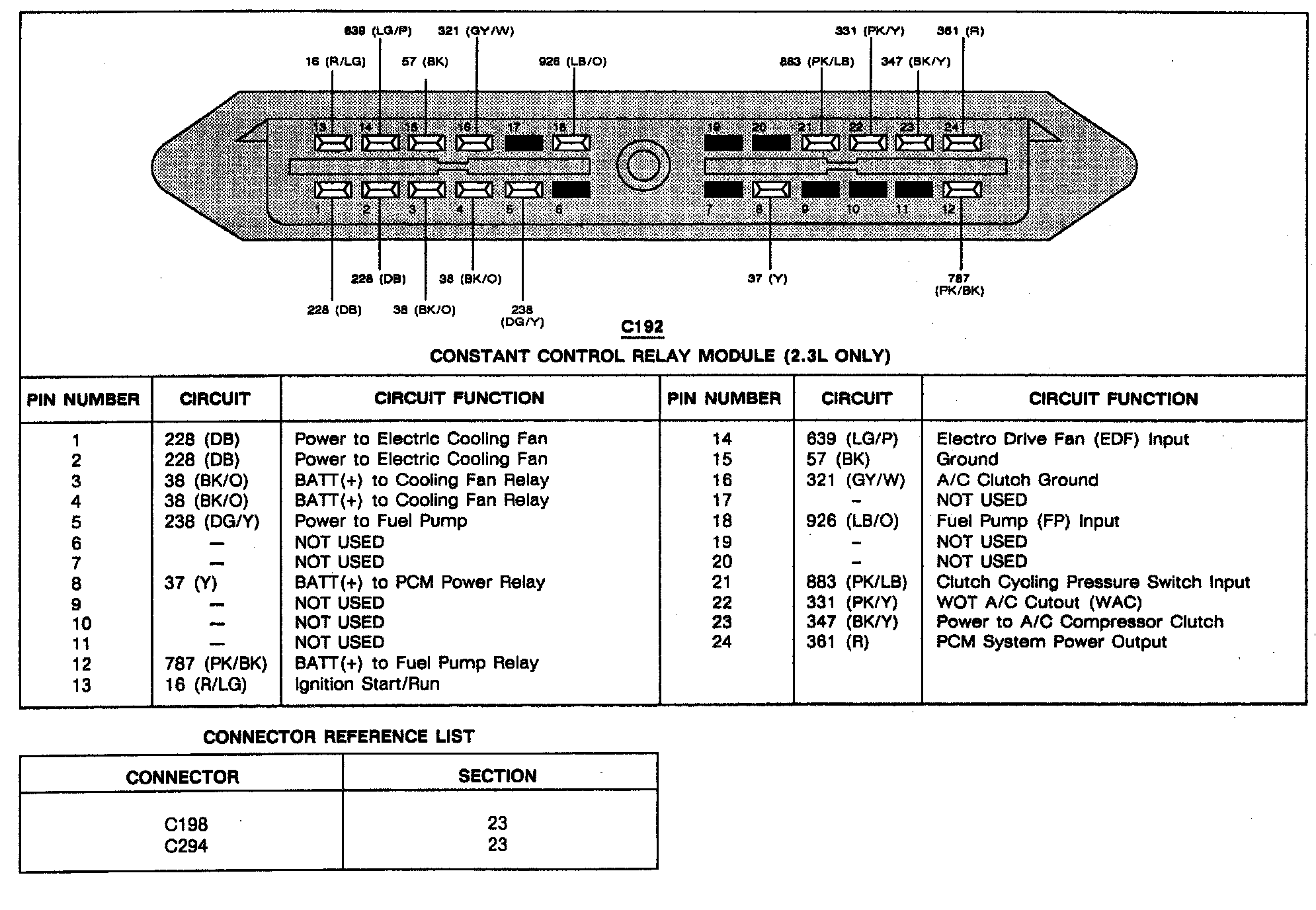

Constant Control Relay Module Pin Reference Chart (2.3L Only):
