Home >> Ford >> 1992 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

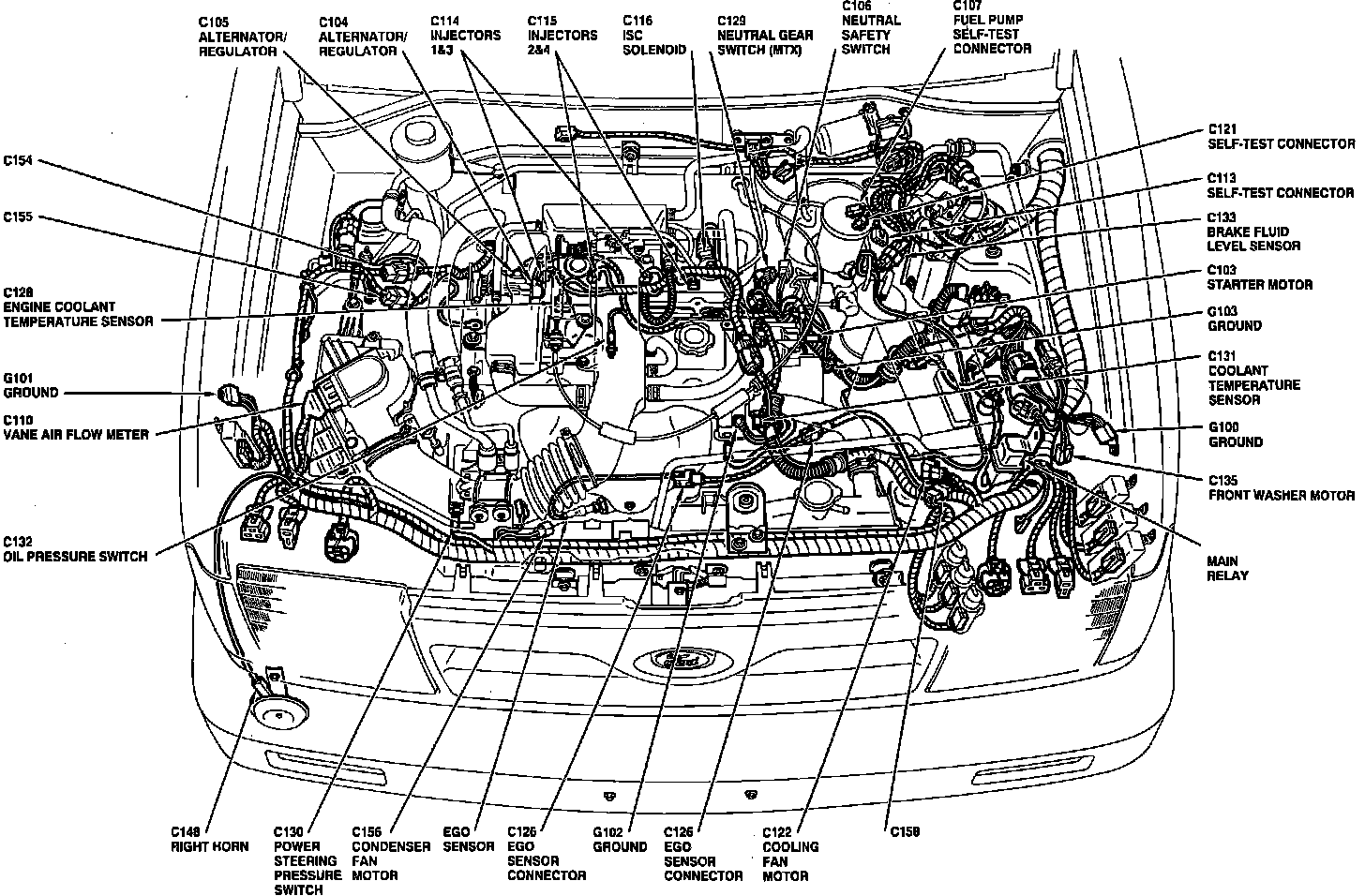

Engine Compartment Component Locations:




RH Front Of Engine Compartment
