Ford
>>
1992
>>
Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

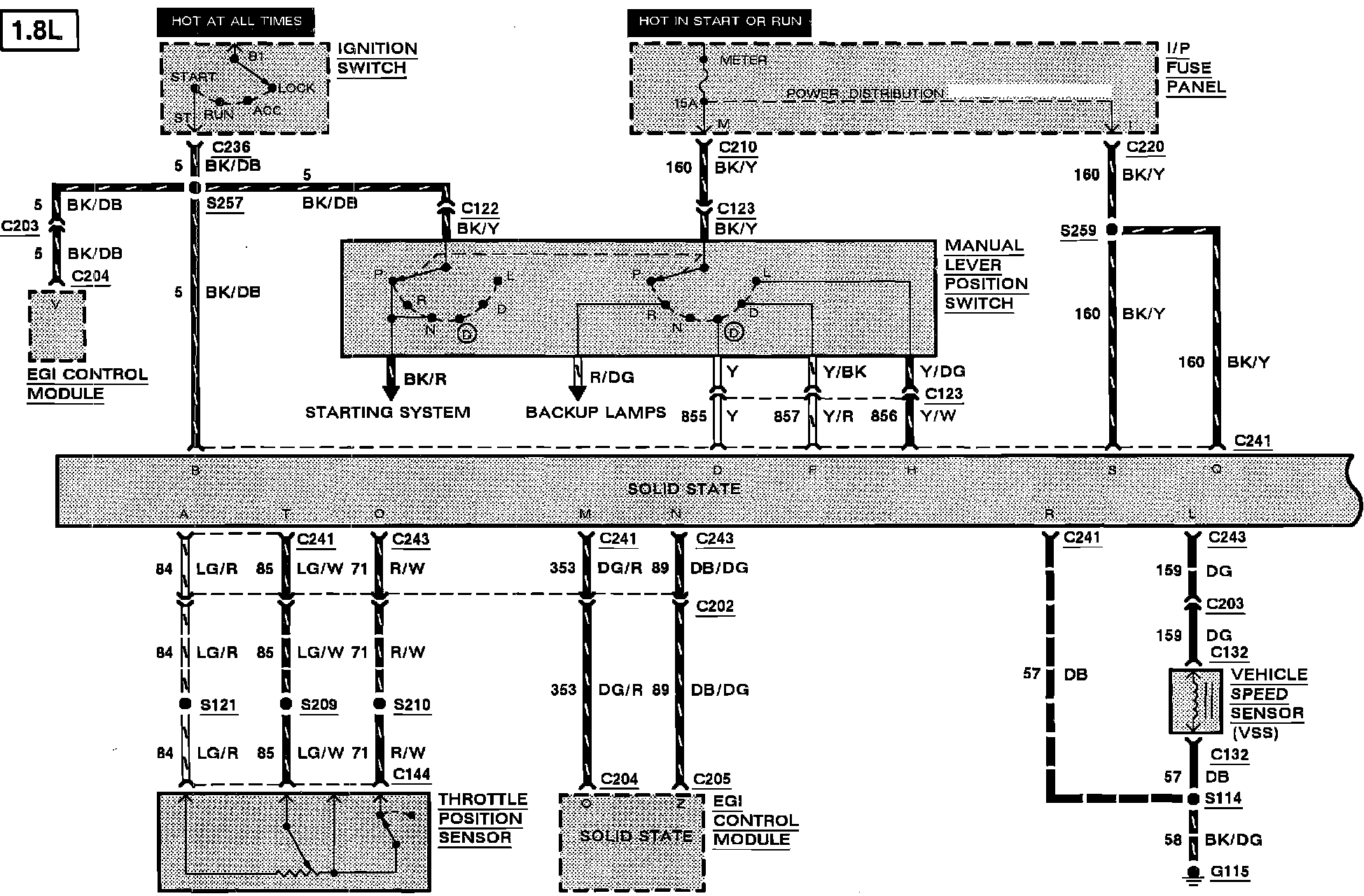

Electronic Automatic Transaxle:

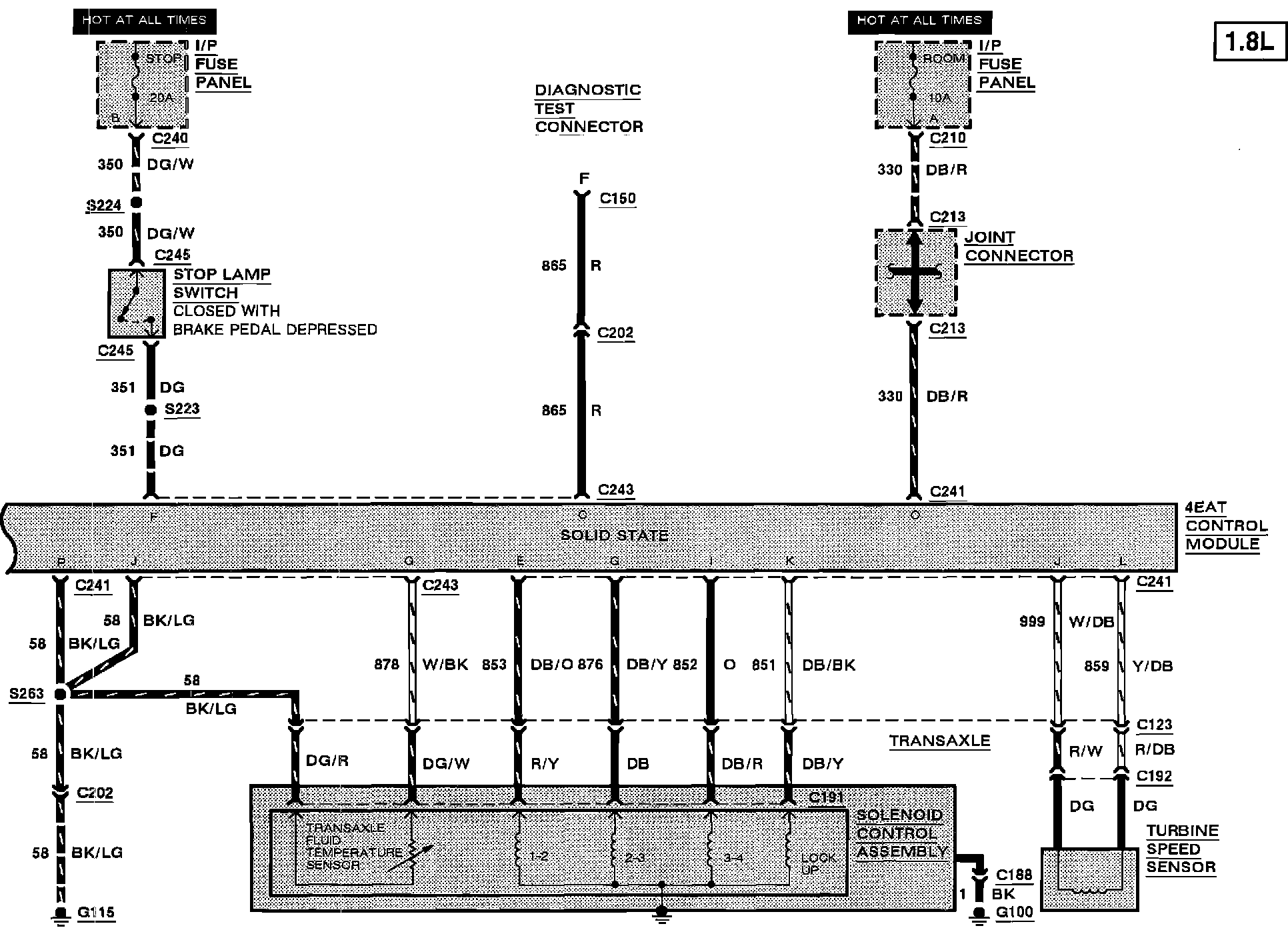

Electronic Automatic Transaxle:
