Engine Compartment Fuse Box

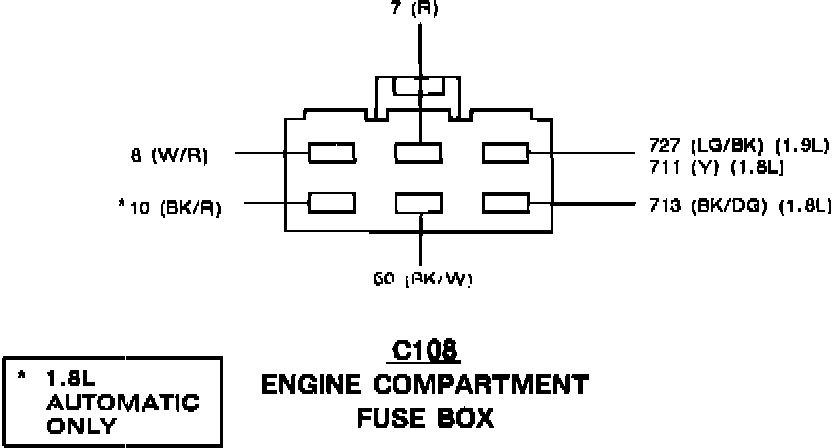

Connector Faces/Pinout Charts:

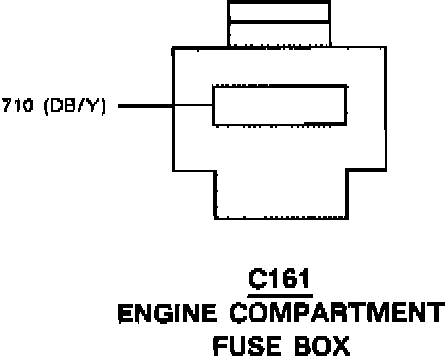

Connector Faces/Pinout Charts:

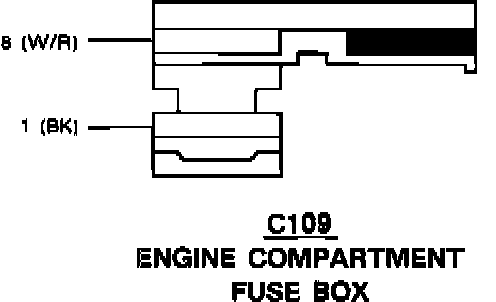

Connector Faces/Pinout Charts:

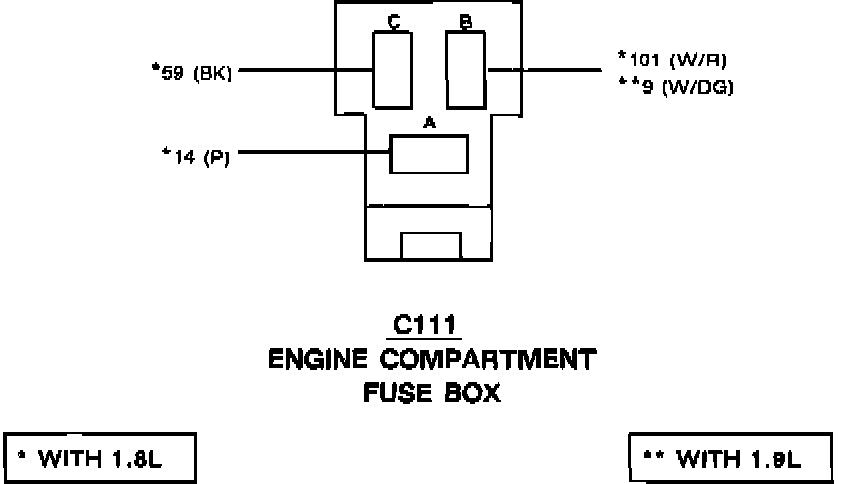

Connector Faces/Pinout Charts:

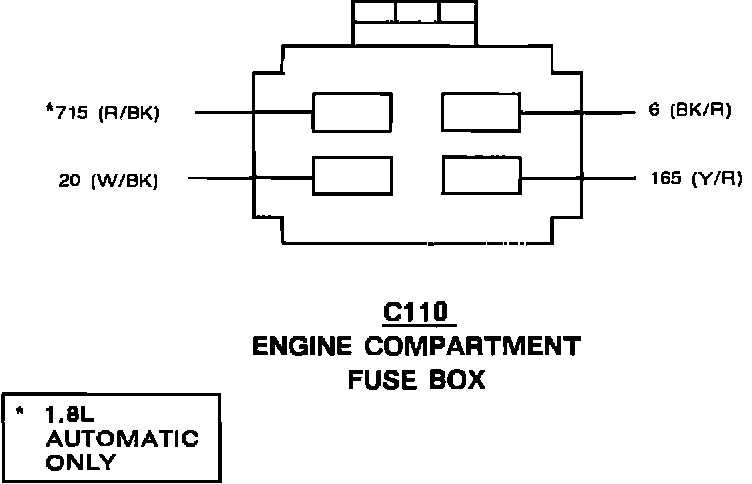

Connector Faces/Pinout Charts:
