Home >> Ford >> 1991 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Control Module >> Diagrams >> Electrical Diagrams >> Less Headlamp Checker

Less Headlamp Checker

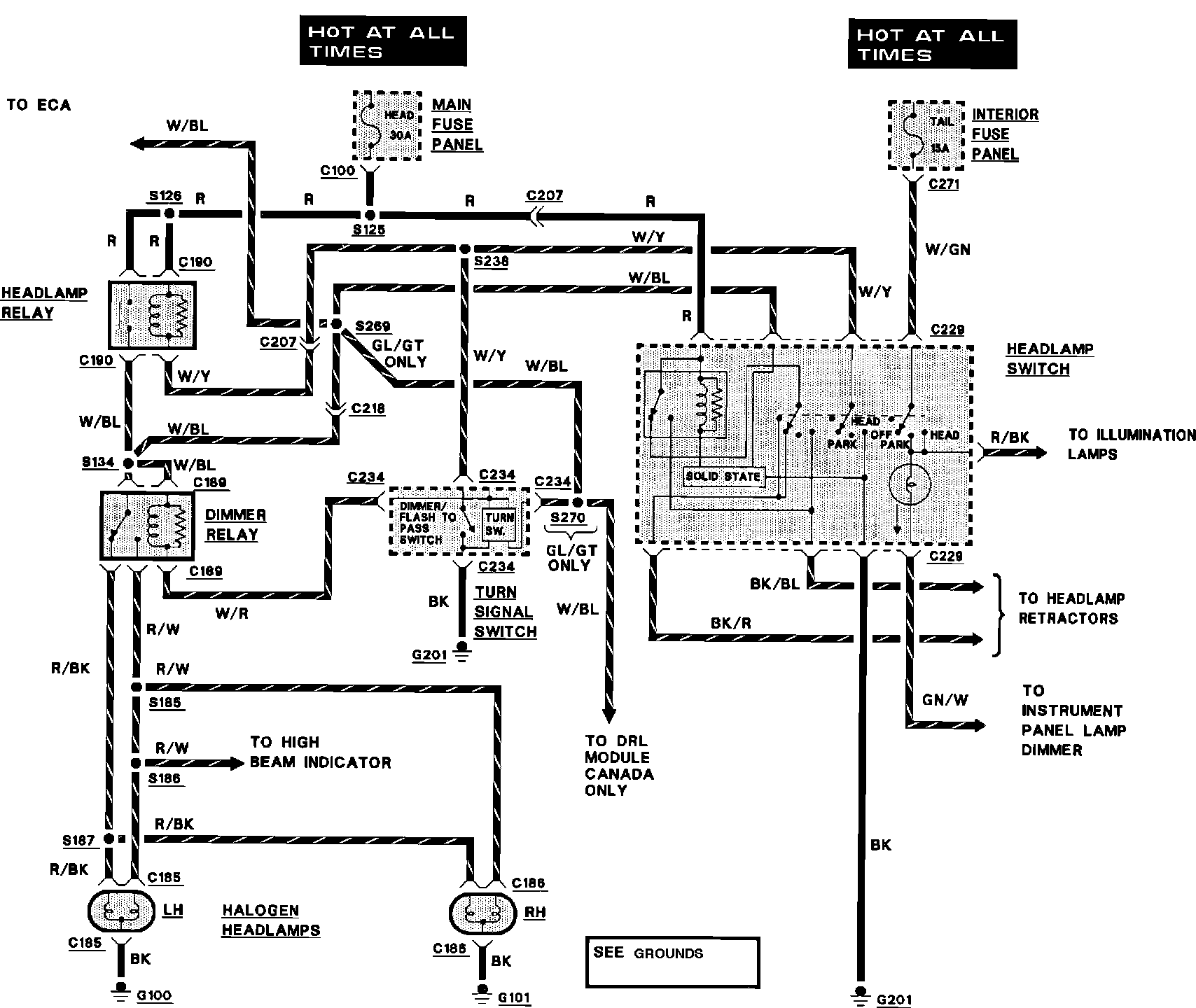

Headlamps (W/O Headlamp Checker):

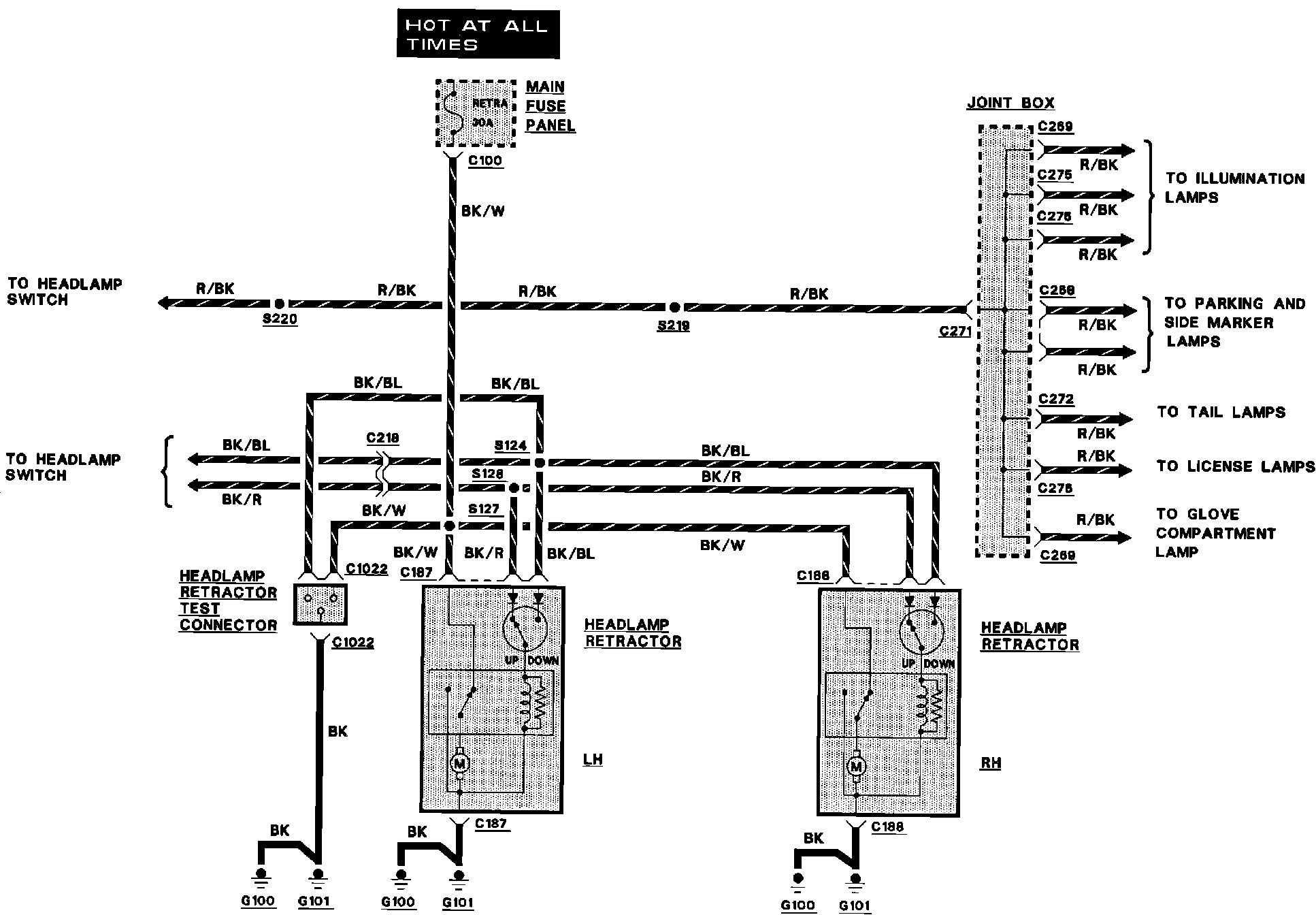

Headlamps:
