Home >> Ford >> 1991 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

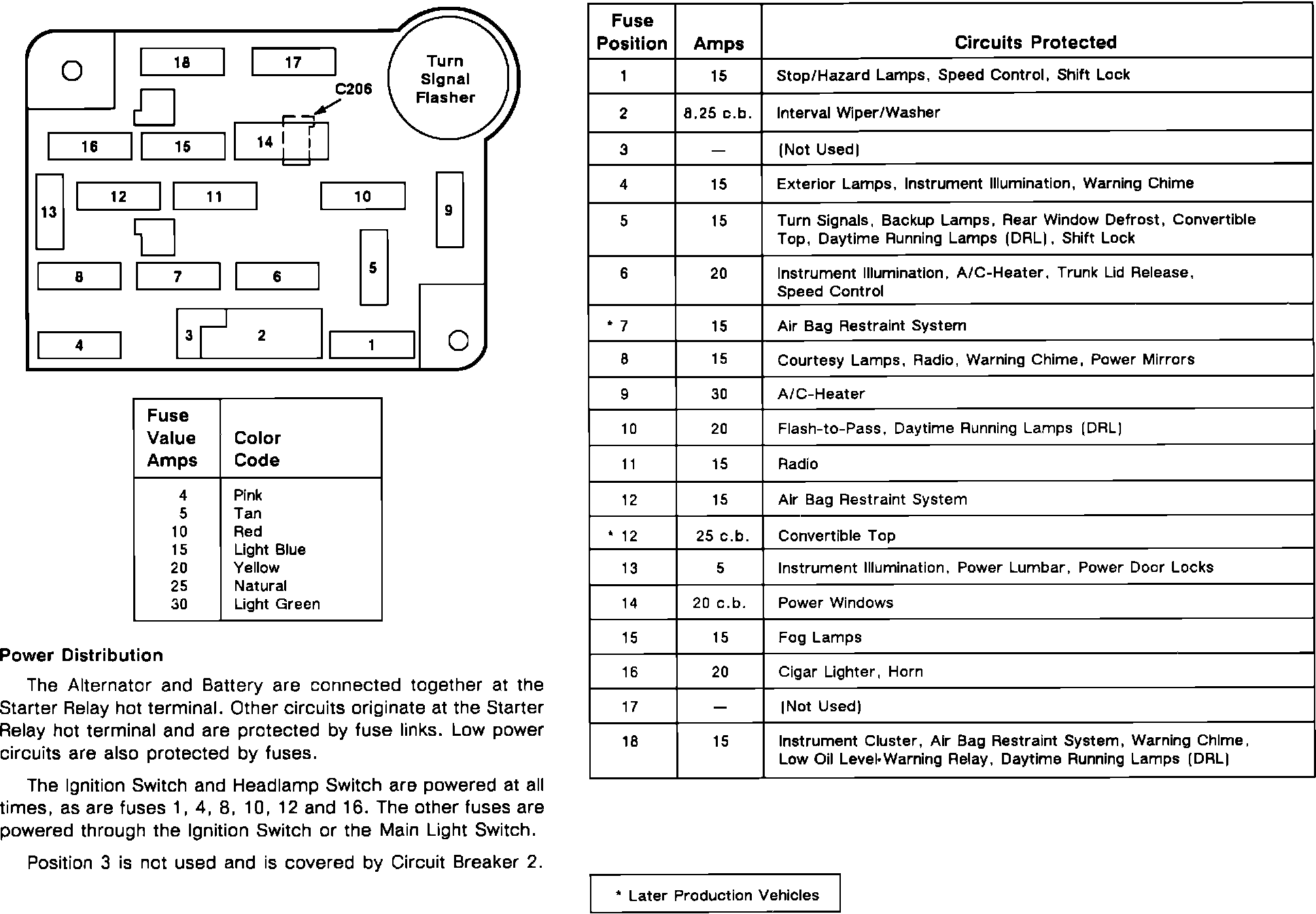

Circuit Protection/Fuse Panel:
