Home >> Ford >> 1991 >> LTD Wagon V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

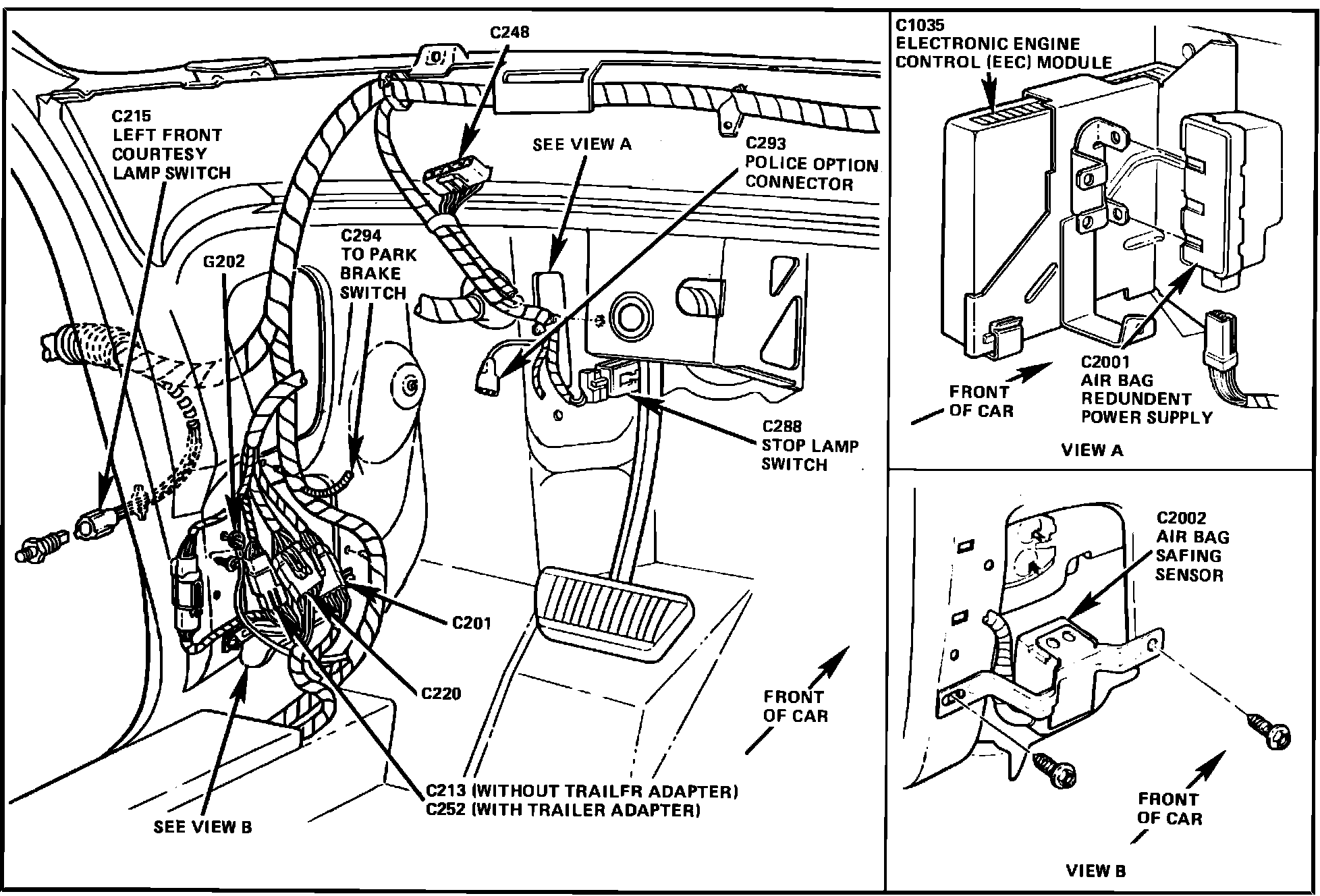

Behind Left Side Of Instrument Panel:

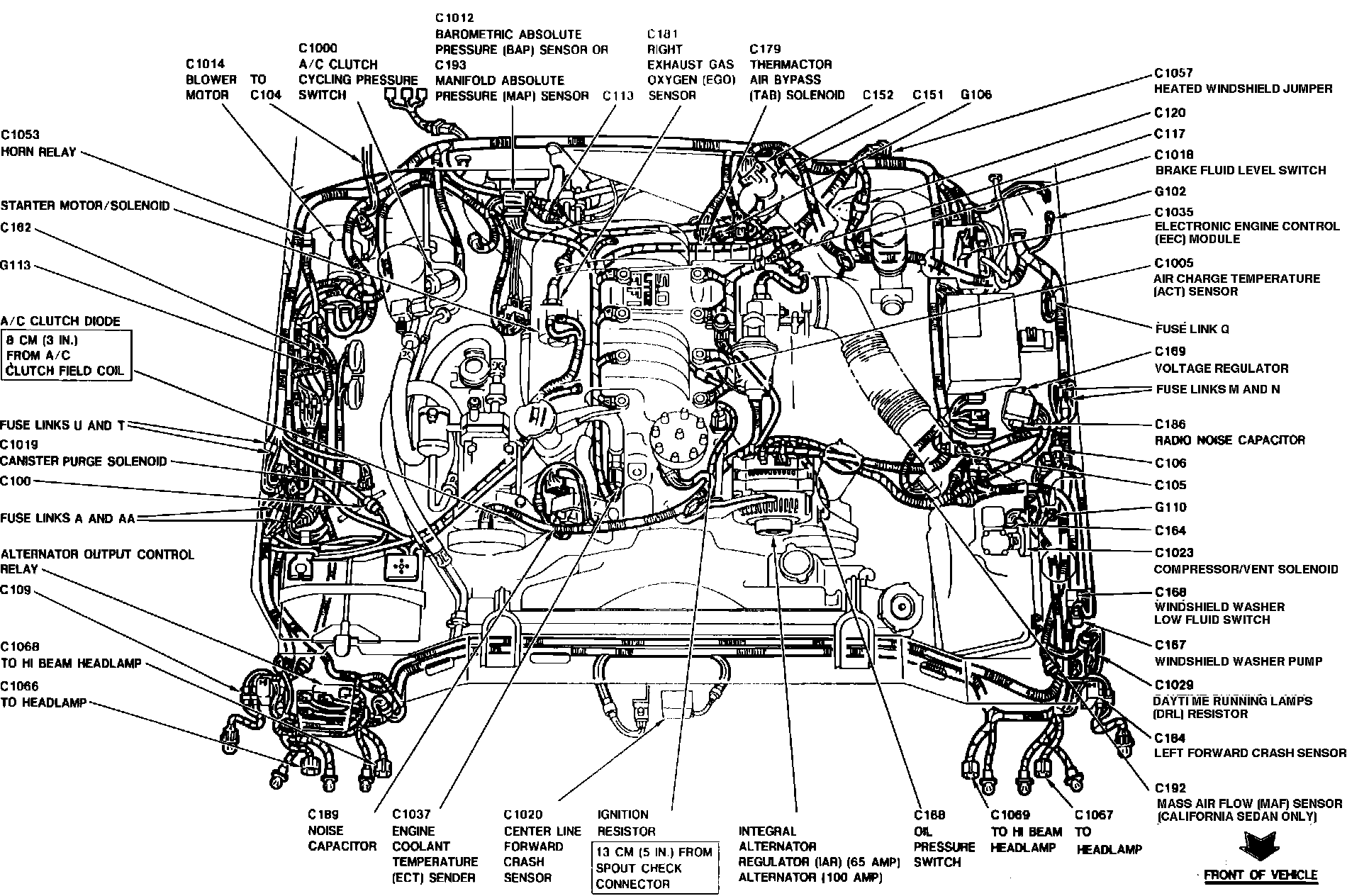

Component Locations:
