Home >> Ford >> 1991 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> Engine Control Systems - Diagnosis Revision >> 4EAT Transaxle >> Pinpoint Test >> Solenoid Controlled By Power - All 4EAT >> Note, and Test Pin Schematic

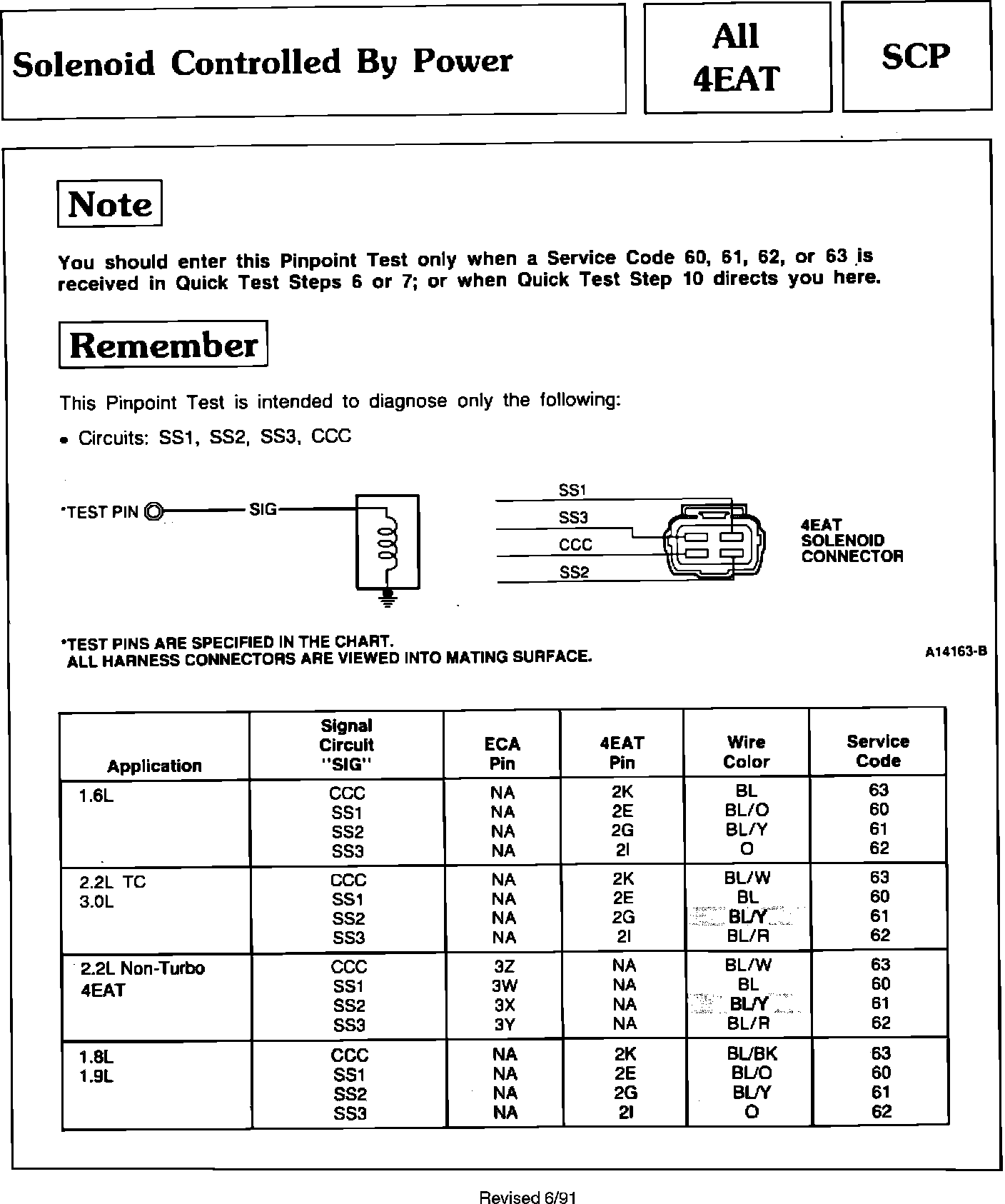

Note, and Test Pin Schematic
