Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Accessories and Optional Equipment
>>
Relay Module
>>
Technical Service Bulletins
>>
Integrated Relay Control Module Diagnosis - Revision
>>

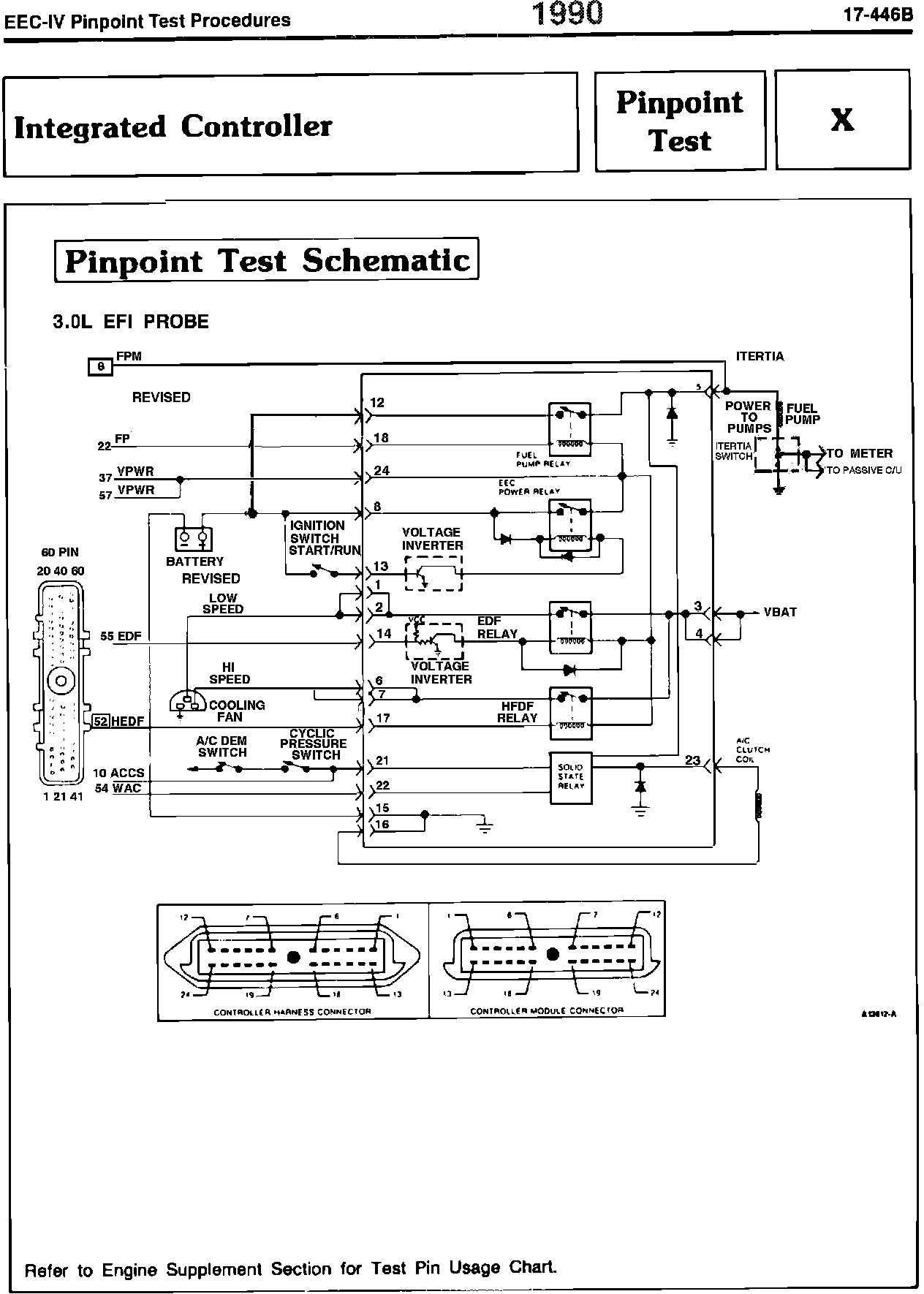

Pinpoint X - Schematic 3.0L EFI Probe Test
Pinpoint X - Schematic 3.0L EFI Probe Test
