Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Accessories and Optional Equipment
>>
Relay Module
>>
Technical Service Bulletins
>>
Integrated Relay Control Module Diagnosis - Revision
>>

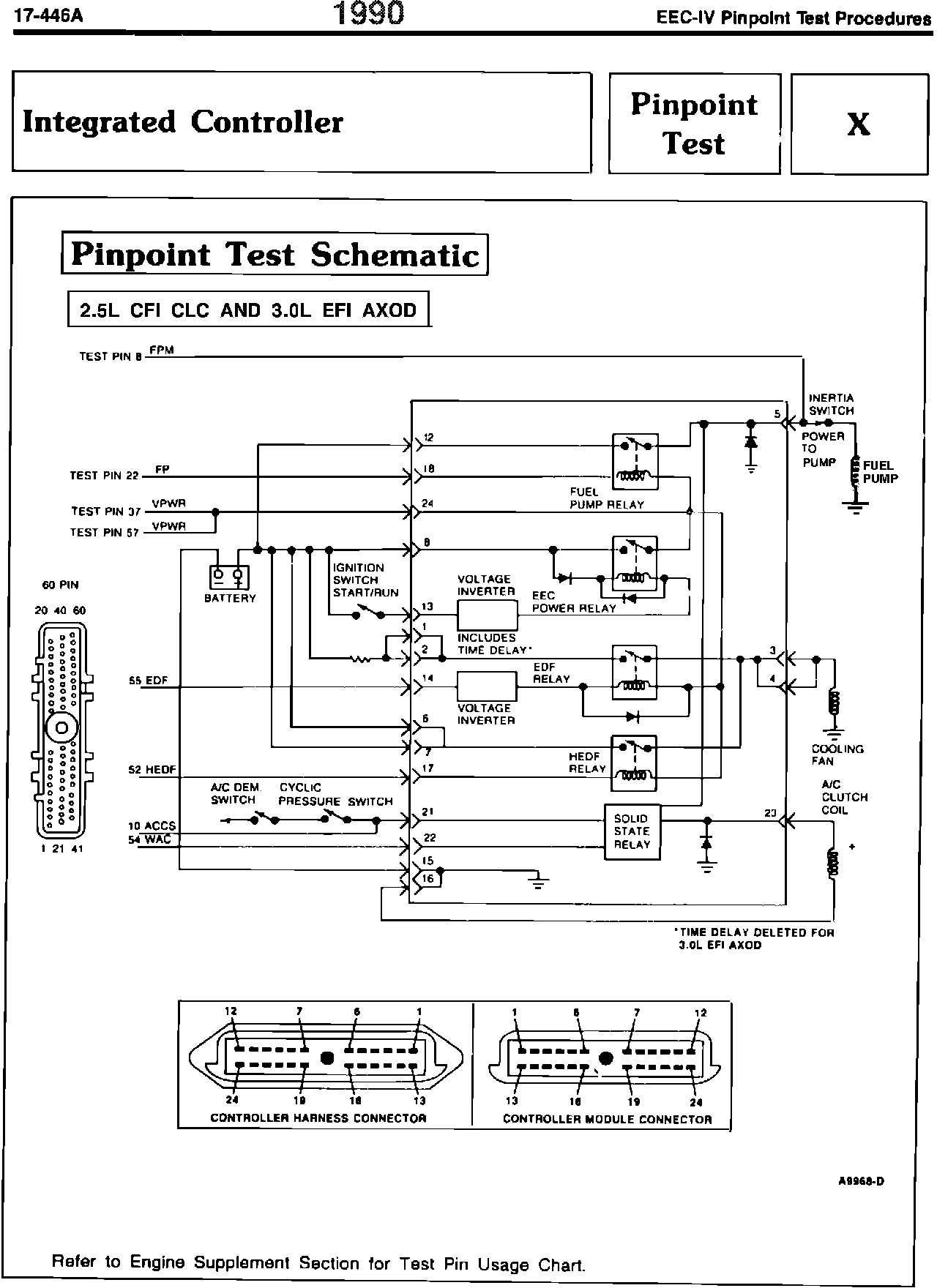

Pinpoint X - Schematic 2.5L CFI, Clc and EFI AXOD Test
Pinpoint X - Schematic 2.5L CFI, Clc and EFI AXOD Test
