Home
>>
Ford
>>
1990
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Normal Scan Data Values (Includes PIDs)
>>
Diagnostic Reference Values
>>
With Mass Air System
With Mass Air System

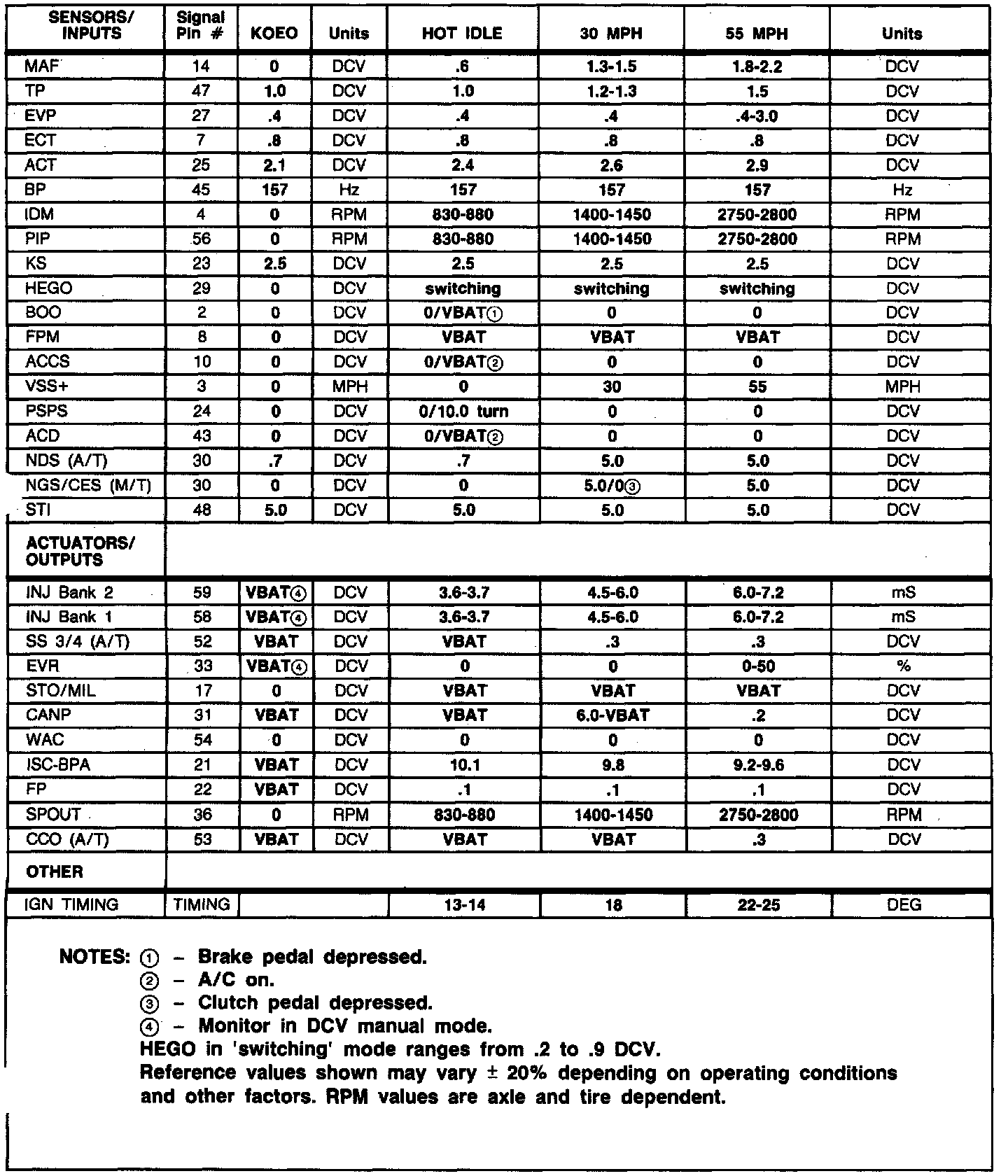

Diagnostic Reference Values:
