6.0B - Switch Monitor Test Result Chart
6.0B - Switch Monitor Test Result Chart

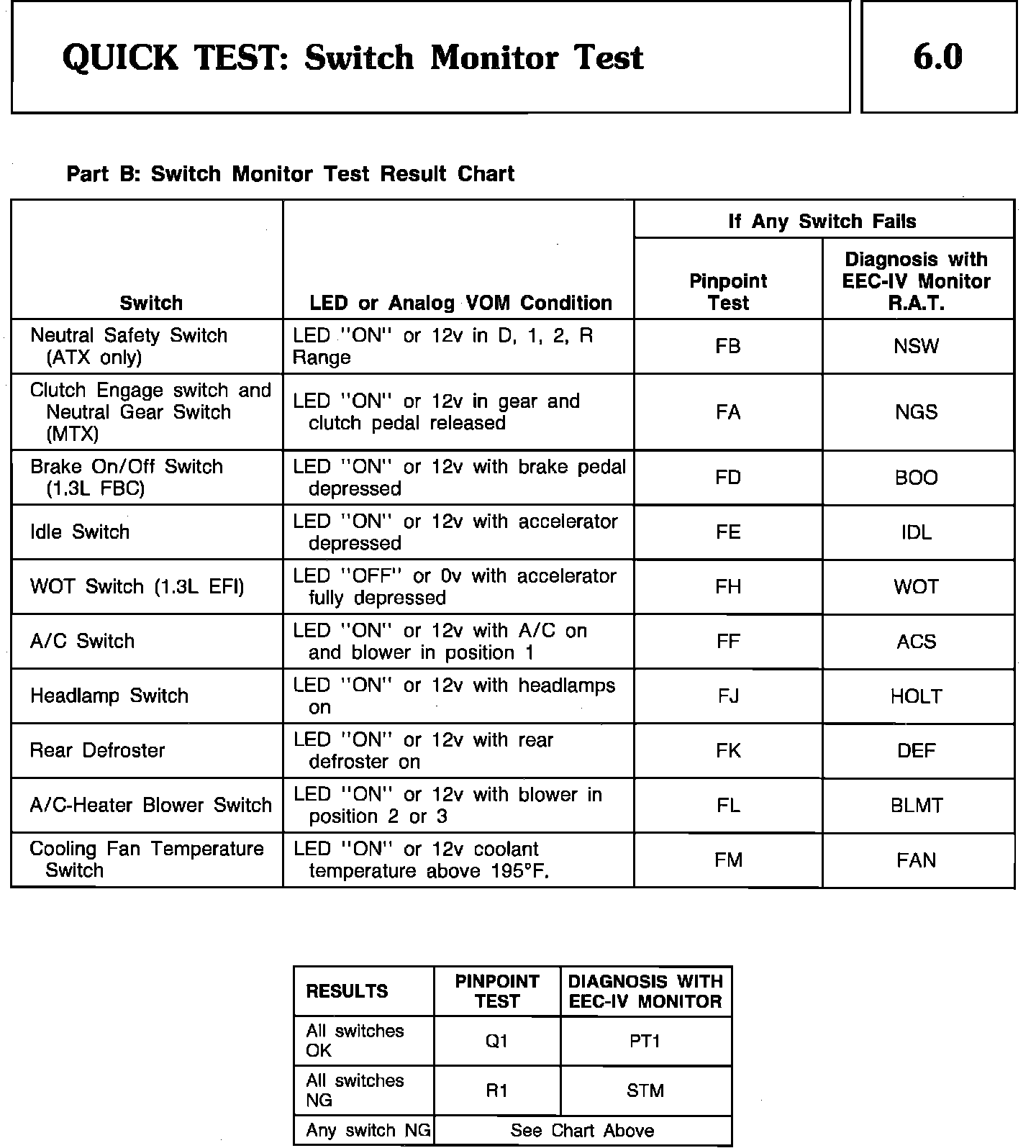

Quick Test 6.0B - Switch Monitor Test Result Chart:
